It's what's INSIDE that counts.

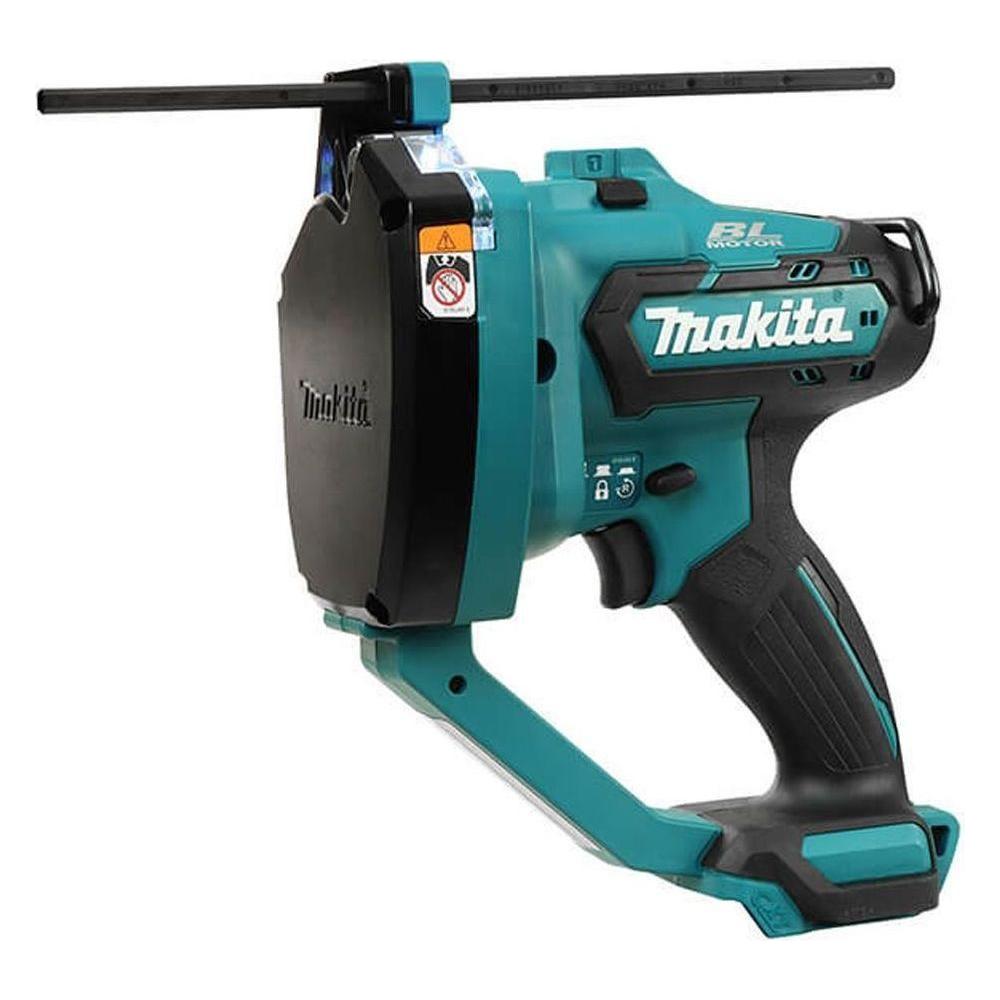

SC103DZ – 20mm (13/16″) Cordless Threaded Rod Cutter 12Vmax CXT™ Li-Ion [Bare Tool]
- More Compact & High Productivity
- Cuts up to M10
- Lightweight design for increased maneuverability
- Excellent tool balance allows for operation with less wrist fatigue
- BL motor with high power to weight and size ratio
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life

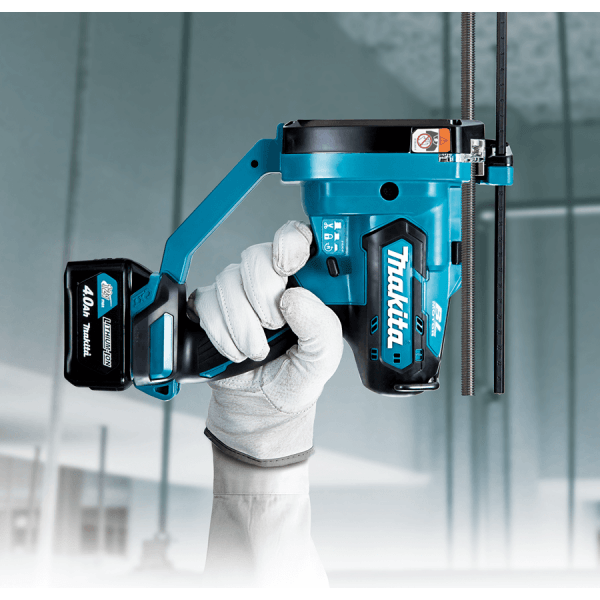

- Superior handling in overhead applications
- Performs stable cutting even on the floor
- Compatible with the same blades for model DSC102
- Both fixed blade and movable blade are double-edged and can be reversed as “new” ones for longer blade life
- Burr-free cuts allow for easy nut tightening
- Automatic blade stop mechanism allows operator to quickly resume operation by letting the movable blades stop at its full open position
- Rod guide adjustable for precise cutting
- LED job light for increased visibility
- Ergonomically designed handle with sure grip
- Reversing switch for easy blade release from a rod
- Hook is convenient for hanging the tool temporarily
- Electric brake for maximum productivity and increased operator safety
- Battery protection circuit protects against overloading, over-discharging and over-heating
Specifications:
Max Cutting Capacity Mild Steel: M10
Stainless Steel: W3/8
Min. Cutting Length 20 mm (13/16″)
Max Output 280 W
Work Amount (pcs) W3/8 (Mild Steel) w/ BL1041B: 700
W3/8 (Stainless) w/BL1041B: 550
M10 (Mild Steel) w/BL1041B: 550
Vibration Level Cutting Threaded Stainless Steel Rod (Rod Size W3/8): TBA m/s² or less
Vibration K Factor Cutting Threaded Stainless Steel Rod (Rod Size W3/8): TBA m/s²
Sound Pressure Level TBA dB(A)
Noise K Factor TBA dB(A)
Dimensions (L x W x H) w/ BL1041B: 180x107x289 mm (7-1/8″x4-1/4″x11-3/8″)
Net weight 2.7 – 2.8 kg (6.0 – 6.2 lbs.)
Inclusions:
Cutter Blade, Hex socket head bolt, Blade Cover, Depth Gauge, Thumb screw, Hex Wrench
Lifetime Service Warranty
