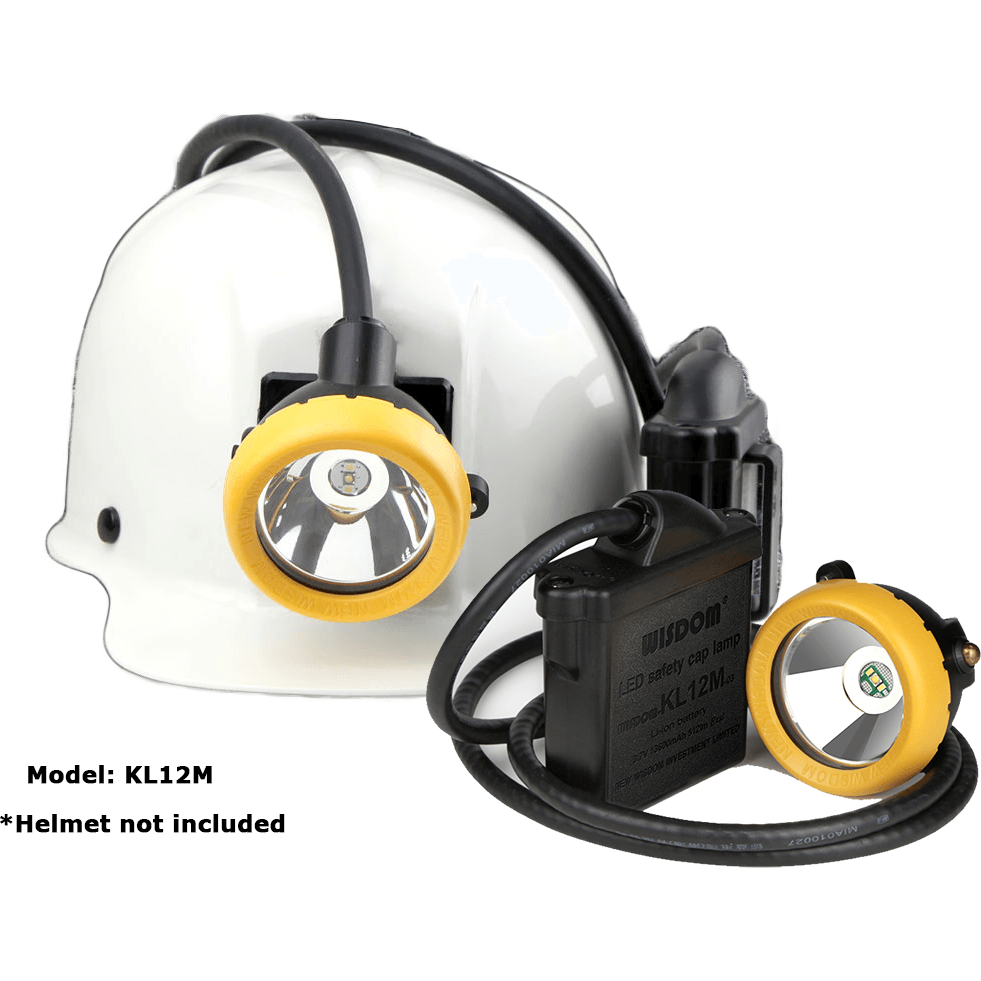

Wisdom KL12M Miner's LED Cap Corded Mining Lamp / Head Light (with NWB 25 Charger)
Corded miner's cap lamp
- Rechargeable.
- Explosion-proof, ATEX M1.
- Water-proof, IP68.
|
For industrial mining lighting
Professional LED miner's cap lamp, brightness of 28000 lux, 13 hours run-time |
28000Lux brightness!
Bright the underground mine! |
|
14000mAh high capacity Li-ion battery KL12M High capacity Li-ion battery make sure 13hours run-time for option |
IP68 water proof certificated diving to more than 20meters!
IP68 the highest level standard waterproof certification for connectors. |
|
Charge full with 5 hours!
Special charger designed for KL12M Miner's Cap Lamp rapid and |
KL12M
1.4 and 1.65 m cable for option, standard version, super bright and super long run-time versions. |
Specifications
| Model | KL12M Standard |
| Rated capacity | 14000 mAh |
| Rated voltage | 3.7 V |
| Continuous discharging time | 13 h |
| Main light LED working voltage | 3.0 V |
| Main light LED working current | 1080 mA |
| Main light power | 3.24 W |
| Main light luminous flux | 512 lm |
| Lamp lighting degree (Initial lighting degree in 1 m) | 28000 lx |
| Main light life span | 50000 h |
| Auxiliary light power | 0.4 W |
| Auxiliary light life span | 40000 h |
| Short circuit protect time | < 320 μs |
| Life span of the battery (Recharges) | 1200 cycles (In reasonable working condition) |
| Charging time | |
| Dimensions | 94 x 36 x 103 mm; 3.7 x 1.4 x 4.1 in (Size of the battery box) |
| Main cable | 1.4 / 1.65 m; 4.59 / 5.41 ft |
| Weight | 550 g; 19.40 oz |
