Precision is our Profession
Mitutoyo 511-711-20 2-Point Inside Measuring Instrument / Bore Gage 18-35mm
With Standard Dial Indicator

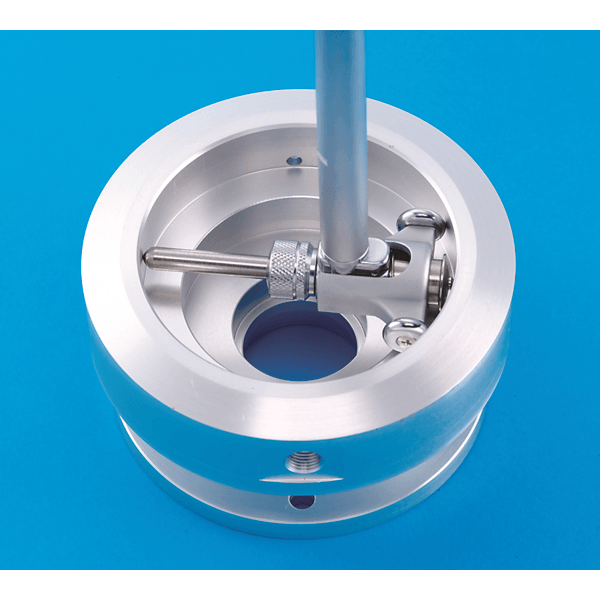

This is a short range application Bore Gauge Set that automatically self-centres via a centring bridge and offers you the following benefits:

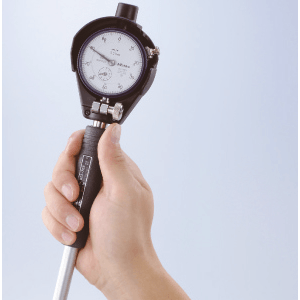

- It reduces the influence of heat from the operator's hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
- Interchangeable washers (0,5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
- Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
Inch-Metric: |
Metric
|
Range: |
18 - 35 mm
|
Graduation: |
0.01 mm
|
Stroke of contact point: |
1.2 mm
|
Measuring depth: |
100 mm
|
No. Dial Indicator: |
2046AB
|
Number of anvils: |
9
|
Accuracy: |
2 µm
|
Repeatability: |
0,5 µm
|
Delivered: |

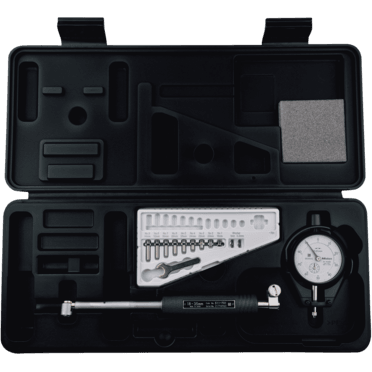

Including box, dial indicator, plastic cover for indicator
|
Digital/Analog: |
Analog
|
Mass: |
330 g
|
