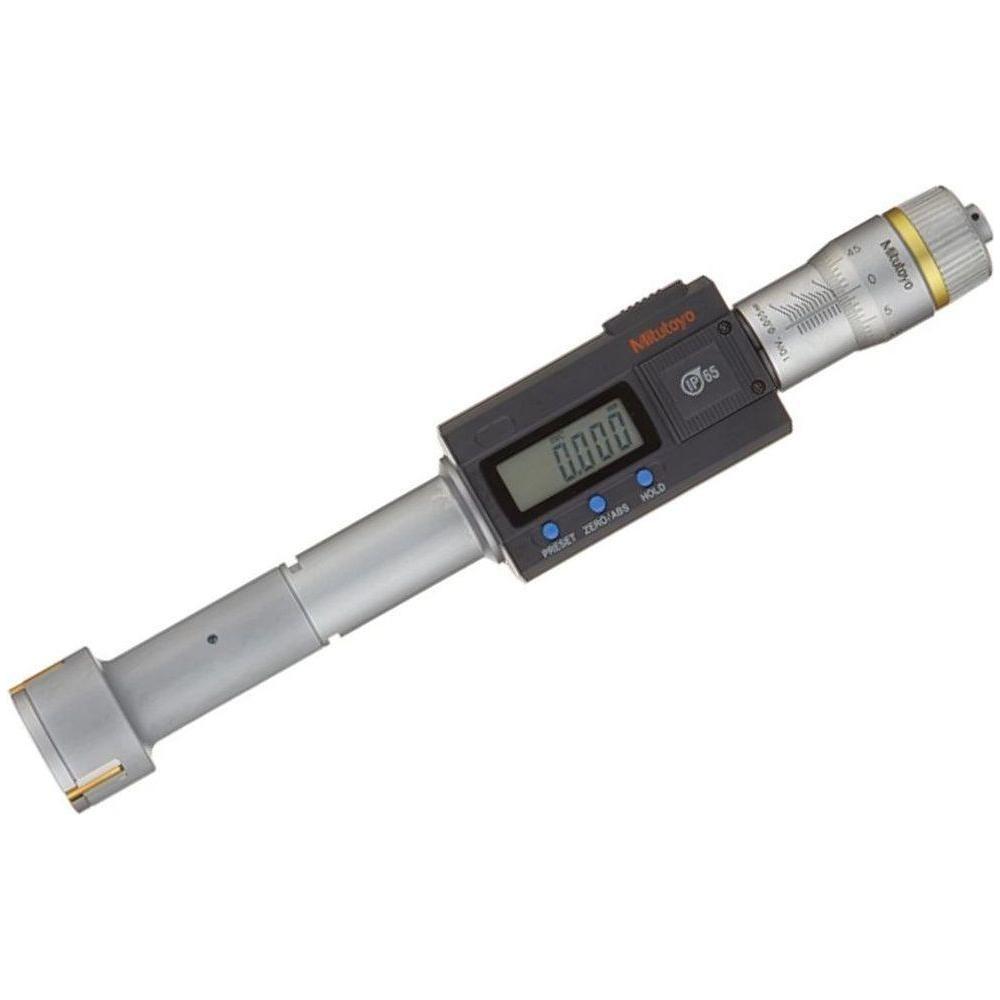

Mitutoyo Digimatic Holtest, Series 468 (three point internal micrometer)

 Precision is our Profession

Mitutoyo Digimatic Holtest, Series 468 (three point internal micrometer)

• TiN-coated measuring contact points provide excellent durability and impact
  resistance and allow the instrument to measure to the bottom of a blind hole
  ( up to 100mm / 4”models).
• Large LCD readout.
• Functions available: Presetting,
• Zero/ABS, Auto power On/Off,
• Data hold, Data output, Error alarm,
• Battery replacement alarm.
• With Ratchet Stop for constant force.
• Measure deep holes by attaching an
  extension rod (optional).
• Setting rings for origin point setting are
  optional.
• Supplied in fitted plastic case up to
  100mm / 4”. Over 100mm / 4” supplied in wooden case.

Technical Data

• Accuracy: Refer to the list of specifications.
• Resolution: 0.001mm or .00005"/0.001mm
• (over 4 - 5" models: .0001"/0.001mm)
• Contact point: TiN coating
• Measuring method: Three-point method
• Display: LCD
• Battery: SR44 (2 pcs.), 938882
• Battery life: Approx. 1.2 years under normal use
• Function
• Zero/ABS, Auto Power On/Off, Data hold, Data output,
• Preset, inch/mm conversion (on inch/metric models only)
• Alarm: Low voltage, Counting value composition error
