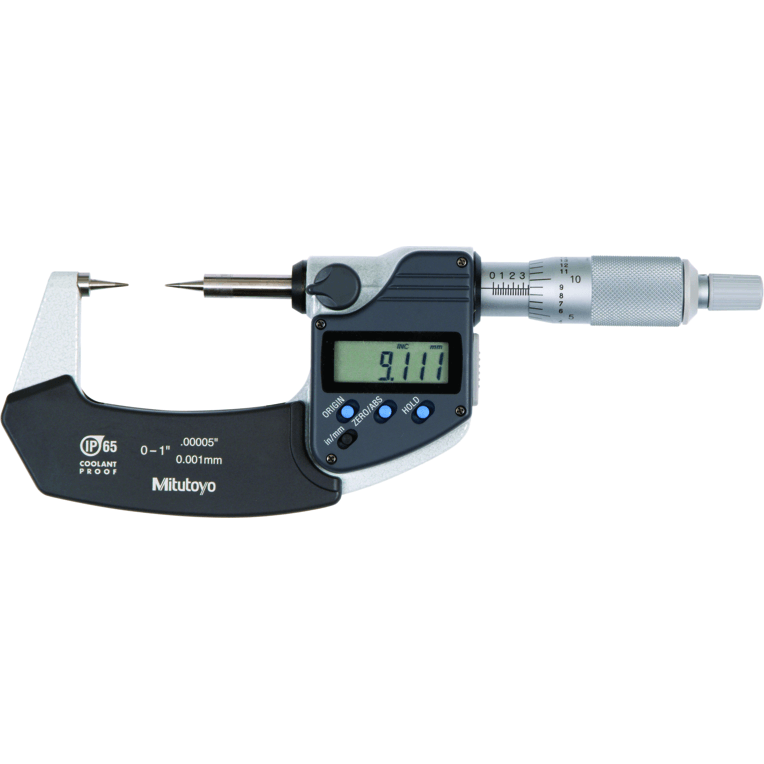

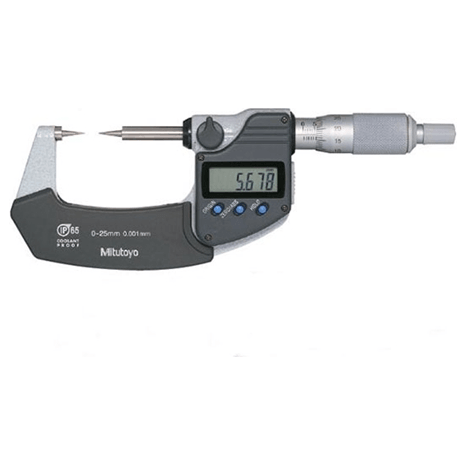

Mitutoyo Digimatic Point Micrometer Series 342

 Precision is our Profession

Mitutoyo Digimatic Depth Micrometer Series 329

• IP65 water/dust protection (Series 342).
• Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to-reach dimensions.
• 15 degree and 30 degree measuring points are available.
• Non-slip grip finish (digital models).
• The measuring points have approximately 0.3mm / .012” radius.
• With ratchet stop for constant force.
• With SPC output (Series 342).
• With digit counter (Series 142).
• With a standard bar except 0 - 1” and 0 - 25mm model.
• Supplied in fitted plastic case.

Technical Data

Accuracy: Refer to the list of specifications.
Resolution*: .00005"/0.001mm or 0.001mm
Graduation**: .001” or 0.01mm
Display*: LCD
Battery*: SR44 (1 pc.), 938882
Battery life*: Approx. 2.4 years under normal use
Dust/Water protection level*: IP65
*Digital models **Analog models

Function of Digital Model

Origin-set, Zero / ABS, Data hold,
inch/mm conversion (on inch/metric models only)
Function lock
Alarm: Low voltage, Counting value composition error
