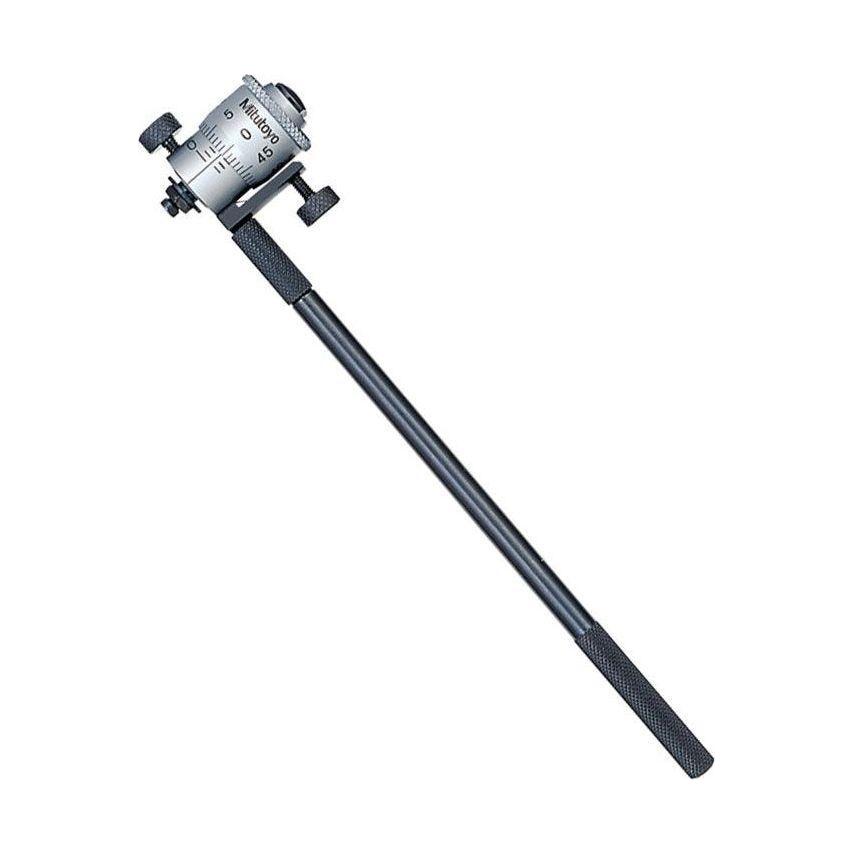

Mitutoyo Inside Micrometer, Series 141 (Interchangeable rod type)

 Precision is our Profession

Mitutoyo Inside Micrometer, Series 141 (Interchangeable rod type)

• Wide range of ID measurements with interchangeable rods.
• Each interchangeable rod is marked with its measuring range.
• The sizes of interchangeable rods can be adjusted with spacing collars.
• Both micrometer head and furnished rods are satin-chrome finished throughout.
• Supplied in fitted plastic case. Over 1000mm / 40” supplied in wooden case.

Technical Data

Metric Model
Accuracy: ±(6+L/50)μm
L=Maximum measuring length (mm)
Fraction rounded up
Inch Model
Accuracy: ±{.00024+ (.00004xR/2)}"
R=Maximum measuring length (inch)
Fraction rounded up
Graduation: 0.01mm or .001"
