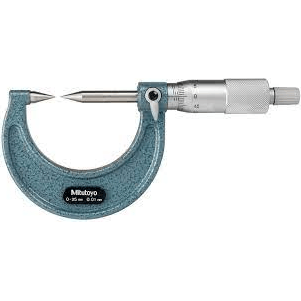

Mitutoyo Point Micrometer, Series 112

 Precision is our Profession

Mitutoyo Point Micrometer, Series 112

• Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to-reach dimensions.
• 15 degree and 30 degree measuring points
  are available.
• Non-slip grip finish (digital models).
• The measuring points have approximately
  0.3mm / .012” radius.
• With ratchet stop for constant force.
• With a standard bar except 0 - 1”
  and 0 - 25mm model.
• Supplied in fitted plastic case.

Technical Data

• Accuracy: Refer to the list of specifications.
• Resolution*: .00005"/0.001mm or 0.001mm
• Graduation**: .001” or 0.01mm
• Display*: LCD
• Battery*: SR44 (1 pc.), 938882
• Battery life*: Approx. 2.4 years under normal use
• Dust/Water protection level*: IP65
• *Digital models **Analog models

Function of Digital Model

• Origin-set, Zero / ABS, Data hold,
• inch/mm conversion (on inch/metric models only)
• Function lock
• Alarm: Low voltage, Counting value composition error
