Mitutoyo "Uni-Mike" Uni Micrometer, Series 117, (interchangeable anvil)

 Precision is our Profession

Mitutoyo Uni Micrometer, Series 117, (interchangeable anvil)

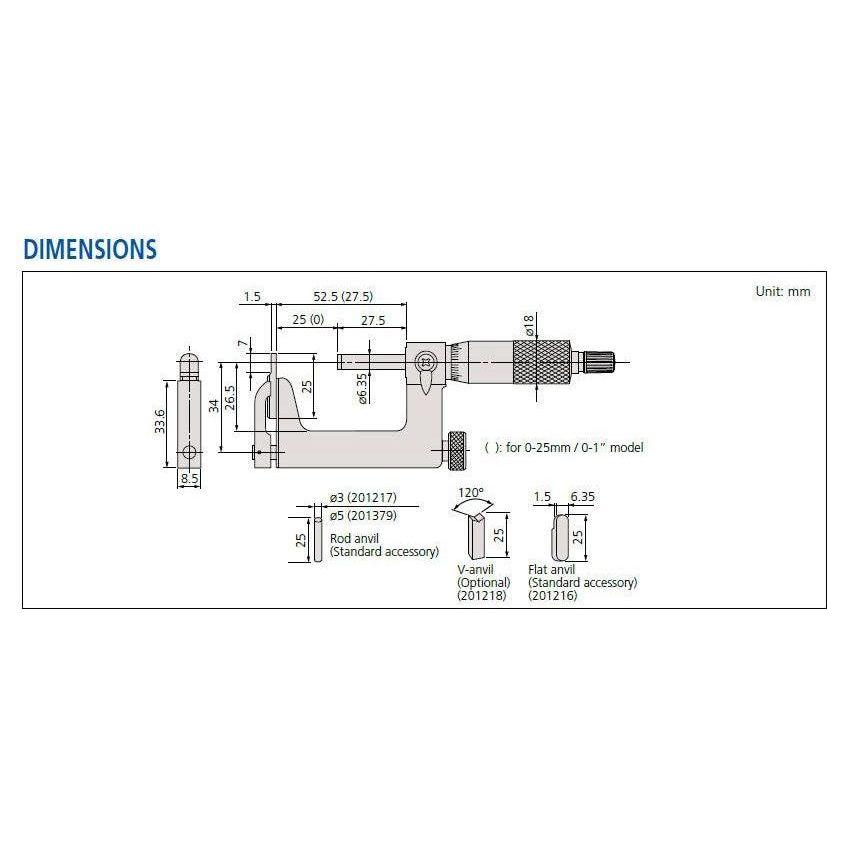

• Measures tubing thickness, shoulderedge distance, rivet head height, etc. with interchangeable anvils (flat anvil, rod anvil, V-anvil).
• Supplied with Flat Anvil (201216) and Rod
  Anvil: .118”/ø3mm dia. rod anvil (201217)
  for 0-1”/0-25mm models, .197”/ø5mm
  (201379) for 1-2” / 25-50mm model.

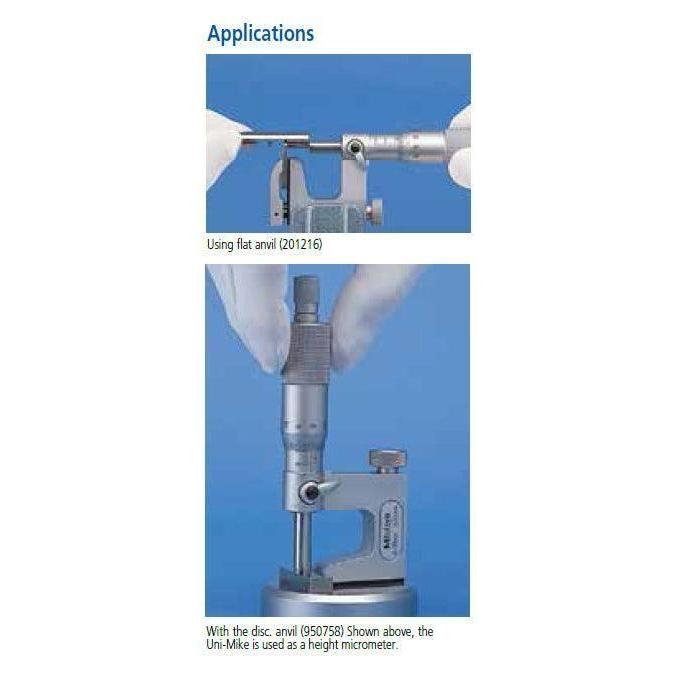

• With special Disk Anvils. The Uni-Mike is
  used as a height micrometer. The disks
  have a lapped, mirror surface.
  • With a standard bar except 0 -1” and
  0-25mm model.
• Supplied in fitted plastic case.
• Non-slip grip finish (digital models)

Technical Data

Accuracy: Refer to the list of specifications.
Resolution*: .00005"/0.001mm or 0.001mm
Graduation**: .0001” or 0.01mm
Spindle face: Carbide tipped
Display*: LCD
Battery*: SR44 (1 pc.), 938882
Battery life*: Approx. 2.4 years under normal use
Dust/Water protection level*: IP65
*Digital models **Analog models

Function of Digital Model

Origin-set, Zero / ABS, Data hold, Data output,
inch/mm conversion (on inch/metric models only)
Function Lock
Alarm: Low voltage, Counting value composition error
