Mitutoyo "Uni-Mike" Uni Micrometer, Series 117, (interchangeable anvil)

₱12,600.00
-
 Precision is our Profession

Mitutoyo Uni Micrometer, Series 117, (interchangeable anvil)

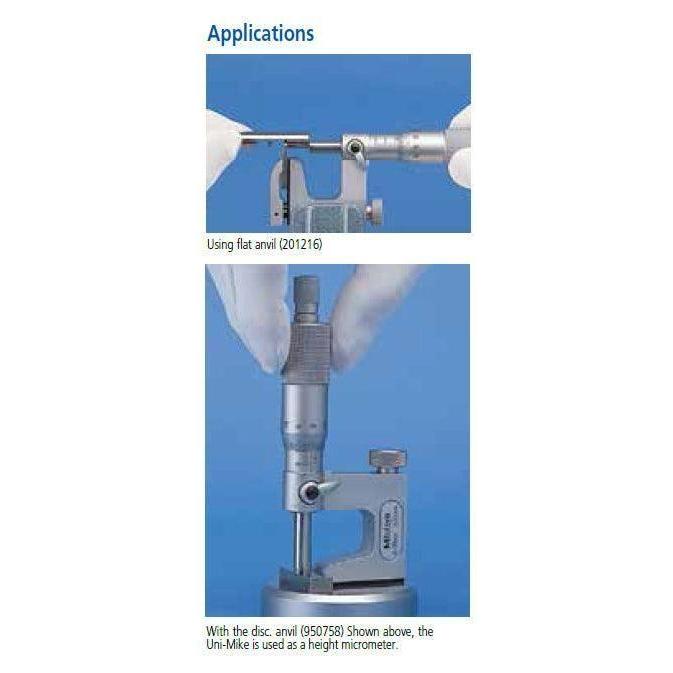

  • Measures tubing thickness, shoulderedge distance, rivet head height, etc. with interchangeable anvils (flat anvil, rod anvil, V-anvil).

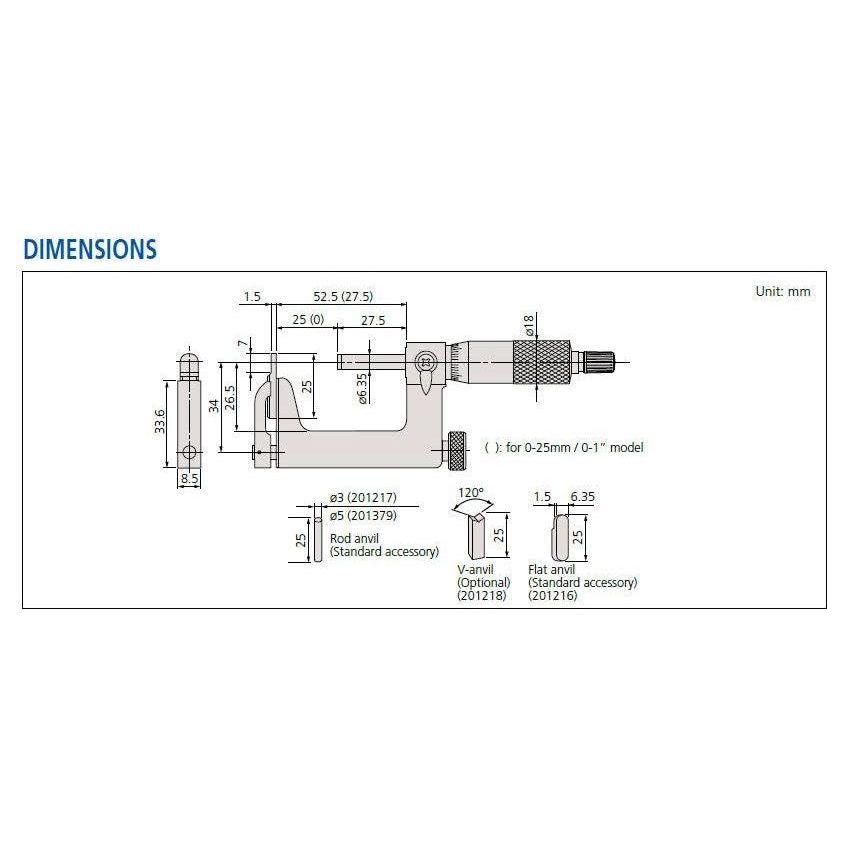

  • Supplied with Flat Anvil (201216) and Rod
    Anvil: .118”/ø3mm dia. rod anvil (201217)
    for 0-1”/0-25mm models, .197”/ø5mm
    (201379) for 1-2” / 25-50mm model.
  • With special Disk Anvils. The Uni-Mike is
    used as a height micrometer. The disks
    have a lapped, mirror surface.
    • With a standard bar except 0 -1” and
    0-25mm model.
  • Supplied in fitted plastic case.
  • Non-slip grip finish (digital models)

Technical Data

Accuracy: Refer to the list of specifications.
Resolution*: .00005"/0.001mm or 0.001mm
Graduation**: .0001” or 0.01mm
Spindle face: Carbide tipped
Display*: LCD
Battery*: SR44 (1 pc.), 938882
Battery life*: Approx. 2.4 years under normal use
Dust/Water protection level*: IP65
*Digital models **Analog models

Function of Digital Model

Origin-set, Zero / ABS, Data hold, Data output,
inch/mm conversion (on inch/metric models only)
Function Lock
Alarm: Low voltage, Counting value composition error

Uni Micrometer, Series 117, (interchangeable anvil)
Code Model Range Graduation Price
Metric
117-101 ACM-25 0-25mm 0.01mm (Flange:6.35) 12,600.00
117-102 ACM-50 25-50mm 0.01mm (Flange:12.7) 15,100.00
Inches
117-107 ACM-1V 0-1" 0.0001" 13,300.00
117-108 ACM-2V 1-2" 0.0001" 15,700.00
