Adelino AL(BL)Vertical Centrifugal Multi Stage Pump (Fire Pump Series)

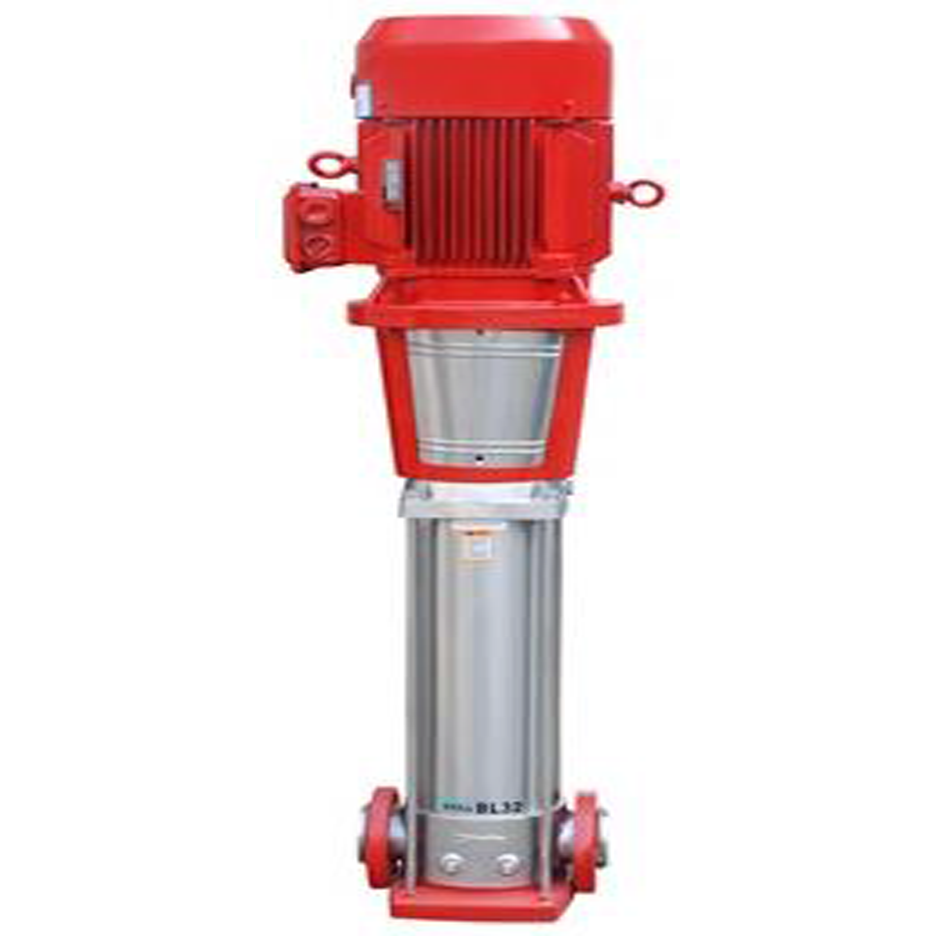

Vertical multi-stage centrifugal pump, IP55 & class F standard IE2 motor, all overflow parts are made of SS304 stainless steel, standard cast iron movable flange.
Model
|
Power | Max Flow | Max Head | Max Range |
inlet/Outlet Diameter (mm)
|
Price
|
||
HP | KW | Rate Current | m³/hr | (M) | M | |||
AL16-2 (BL16-2) | 5.5 | 4 | 220V,60Hz, Three Phase | 24 | 38.00 | 27~38 | 50 | 78,000.00 |
AL16-4 (BL16-4) | 10 | 7.5 | 220V,60Hz, Three Phase | 24 | 76 | 54~76 | 50 | 102,000.00 |
AL20-5 (BL20-5) | 15 | 11 | 220V,60Hz, Three Phase | 32 | 98 | 64~98 | 50 | 157,000.00 |
AL32-2 (BL32-2) | 10 | 7.5 | 220V,60Hz, Three Phase | 44 | 52 | 3~52 | 65 | 179,000.00 |
AL32-4-2 (BL32-4-2) | 15 | 11 | 220V,60Hz, Three Phase | 44 | 94 | 56~94 | 65 | 263,000.00 |
