Note: Blade not Included

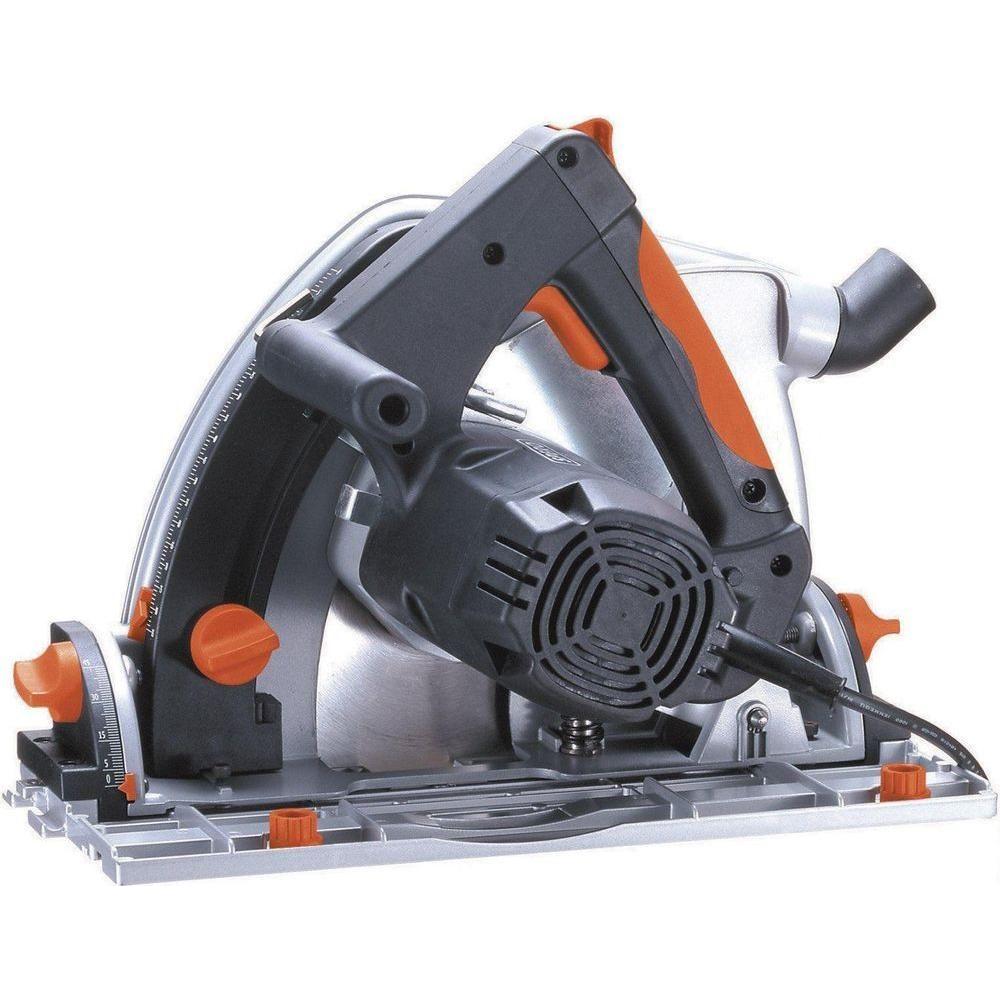

- 230mm plunge cut saws with 85mm depth of cut respectively.

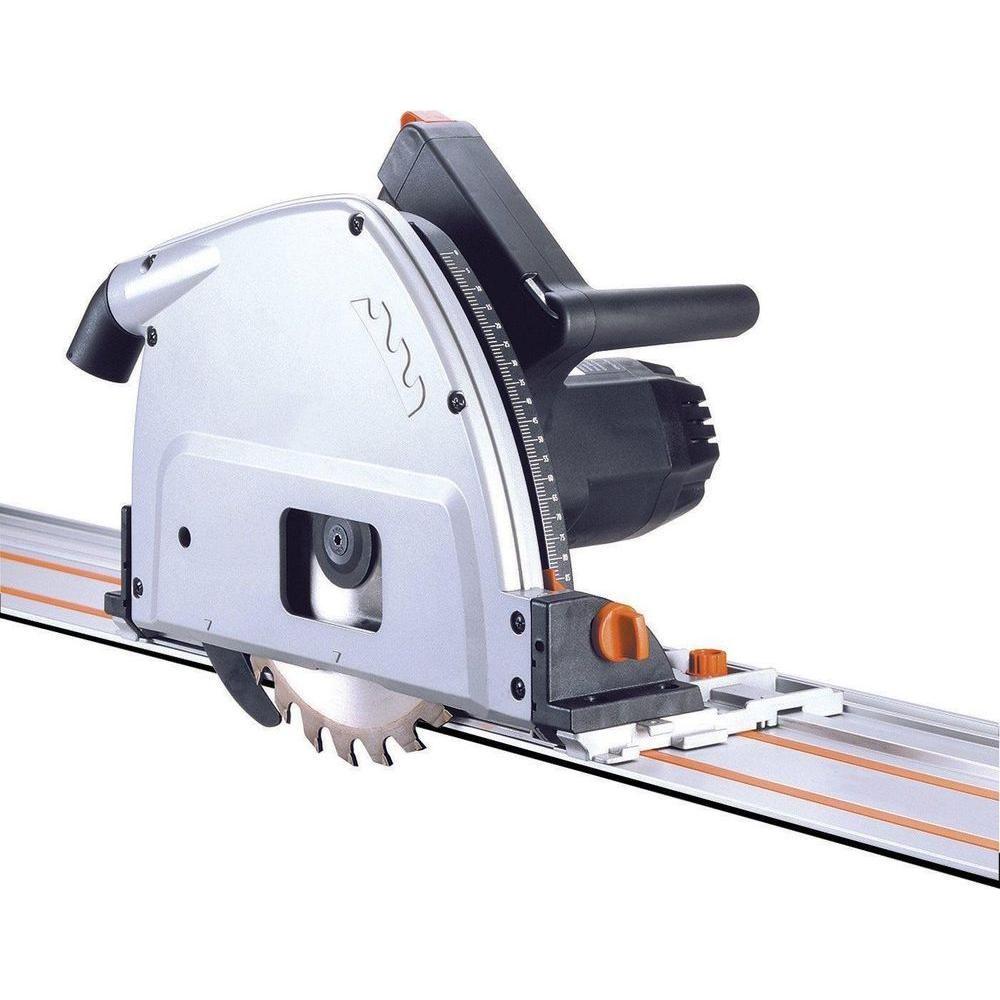

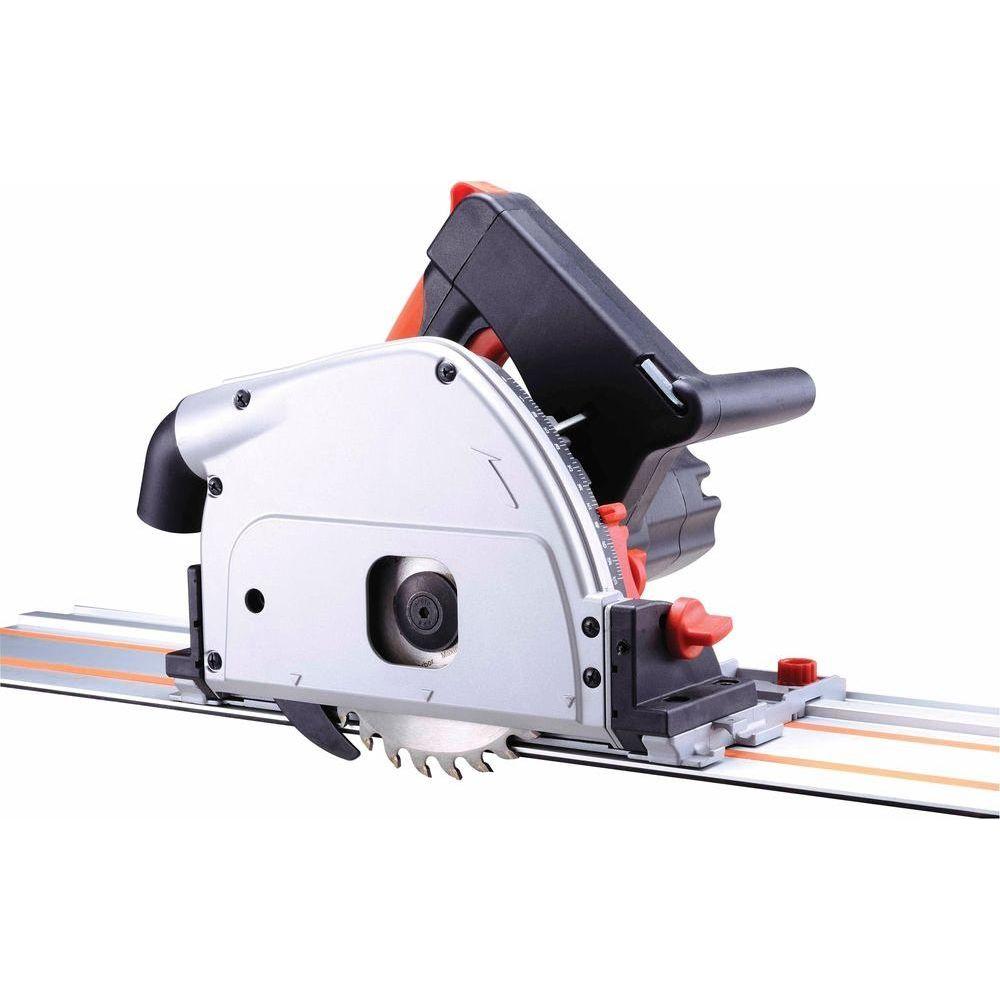

- Outstanding accuracy and control when used in conjunction with the optional guide rail.
Specifications
| Model | DS2300 |
|---|---|
| Power Input | 1600W |
| Voltage | 110-120V~ 50-60Hz, 220-240V~ 50-60Hz |
| No Load Min-1 | 5000 |
| Bevel Capability | 0 - 45 deg. |
| Max. Blade Diameter | 230mm (9 in.) |
| Available Arbor Hole Diameters* | 30mm, 25.4mm (1 in.), 20mm |
| Max. Cutting Straight | 85mm (3-3/8") |
| Depth 45 Deg. Bevel | 60mm (2-3/8") |
| Soft Start & Overload Protection | With |
| Dimensions(LxWxH) | 428mm x 246mm x 311mm |
| Net Weight | 7.7 kg (16.98 Lbs) |
6 Months Service Warranty
