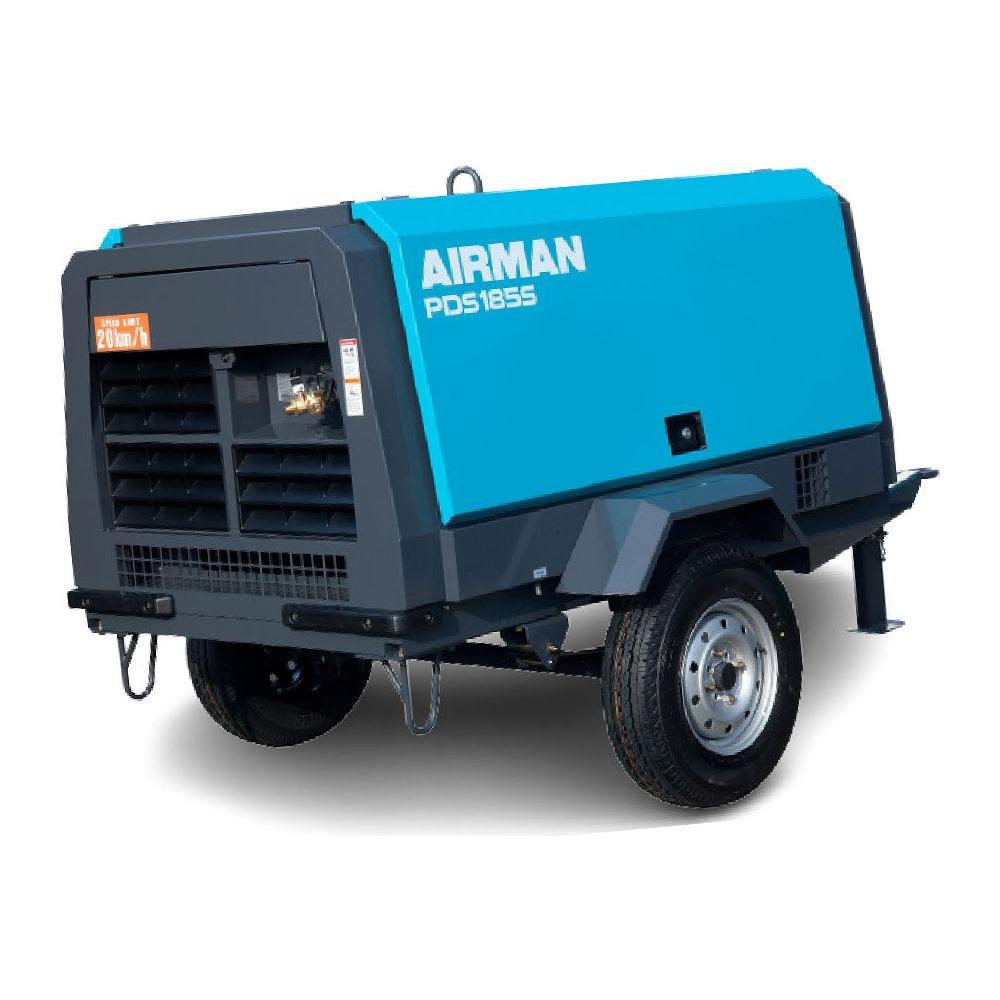

Airman PDS185S Portable Air compressor

Airman PDS185S Portable Air compressor

• • Light Weight & Compact
  • Low Emission
  • Pro Environment
  • Excellent fuel consumption
  • low noise

• Engine Type: Rotary twin screw, single, Oil-cooled
• Free air Deliverym3/min: 5.0
• Rate Operating Pressure Kg/cm2 (PSIG)(KPA): 7(100)(690)
• Receiver Tank capacity m3 (US Gal): 0.02(5.3)
• Air Outlets: 20A (3/4) x2 Pcs
• Make Model: Yanmar 4TNV88-BDHKS
• Type: 4 Cycle, Water Cooled, Swirl-Chamber Type
• No. of Cylinder: 4cyl
• Total Displacement CC: 2,189
• Rated Output PS (KW)/RPM: 49.5(36.4)/3,000
• Fuel Tanks Capacity Liters: 90
• Lubrication Oil Capacity Liters: 7.4
• Overall Length MM: 2,960
• Overall Width MM: 1,650
• Overall Height MM: 1,430
• Weight (DRY)/ (WET) KG: (860)(960)
• Type Size: 175R138PRx2W
