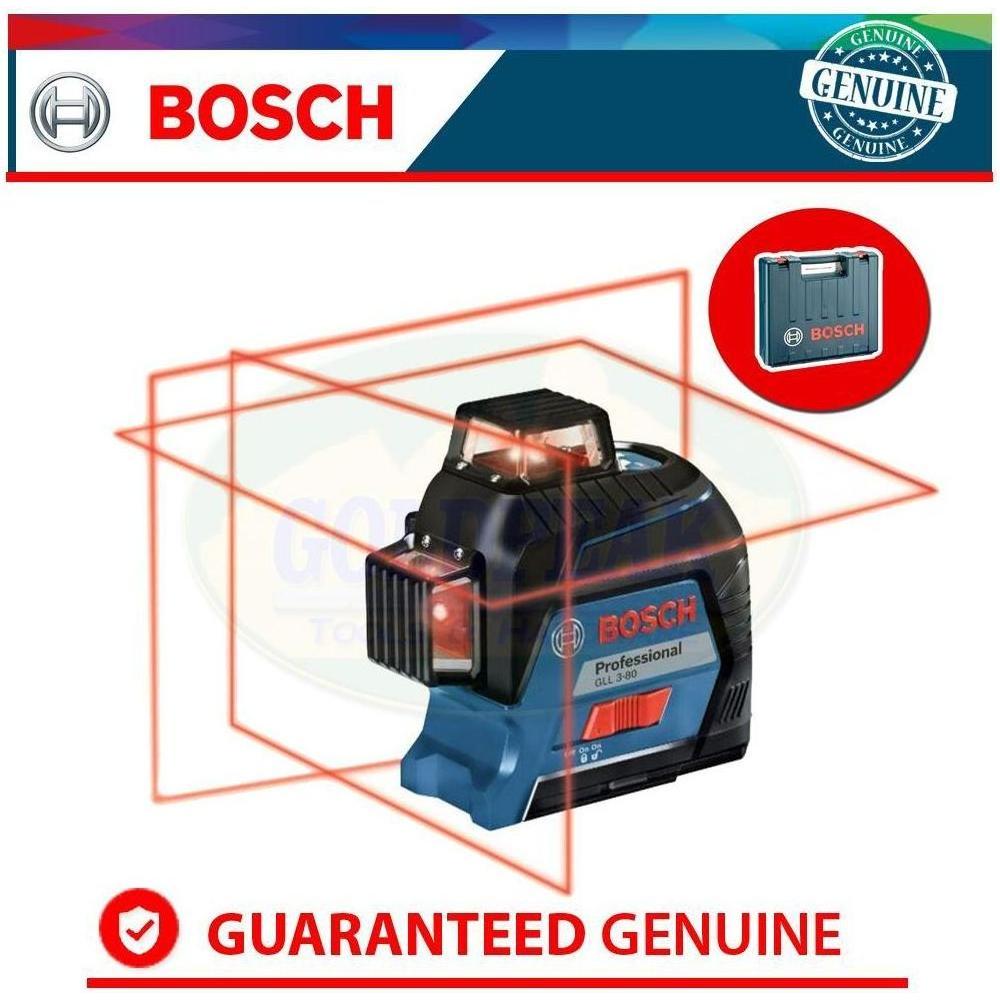

The compact Multi Line Laser for all indoor applications

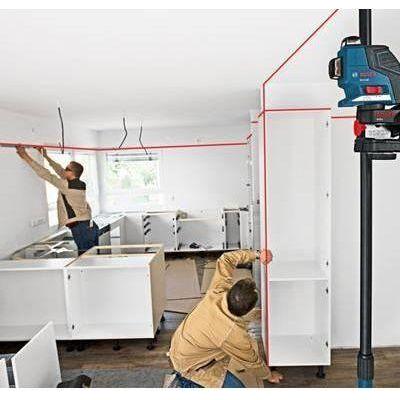

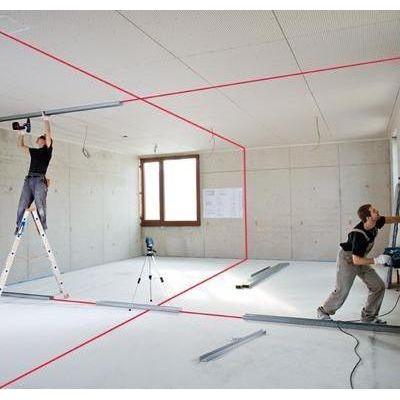

- One horizontal and 2 vertical 360° lines enable many new applications for simultaneous marking, alignment and levelling indoors
- Self-levelling (4° in 4 sec), very precise (± 0.2 mm/m) and range of up to 80 m with receiver
- Compact, easy-to-handle and extremely robust (IP54)
Specification overview
| Laser diode | 640 nm, < 1 mW |
| Operating temperature | -10 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range | 40 m |
| Working range with receiver | 80 m (Diameter) |
| Working range without receiver | 40 m (Diameter) |
| Accuracy | ± 0.2 mm/m |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Dust and splash protection | IP 54 |
| Power supply | 3 x 1.5 V LR03 (AAA) |
| Operating time (max.) | 18 h in 1-line mode |
| Tripod thread | 1/4", 5/8" |
| Weight, approx. | 0.76 kg |
| Length | 159 mm |
| Width | 75 mm |
| Height | 141 mm |
| Projection | 3 x 360° line |
Video Showcase:
1 Year Parts & Service Warranty
