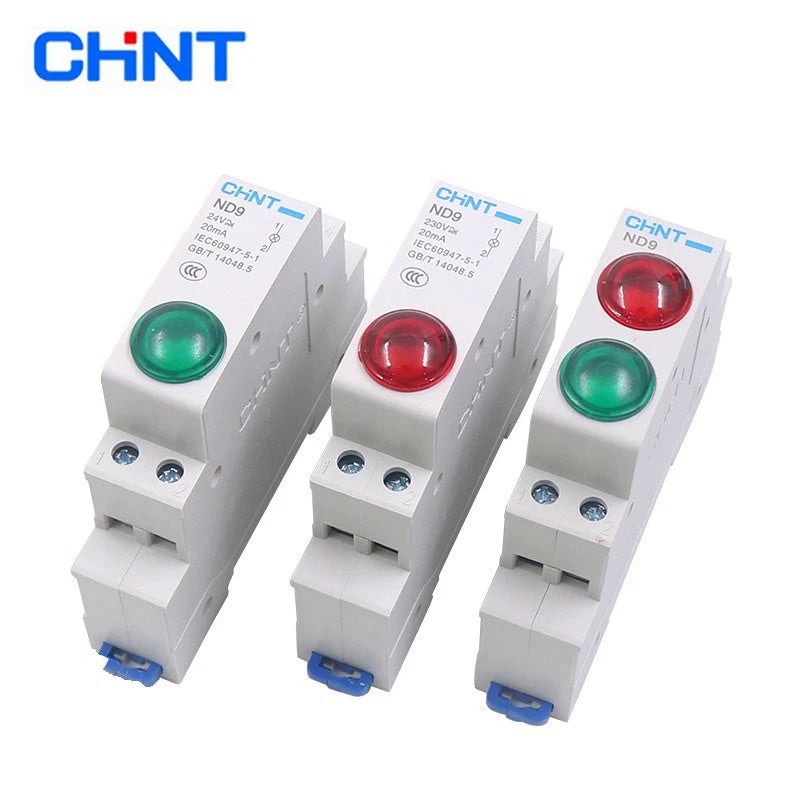

Chint ND9 Modular Indicator Light

Chint ND9 Modular Indicator Light

Rated Operational Current 6A, 230VAC

• Electric ratings: 230V, AC50/60Hz

• Rated conventional heating current lth: 16A

• Rated operational current: ≤20mA
• Rated insulation voltage Ui: 500V

• Protection grade: IP20

• Standard: IEC/EN 60947-5-1

  Operating conditions

Ambient temperature: -5℃~+40℃, average temperature in 24 hours not exceed +35℃
Altitude: ≤ 2000m;

Air conditions: At mounting site, relative humidity not exceed 50% at the max temperature of +40℃, higher relative humidity is allowable under lower temperature. For example, RH could be 90% at +20℃. Special measures should be taken to occurrence of dews
