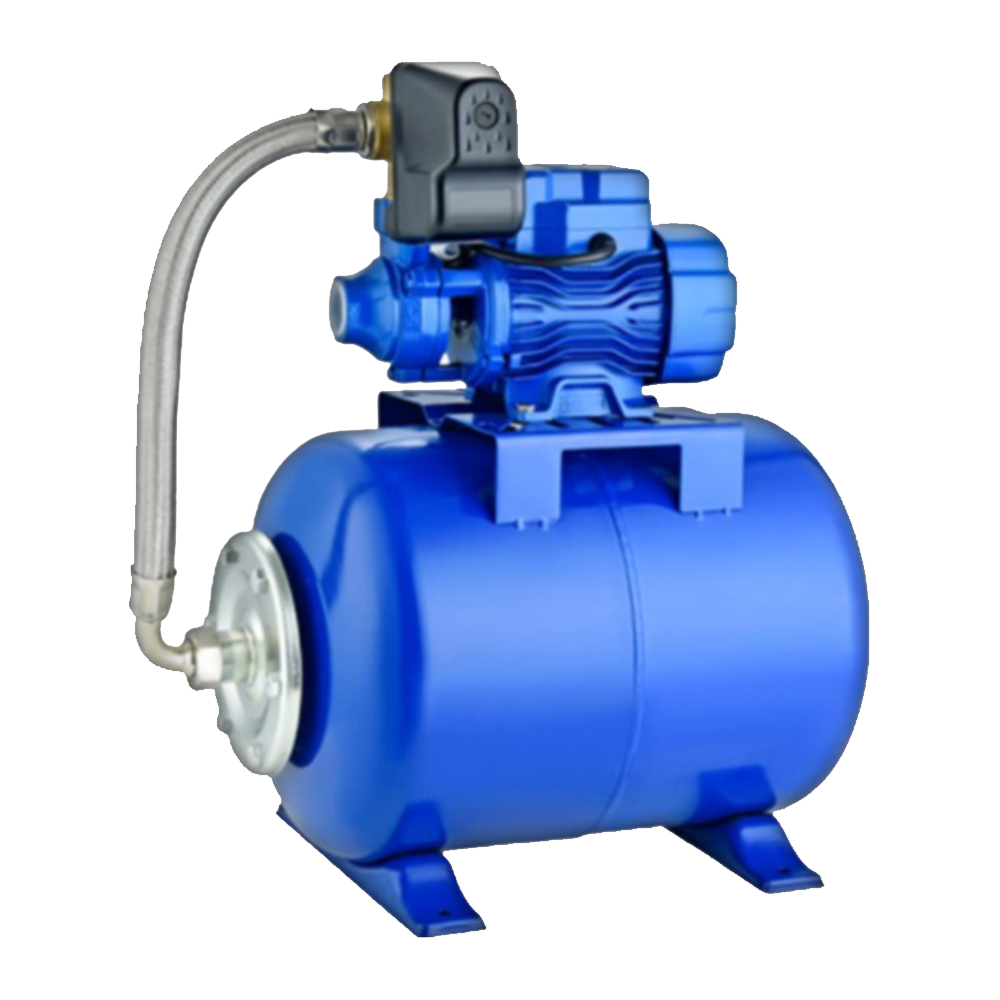

Dayuan DKM60-1B+24L Water Pump with Bladder Tank 0.5HP 24L

Dayuan DKM60-1B+24L Water Pump with Bladder Tank 0.5HP 24L

• Brand: Benelli

• Bladder tank with switch, gauge, connector, hose

• The TANK’s pressure is preset to 38PSI suitable use for US brand pumps like
• GOULDS and MYER brand,

• For Italian and China Brands like INGCO, SHIMGE, BENELLI please set the
• bladder tank pressure to 18PSI.

SPECIFICATION:

• Model: DKM60-1B+24L

• Voltage: 220V

• -kW: 0.37

• -HP: 0.5

• -min-1: 3450

• -Q. max: 30 l/min

• -H. max: 32M
• -Suct. Hmax: 9M

• -In: 2.7A

• -C: 15uF

• -VL: 450V

• -Size: 1x1"

• -G.W. (kg): 11.4

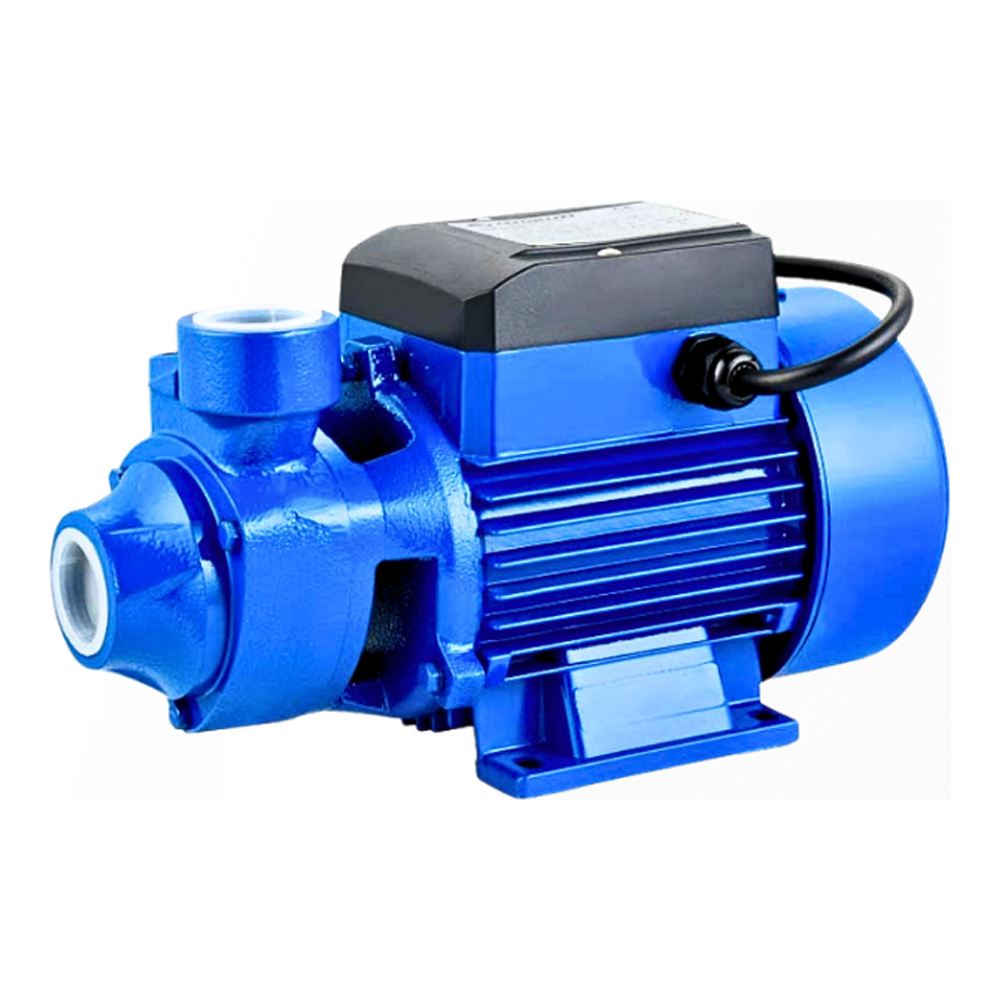

PUMP:

• Cast iron pump body

• Brass impeller

• AISI 304 shaft

• Max. liquid temperature: +40C

• Max. suction: +8m

MOTOR:

• C&U bearing

• Motor with copper winding

• Built-in thermal protector for single phase motor

• Insulation class: B

• Protection class: IP44
