Auto Booster Pump
V-series
Features
- Auto boost water pressure when water is consumed; stop running automatically when water is not consumed.
- Pre-pressure one-piece forming diaphragm pressure tank with good appearance and corrosive resistant
- Install overload protector in motor's circuit and thermal shutoff device on pump front cover protect motor from burnout due to abnormal conditions
- Equipped with Made in Japan Pressure switch
- Equipped with thermal protector
Applications
- Water supply for residential and commercial applications
- Water pressure boosting for barber shops, restaurants, sprinkle systems, washing machines, apartments, etc.
Operating Conditions
- Ambient temperature: 0~+40 Celsius
- Liquid temperature: +4 Celsius ~+50 Celsius
- Before using the pump, be sure the inlet pressure setting is lower than on setting of pressure switch

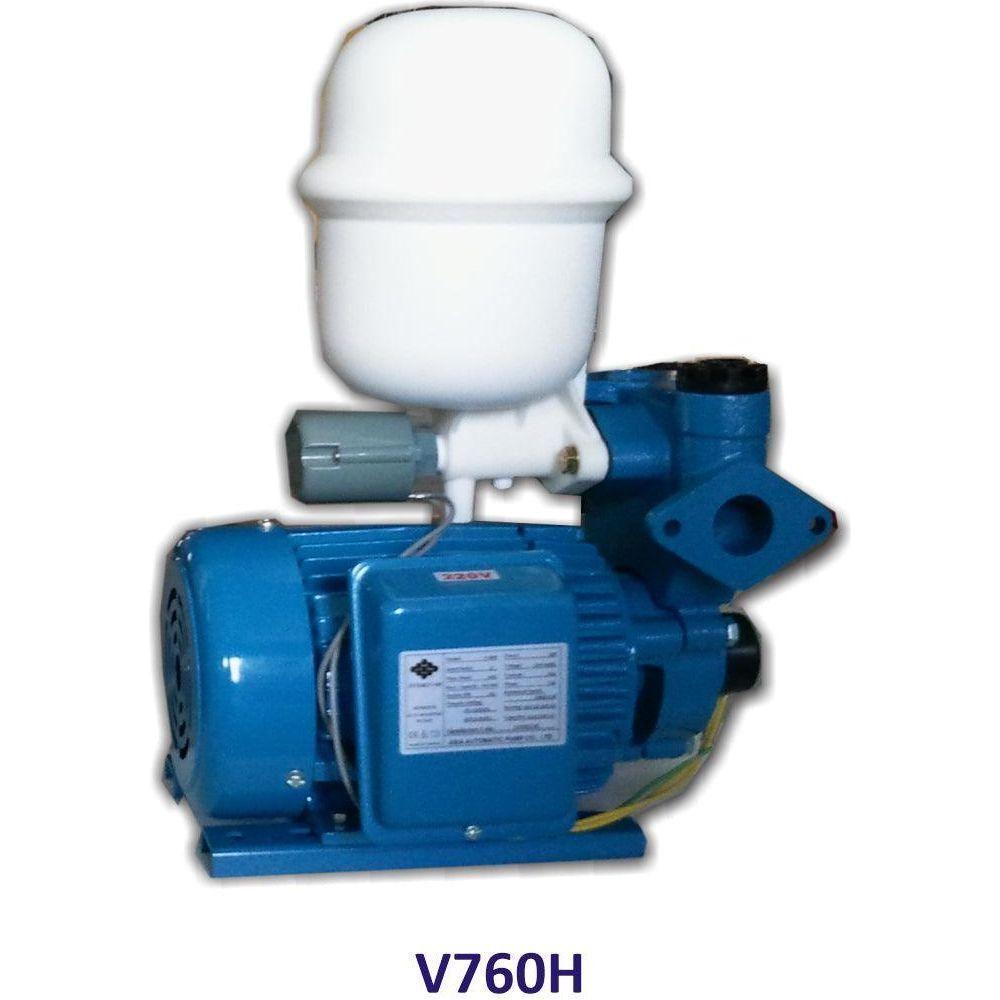

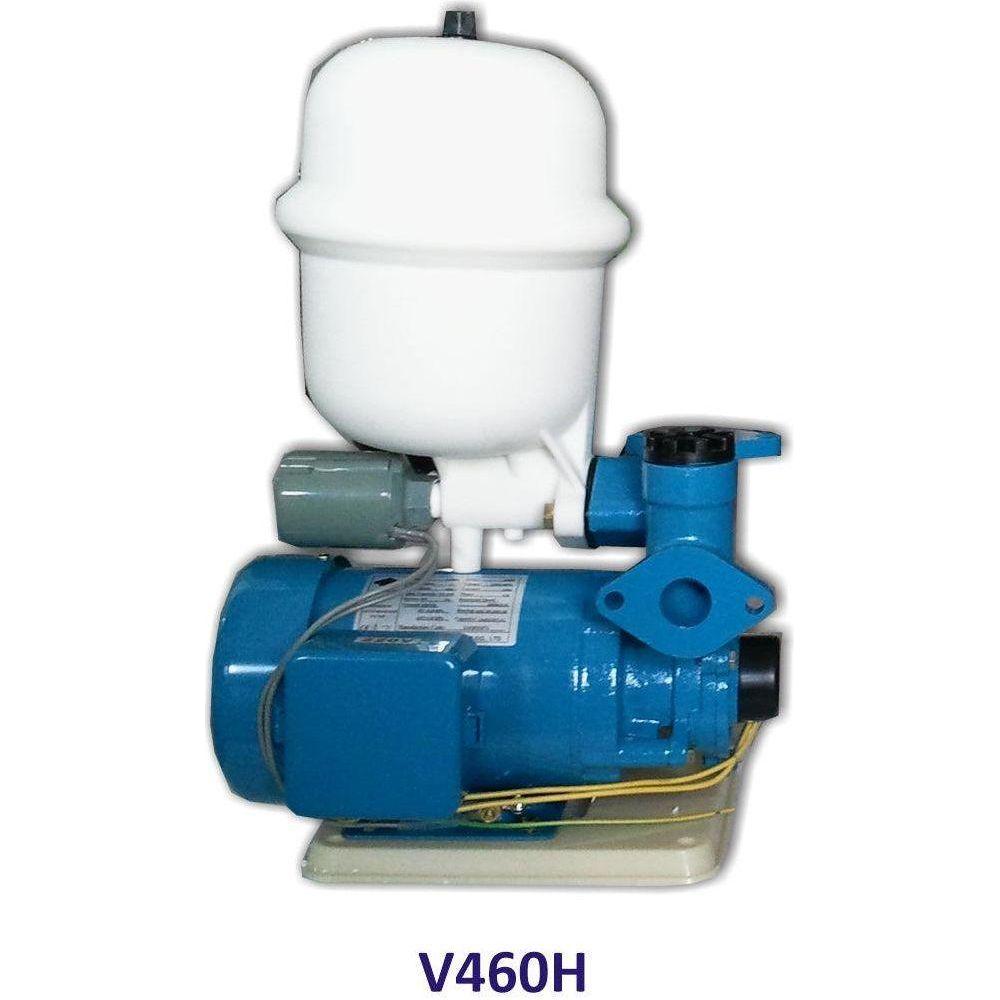

| Model | V460H | V760H | |
| Voltage | 220V/60Hz | ||
| Power | 1/2 HP | 1 HP | |
| Phase | 1 | ||
| Inlet | 1" | ||
| Outlet | 1" | ||
|
Pressure
|
On(kg/cm2) | 2 | |
| Off(kg/cm2) | 3.2 | ||
| Max Head (m) | 43 | 45 | |
| Max Flow (l/min) | 45 | 70 | |
| Net Weight | 11.3 | 21.4 | |
| Price | 8,600.00 | 11,700.00 | |
3 Months Service Warranty
