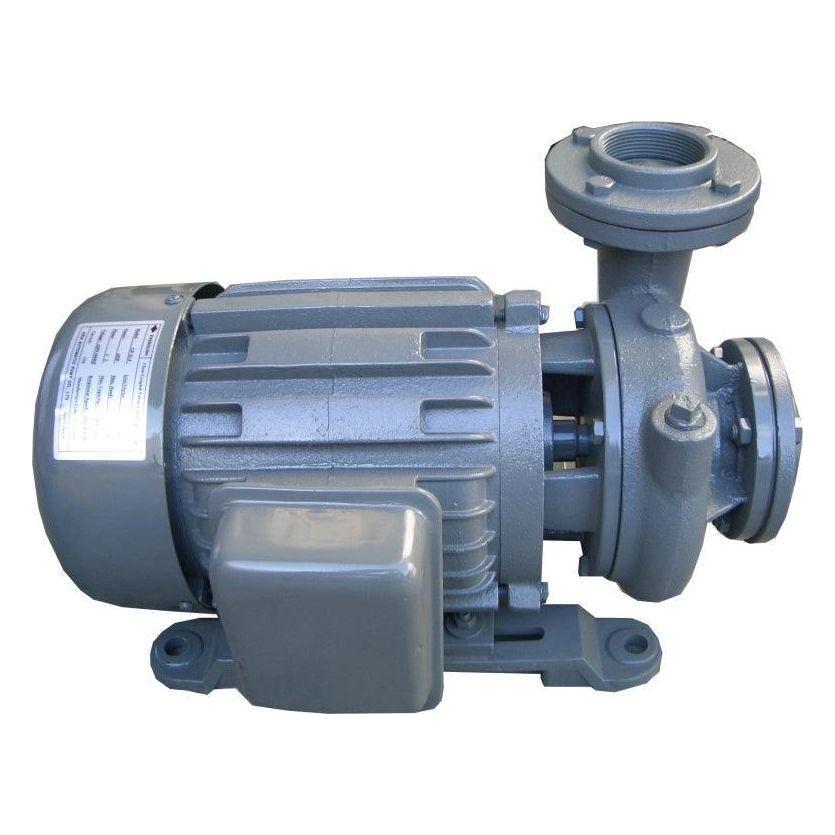

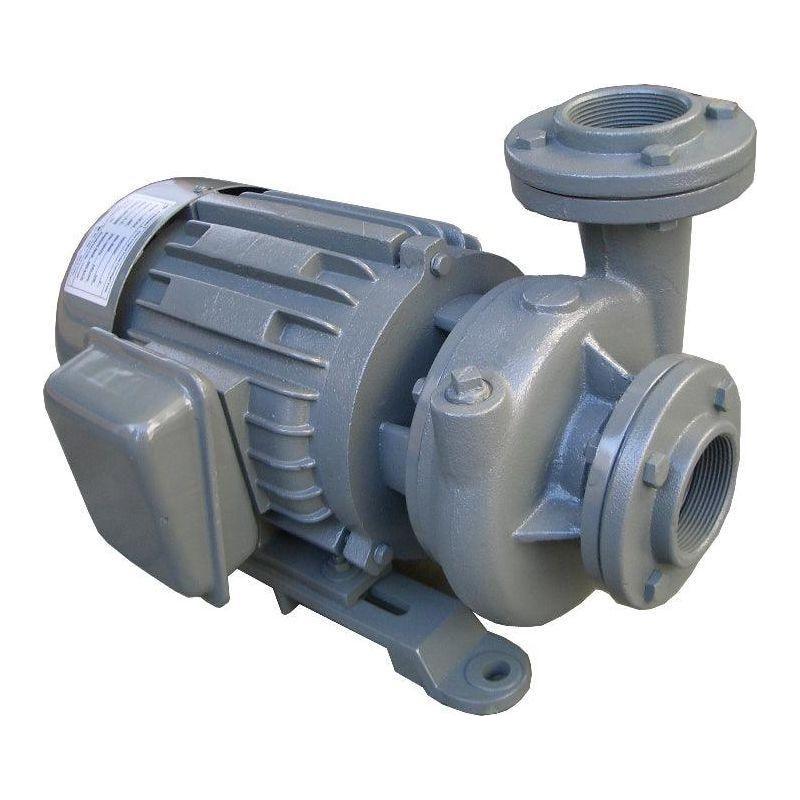

Evergush Close Coupled Vortex Centrifugal Pump

₱12,000.00
-
Evergush Logo Taiwan

Industrial Series

Features

  • The motor and pump are connected with the same shaft for eliminating fluctuation and reducing installation and maintenance cost.
  • Special volute channel design for silent operation and high efficiency.
  • Compact & robust structure for saving space and easy installation.

Applications

  • Heating and cooling water circulation.
  • Borad range of industrial applications
  • Open loop and close loop water circuit systems
  • Water supply and disposal for household
  • Process water for paper mill, brewery, refinery.
  • Boiler feed, washing and cleaning system
  • Water supply and disposal for households



Operating Conditions

  • Ambient temperature: Up to 40 Celsius
  • Liquid temperature: Up to 60 Celsius
  • For clean liquids without solid, filamentary or abrasive matter
  • Working pressure: Max. 10 Bar
Model Power Phase Voltage Suction & Discharge Dia. Max Head Max. Capacity Price
CP-21.5 2 HP 1
220V
60Hz
2" 23m 290 l/min 25,800.00
CP-22.2 3 HP 1 2-1/2" 25m 330 l/min 34,000.00
CP80-23.7H 5 HP 3 3" 25m 850 l/min 50,000.00
CP80-25.5 7.5 HP 3 3" 39m 1050 l/min 85,000.00
CP100-27.5 10 HP 3 3" 56m 620 l/min 103,000.00
CP100-211 15 HP 3 3" 76m 650 l/min 133,000.00
