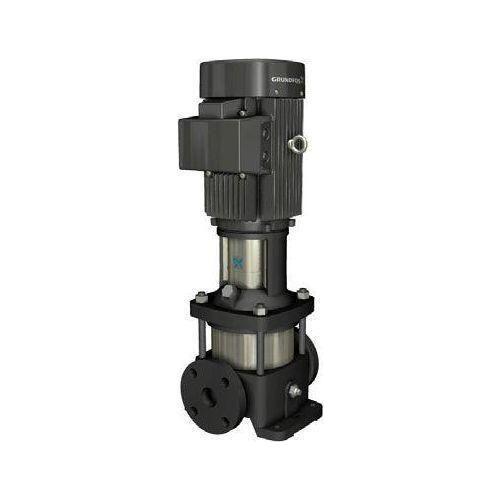

Grundfos CR10-03 A-FJ-A-E-HQQE Centrifugal Pump

Vertical, multistage centrifugal pump with suction and discharge ports on same the level (in-line) enabling installation in a horizontal one-pipe system. The pump head and base are in cast iron – all other wetted parts are in stainless steel.
A cartridge shaft seal ensures high reliability, safe handling and easy service and access. Power transmission is via a rigid split coupling. Pipework connection is via combined DIN-JIS flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

Specifications

Horsepower: 3 HP
Voltage: 3x266V/460V 60Hz
Phase: Three
