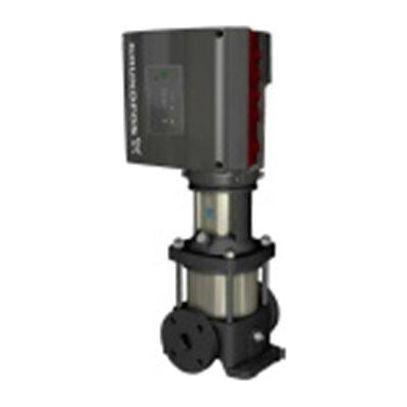

Grundfos CRE 10-4 DIN FLANGE Centrifugal Pump

IE-5 MOTOR, HMI-300, FM-300, W/ P. SENSOR

Vertical, multistage centrifugal pump with suction and discharge ports on same the level (in-line) enabling installation in a horizontal one-pipe system. The pump head and base are in cast iron – all other wetted parts are in stainless steel. A special first-stage design reduces the pump’s NPSHr value.
A cartridge shaft seal ensures high reliability, safe handling and easy service and access. Power transmission is via a rigid split coupling. Pipework connection is via combined DIN-JIS flanges.

Specifications

Horsepower: 4 HP
Voltage: 3x230V 60Hz
Phase: Three

1 Year Service Warranty
