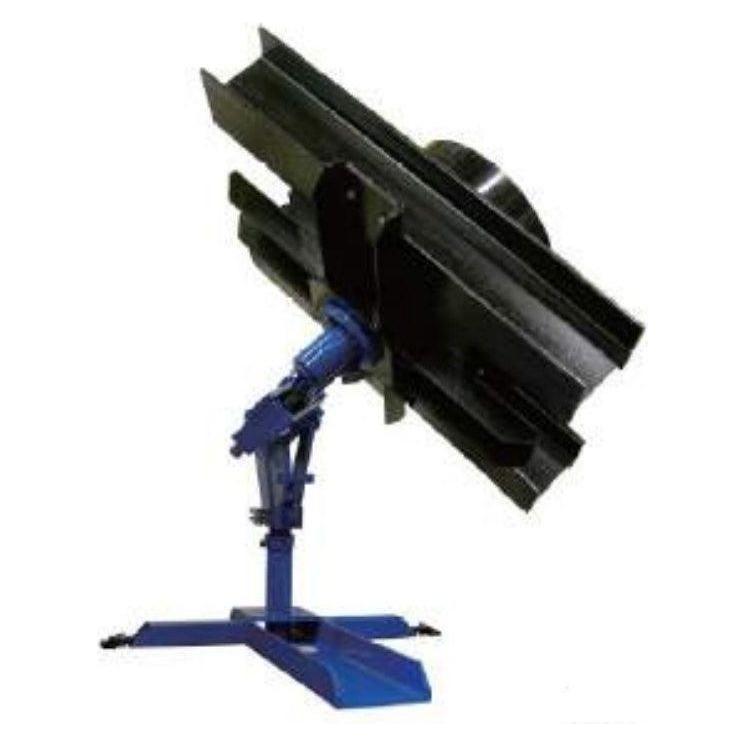

Koike C-250 Universal Balance Positioner

Koike C-250 Universal Balance Positioner

Universal Balance Positioner allow safe and quick manipulation of large objects with small manual force by setting work based on the center of gravity. Universal Balance Positioner doesn't use any force of motors. Work piece can be rotate 360 degrees around both axis, allowing effortless access to any desired location upon a mounted fixture.

• Allows downhand position with rotation/turning operations.
• Without using any kind of electric or air force.

Model: C-250
Maximum Workpiece Weight: 250 kgs
Height of Center of Gravity: 300mm
Table Diameter: 203mm
Rotation Method: 360 Degrees Manual
Max Welding Electric Current: 800A
Body Weight: 800 kg
Adjustable Range of Table at the Horizontal: 750~1050mm
