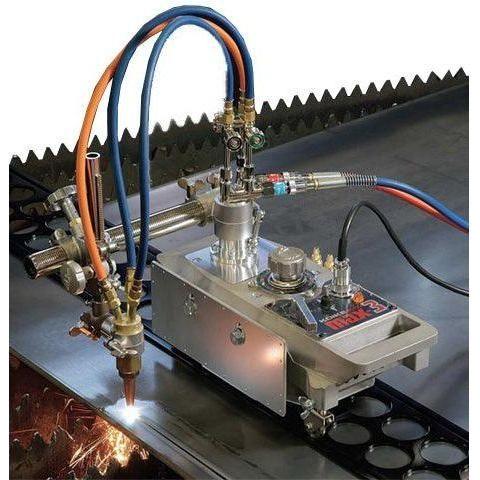

Koike IK-12 Max 3T Automatic Straight Cutting Machine
(S100, S200, SP100, SP200, SP300 & SP400)
The IK-12 Max 3 is the premium product of our assortment! This motorized hand cutting machine allows different types of oxy-fuel/plasma cutting and automated welding.
- Outstanding performance
- Unrivaled robust and heat-proof machine
- Excellent traction
- Steady travel due to a well balanced center of gravity
- Very high number of operation hours (more than 5000 h) due to the double cone drive
- Speed (80-800 mm / min.) High Speed (240-2400 mm / min.)
- Heat protection shield on the cutting side and the base plate
- Gas and plasma cutting as well as automated welding
- Cutting area of 0,5 to 600 mm
- Easy maintenance
Usage
- Straight-Line
- Circle
| Model | Torch Type (Application) | Price |
| IK-12 MAX3T S-100 | 1-torch (V Bevel Cutting) | 95,000.00 |
| IK-12 MAX3T S-200 | 2-torch (V,Y or X Cutting) | 120,000.00 |
| IK-12 MAX3T SP-100 | 1-torch (B-Bevel Cutting) *with Floating Device |
100,000.00 |
| IK-12 MAX3T SP-200 | 2-torch (V,Y or X Cutting) *with Floating Device |
155,000.00 |
| IK-12 MAX3T SP-300 | 2-torch (V,Y or X Cutting) *with Floating Device |
220,000.00 |
| IK-12 MAX3T SP-400 | 2-torch (V,Y,X or K Cutting) *with Floating Device |
240,000.00 |
| Torch Set | Description | Scope of Delivery |
| S-100 | Burner set S-100 for vertical and bevel cutting. The burner support features a gear rack/ bevel drive in its lateral and vertical adjustment which affords an accurate positioning even while cutting. |
Transverse bracket
Bracket holder Burner support Machine burner Gas supplier Respectively one connecting hose for burning gas as well as heating and cutting oxygen Three cutting nozzles (5-30 mm) Counter weight Toolset |

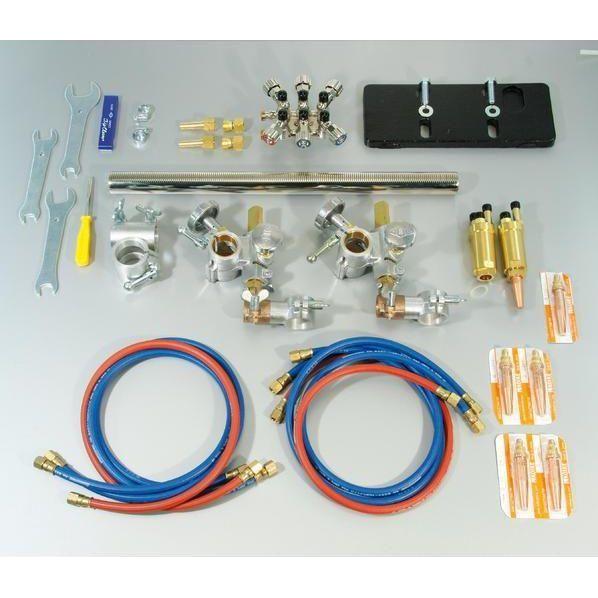

| S-200 | Burner set S-200 for vertical, V-, Y-, X- and bevel cutting. The burner support features a gear rack/ bevel drive in its lateral and vertical adjustment which affords an accurate positioning even while cutting. |
Transverse bracket
Bracket holder Two burner supports Two machine burner Gas supplier Respectively two connecting hose for burning gas as well as heating and cutting oxygen Six cutting nozzles (5-30 mm) Counter weight Toolset |
| SP-100 | Burner set SP-100 for vertical and bevel cutting. The burner support is equipped with a parallelogram motion link and a height scanning. So the once adjusted distance between cutting nozzle and work part stays constant also in case of irregularities in thickness. The lateral and vertical adjustment is equipped with a gear rack/ bevel drive which affords an accurate positioning even while cutting. |
Transverse bracket
Bracket holder Burner support with parallelogram motion link Height scanning Machine burner Gas supplier Respectively one connecting hose for burning gas as well as heating and cutting oxygen Three cutting nozzles (5-30 mm) Counter weight Toolset |

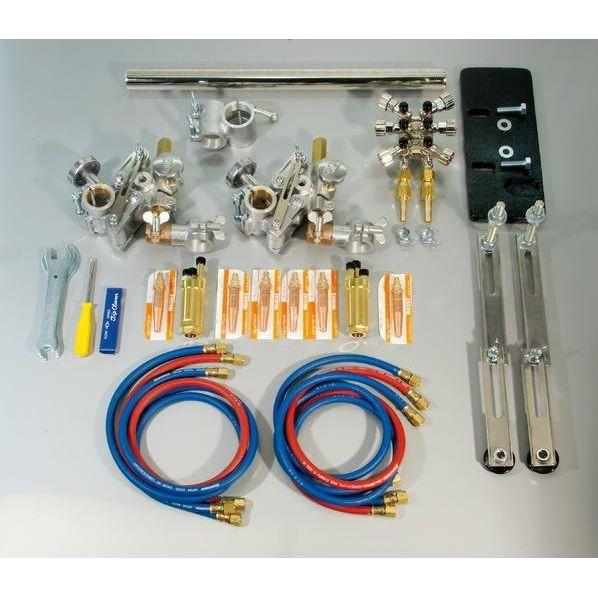

| SP-200 | Burner set SP-200 for vertical, V-, Y-, X- and bevel cutting. The burner support is equipped with a parallelogram motion link and a height scanning. So the once adjusted distance between cutting nozzle and work part stays identical also in case of irregularities in thickness. The lateral and vertical adjustment is equipped with a gear rack/ bevel drive which affords an accurate positioning even while cutting. |
Transverse bracket
Bracket holder Two burner supports Two machine burner Gas supplier Respectively two connecting hose for burning gas as well as heating and cutting oxygen Six cutting nozzles (5-30 mm) Counter weight Toolset |

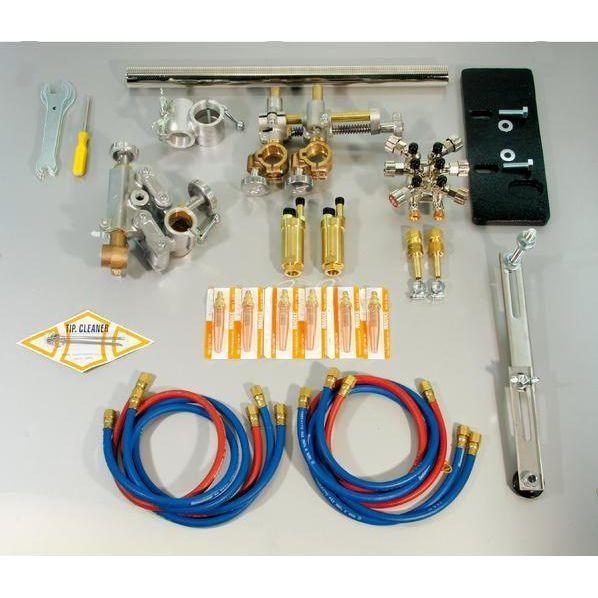

| SP-300 | Burner set SP-300 for vertical, V-, Y- and X- bevel cutting. The burner support is equipped with a parallelogram motion link and a height scanning. So the once adjusted distance between cutting nozzle and work part stays identical also in case of irregularities in thickness. The lateral and vertical adjustment is equipped with a gear rack/ bevel drive which affords an accurate positioning even while cutting. The distance between the two torches are effected by a linear spindle. |
Transverse bracket
Bracket holder Cross support with parallelogram motion link Burner support Height scanning Two machine burners Gas supplier Respectively two connecting hoses for burning gas as well as heating and cutting oxygen Six cutting nozzles (5-30 mm) Counter weight Toolset |

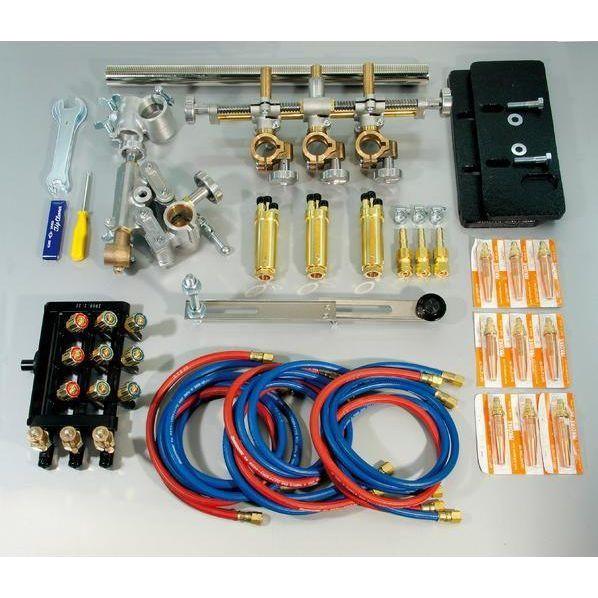

| SP-400 | Burner set SP-400 with parallelogram motion link for vertical, V-, Y-, X- and K- bevel cutting. The burner support is equipped with a parallelogram motion link and a height scanning. So the once adjusted distance between cutting nozzle and work part stays identical also in case of irregularities in thickness. The lateral and vertical adjustment is equipped with a gear rack/ bevel drive which affords an accurate positioning even while cutting. The distance between the three torches are effected by a linear spindle. |
Transverse bracket
Bracket holder Two burner supports Two machine burner Gas supplier Respectively two connecting hose for burning gas as well as heating and cutting oxygen Six cutting nozzles (5-30 mm) Counter weight Toolset |
| Cutting thickness | 5-100 mm | ||
| Cutting speed | Standard | 80-800 mm/min (50Hz), 100-1,000mm/min (60Hz) | |
| ML-Type | 40-400 mm/min (50Hz), 50-500mm/min (60Hz) | ||
| S-Type | LOW Speed | 80-800 mm/min (50Hz), 100-1,000mm/min (60Hz) | |
| HIGH Speed | 240-2400 mm/min (50Hz), 300-3,000mm/min (60Hz) | ||
| Transmission System | Double cone speed system | ||
| Motor | Condenser type Induction Motor 9/10W(50/60Hz) | ||
| Total length | 430 mm | ||
| Track width | 160 mm | ||
| Type of gas | Acetylene, propane | ||
| Weight | 11.0 kg (only main body) | ||
Main Components and Accessories
- Cutting Machine Body [IK-12 max3]
- Power Cable (5M)
- Instruction Manual
- Tip Support
