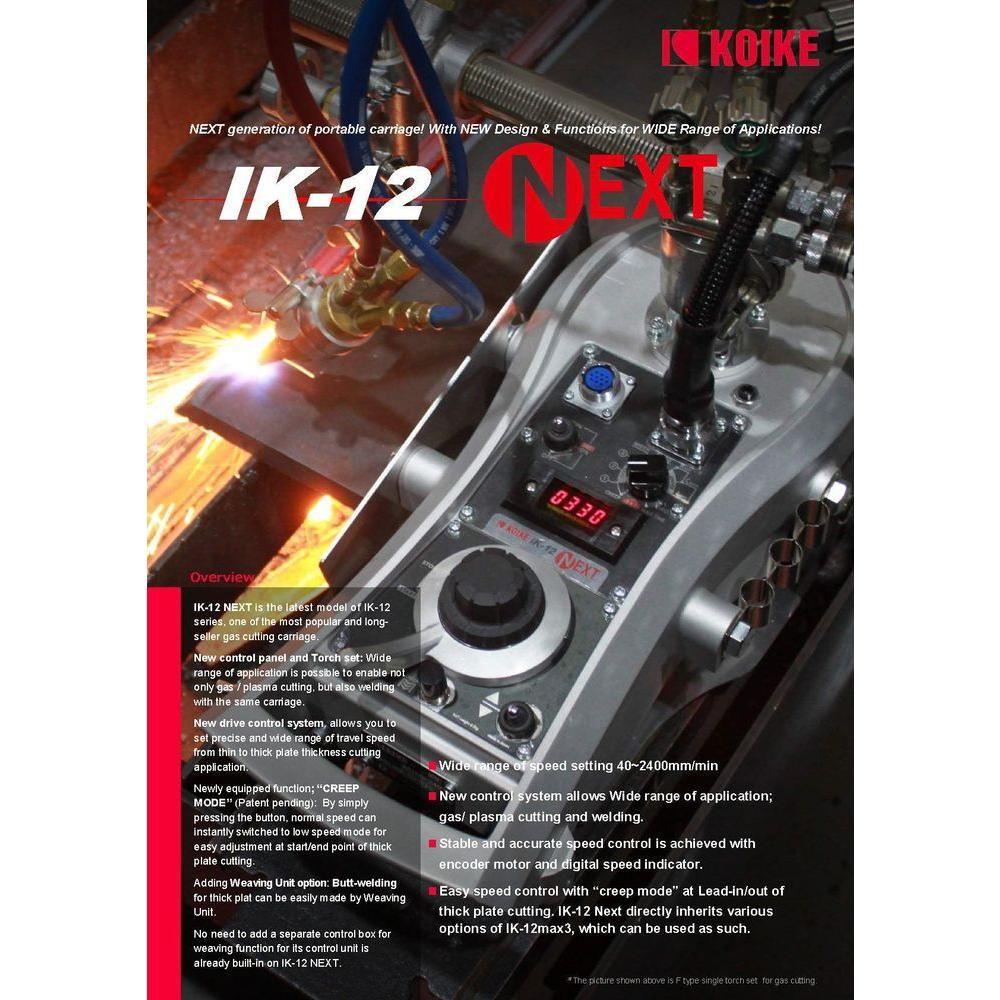

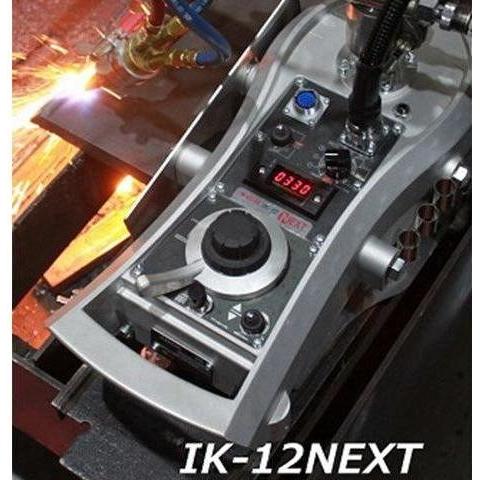

Koike IK-12 NEXT Automatic Cutting Machine
The IK-12 Next is the successor of the IK-12 Max 3, which has been highly rated among the portable oxy-fuel cutting machines. Body structure is systematized to apply to different types of work and meet the needs of oxy-fuel and plasma cutting and automatic welding. Each component is functionally worked out as an independent unit, selection and assortment are at the customers disposal to create the system needed for the requirement.
- Wide range of speed setting 40~2400mm/min.
- New control system allows wide range of application; gas/ plasma cutting and welding.
- Stable and accurate speed control is achieved with encoder motor and digital speed indicator.
- Easy speed control with “creep mode” at lead-in/ out of thick plate cutting. IK-12 Next directly inherits various options of IK-12 max3, which can be used as such.
Usage
- Straight-Line
- Circle
| PRICE GUIDE | |
| Item | Price |
| IK-21 NEXT Body Only with 1.8m Straight Rail (220V,Single Phase,60Hz) |
135,000.00 |

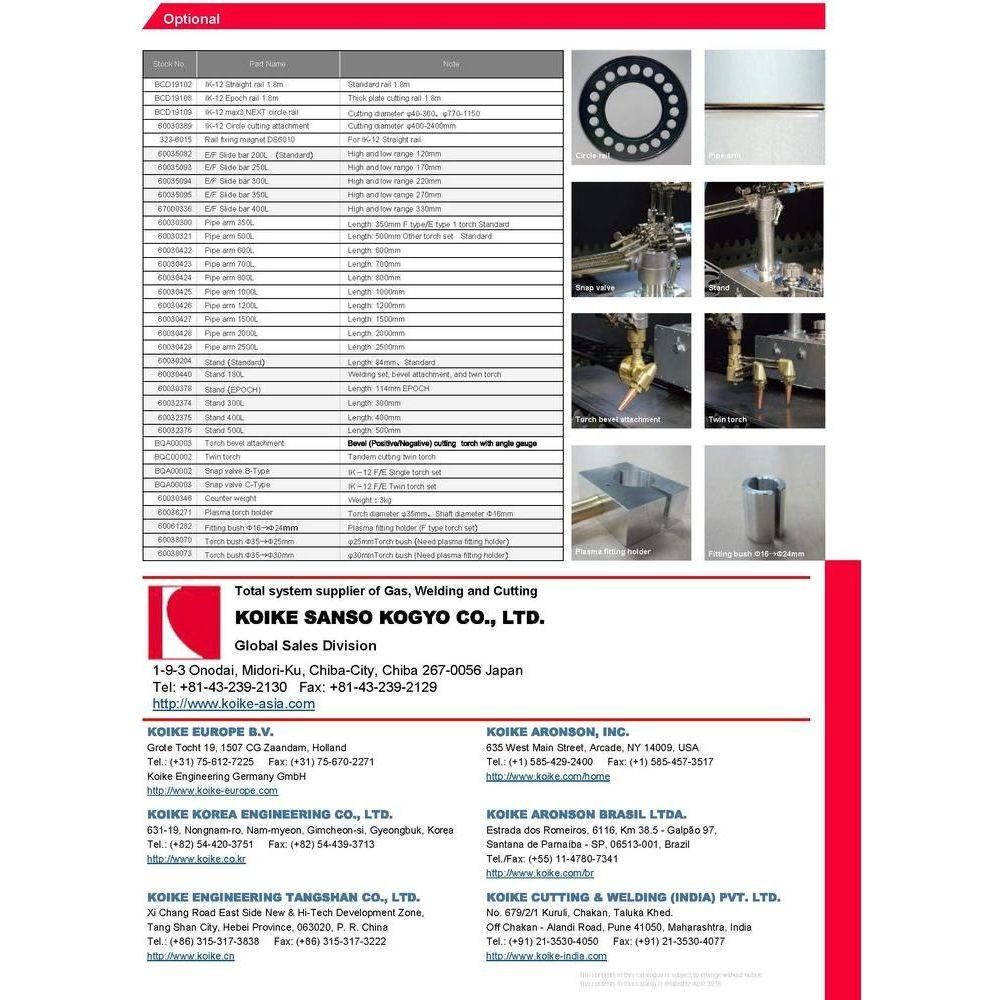

| Optional Attachments | |
| Plasma Torch Holder Set | 70,000.00 |
| Welding Torch Holder Set | 55,000.00 |
| Weaving Torch Holder Set | 210,000.00 |
| Power & Signal Cable (For Plasma Cutting & Welding) |
20,000.00 |
| Gas Cutting )Oxy-Fuel) Torch Set Accessories | |
| S-100 (Single Torch) | 25,000.00 |
| S-200 (Double Torch) | 45,000.00 |
|
SP-300 (Double Torch with Plate Rider)
|
125,000.00 |
| SP-400 (3 Torches with Plate Rider) | 140,000.00 |
| Weight (body) | 8.5 kg/18.74 lb. |
| Machine size | 432 mm/17 inch |
| Machine width | 220 mm/8.66 inch |
| Max. loaded weight | 50 kg/110.23 lb. |
| Traveling speed | 40-2400 mm/min / 1.57-94.49 inch/min |
| Creep speed | 40-300 mm/min / 1.57-11.81 inch/min |
| Input power | 100-240 VAC ±10% / 1.1-0.7A / 50-60 Hz |
| Motor | 24 VDC motor with an encoder, 23W, 5600 rpm |
| Transmission | Dial acceleration formula, variable speed |
| Speedometer | Digital display |

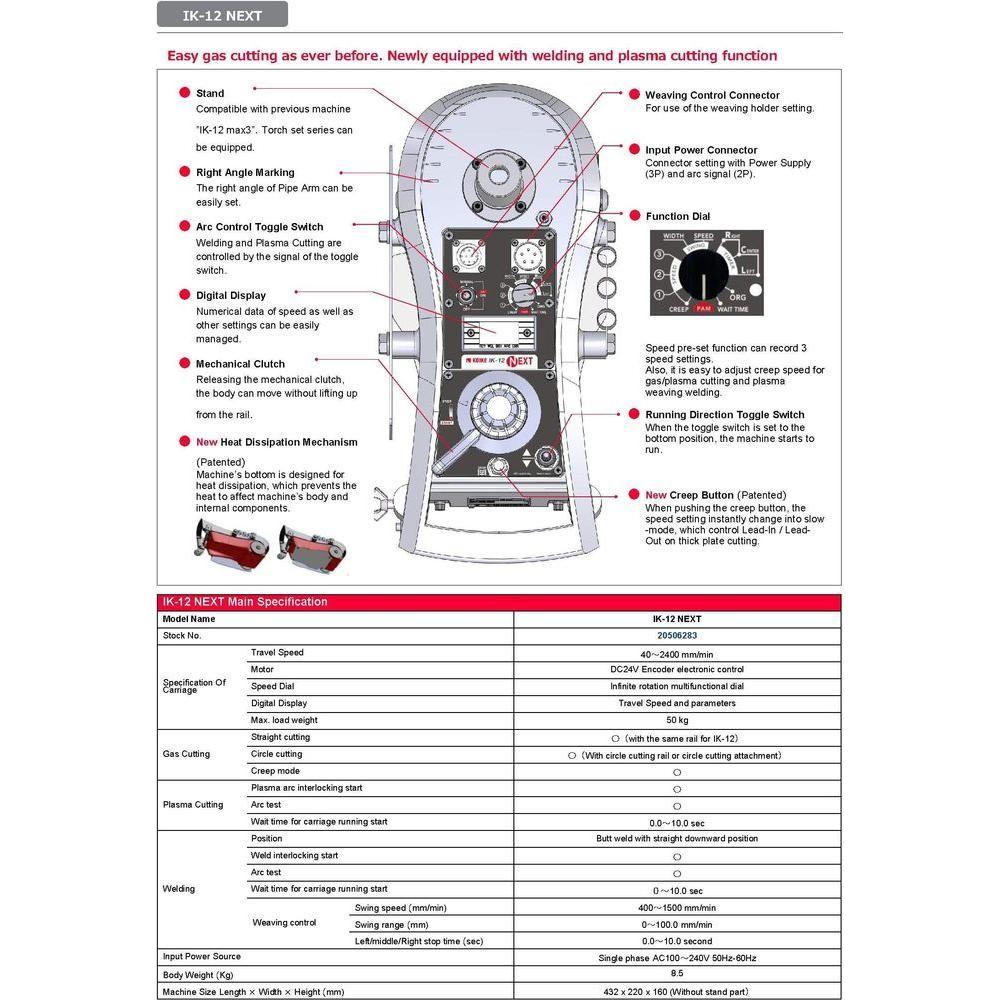

| IK-12 NEXT | |||
|
Specification of Carriage
|
Travel Speed | 40 - 2400mm/min | |
| Input Voltage |
AC100 - 240V, 50/60Hz
|
||
| Body Weight (kg) | 8.5kg | ||
| Shift Method |
Encoder electronic control
|
||
| Speed Indication | 〇(digital display) | ||
| Speed Dial |
Infinite rotation multifunction dial
|
||
| Motor | Encoder motor | ||
| torch set |
Not included in the main package
|
||
|
Application
|
Gas cutting | 〇 | |
| Plasma cutting | 〇 | ||
| Welding | 〇 | ||
| Weaving |
〇 (Waving unit is option)
|
||
|
I/O
|
Connector for power Input |
〇 (Power cable is option)
|
|
| Arc signal output | 〇 | ||
| Special function | Creep mode | 〇 | |

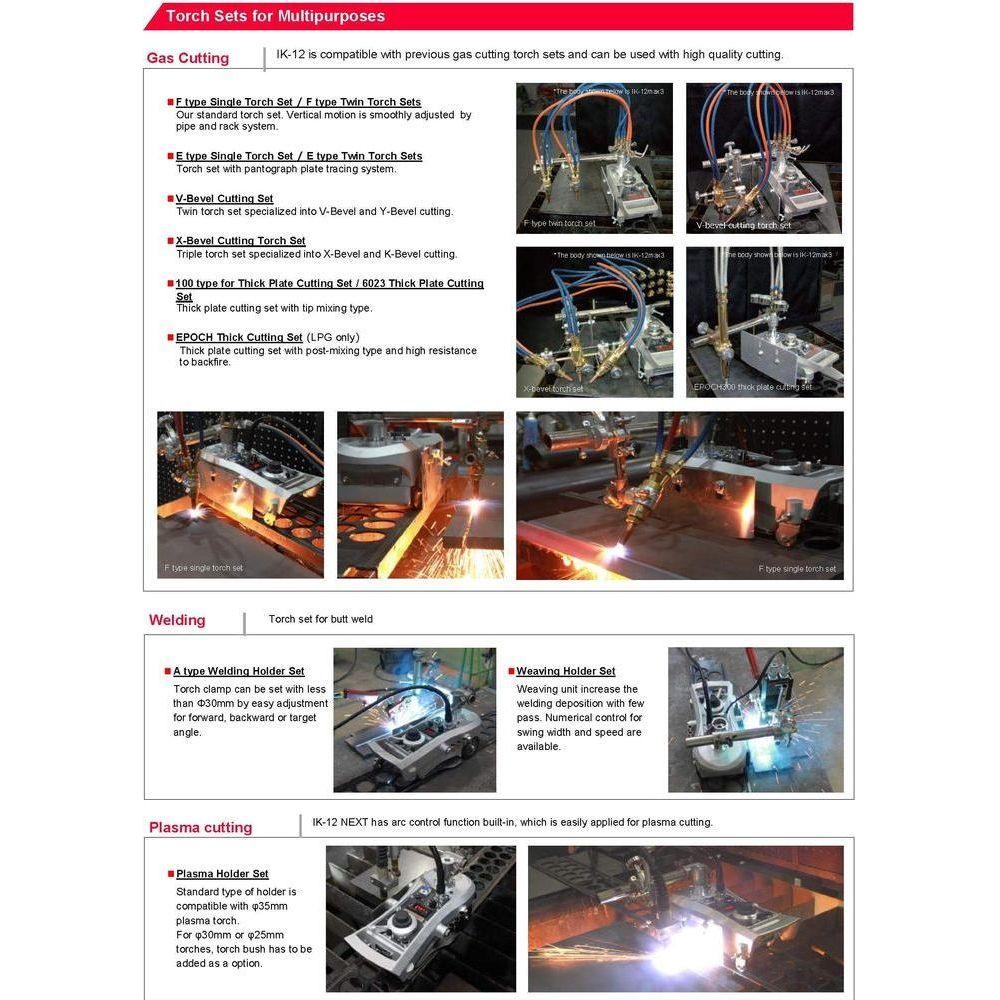

TORCH SET (links are to KOIKE ASIA Website) |
|||||
S-100 |
S-200 |
SP-100 |
SP-200 |
Welding Holder Set |
Weaving Holder Set |
| Burner set S-100 for vertical and bevel cutting… More › | Burner set S-200 for vertical, V-, Y-, X- and bevel cutting.… More › | Burner set SP-100 with parallelogram motion link.… More › | Burner set SP-200 for vertical, V-, Y-, X- and bevel cutting. The… More › | Welding torch clamp can be set with from φ16mm to φ23mm. Parts map |
Weaving unit increasing welding deposition with few pass. Parts map |
SP-300 |
SP-400 |
EPOCH-300 |
EPOCH-600 |
L-100 |
Plasma Holder Set |
| Burner set SP-300 with parallelogram motion link for vertical, V-, Y-… More › | Burner set SP-400 with parallelogram motion link for vertical, V-, Y-,… More › | Burner set EPOCH 300 for vertical and beveling cutting with a material… More › | Burner set EPOCH 600 for vertical and beveling cutting with a material… More › | Torch set L-100 for thick plate vertical & vebel cutting.... More > | Holder set for plasma torch. As a standard type, dia.35mm torch can be set. Parts map |
