Koike Mini Mantis II H-Beam Cutting Machine

Koike Mini Mantis II H-Beam Cutting Machine

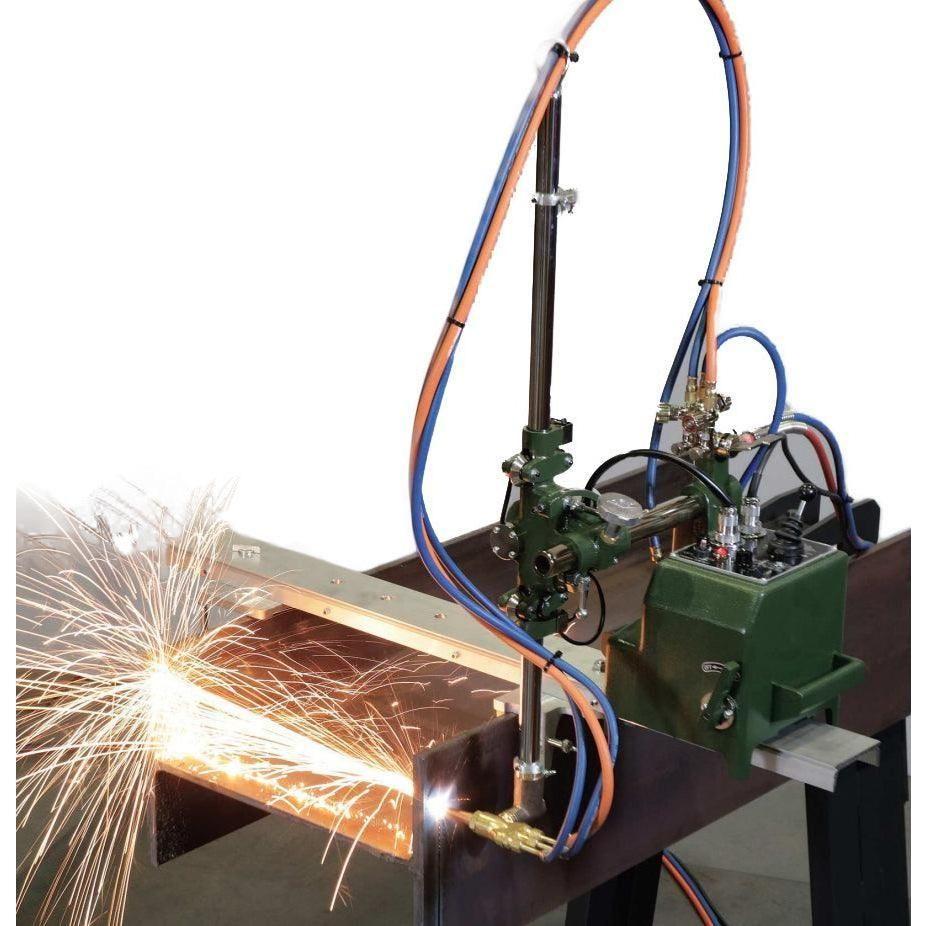

MINIMANTIS II is the most powerful cutting machine for cutting H-beam.
Designed to make diagonal cut on the web and flange, and also bevel
cutting, simply by changing the angle of the rail or the Up/Down rack bar,
as well as the straight cutting.
Equipped with 2 drive motors for web and flange cutting. The carriage
moves along the rail to cut the web and torch moves up and down to cut
the flange. Therefore there is no need to align or rotate the H-beam when
cutting. In addition, it is possible to use it in combination with 3 types of
rails with different length, according to the web dimension.

• Setting time reduced by the integrated main body and guide rail.
• Easy carry and motion due the lightweight, also reduces the effort in movement.
• Diagonal cutting on web by 35° and bevel cutting on the flange up to 45°.
• PWM control provides stable feeding speed.
• Steel plate can also be cut.

Usage

• Straight-Line

• H-Beam

• Various Steel Shape

Main components and Accessories

- Cutting Machine Main Body [MINIMANTIS II]
- Power Cable (5M)
- Instruction Manual
- Fuse
- Screwdrive
- Wrench
- Cutting Tip Cleaner
- Cutting Tip 106 #0, 1, 2
