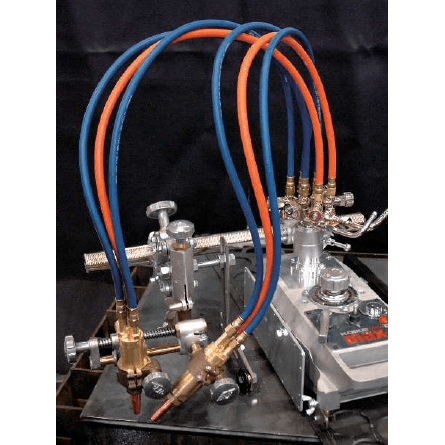

Koike SP-300 (Double Torch) Burner Torch Accessory Set [with Plate Rider]

Koike SP-300 (Double Torch) Burner Torch Accessory Set [with Plate Rider]
(for IK-12 Max3/Next)

Burner set SP-300 for vertical, V-, Y- and X- bevel cutting. The burner support is equipped with a parallelogram motion link and a height scanning. So the once adjusted distance between cutting nozzle and work part stays identical also in case of irregularities in thickness. The lateral and vertical adjustment is equipped with a gear rack/ bevel drive which affords an accurate positioning even while cutting. The distance between the two torches are effected by a linear spindle.

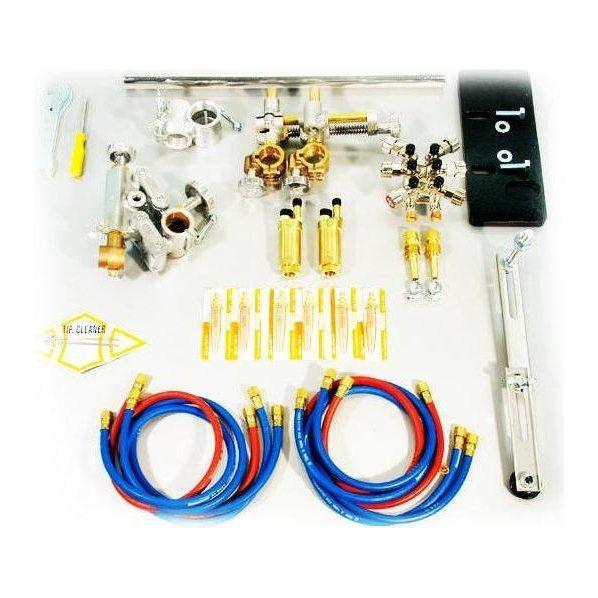

Scope of delivery

• Transverse bracket
• Bracket holder
• Cross support with parallelogram motion link
• Burner support
• Height scanning
• Two machine burners
• Gas supplier
• Respectively two connecting hoses for burning gas as well as heating and cutting oxygen
• Six cutting nozzles (5-30 mm)
• Counter weight
• Toolset
