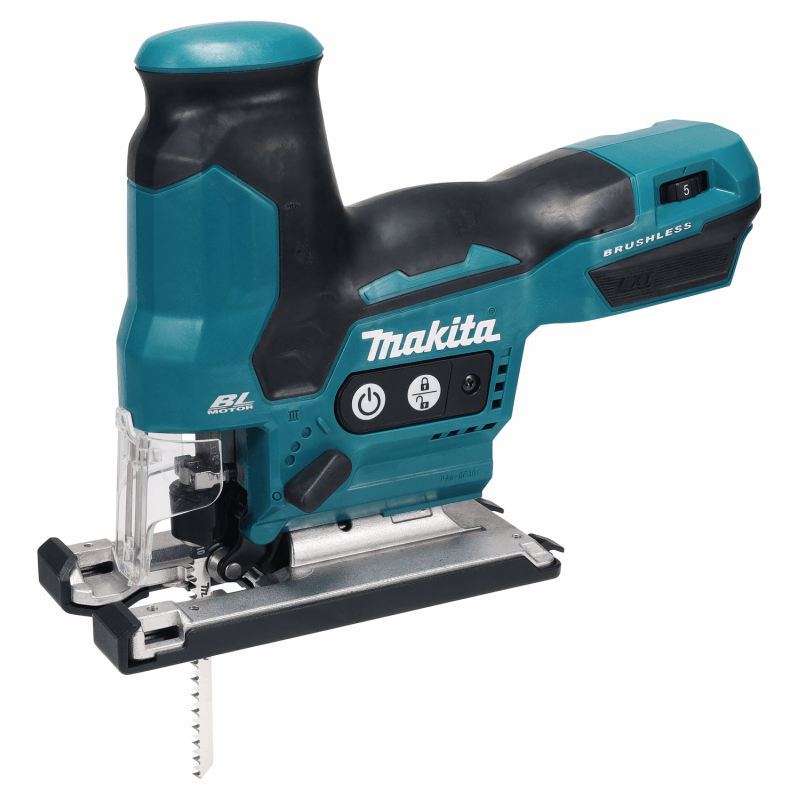

Makita DJV185Z 18V Cordless Jigsaw, Barrel Handle (LXT) [Bare]
135mm (5-5/16″) Cordless Barrel Handle Jig Saw 18V LXT® Li-Ion
[BARE TOOL]
- 18V LXT BL Cordless Barrel Handle Jig Saw, 3 Orbital Settings plus Straight Cutting, LED Light
- Barrel handle type cordless jig saw powered by 18V LXT Li-Ion battery
- High cutting performance thanks to our 18V LXT platform
- Compact and lightweight for reduced operator fatigue
- Light reduction function reduces the glare of the light when the tool is being used upside down
- BL motor delivers high power
- Lock on button for continuous operation
- Soft start allows for accurate landing of the blade on the surface of the workpiece
- 3 orbital settings plus straight cutting for use in a wide range of materials
- Soft no-load rotation reduces vibration and aligns blade with the cutting line easily
- Disabling soft no-load rotation function in operator’s preference
- LED job light (Single LED with light up function during standby mode)
- Toolless blade clamp for easy blade change with one hand
- Ergonomically designed handle with soft grip
- Dust nozzle can be attached for connection to Makita vacuum cleaner
- Electric brake for increased productivity
- Handy rip fence (guide rule) allows you to do extra-accurate straight cuts and circular cuts (optional)
- Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
- Battery protection circuit protects against overloading, over-discharging and over-heating
- Battery and charger are sold separately.
Specifications
MAX OUTPUT | 400 W |
CAPACITY | Wood: 135 mm (5-5/16″) |
Mild steel: 10 mm (3/8″) | |
Aluminum: 20 mm (13/16″) | |
STROKE LENGTH | 23 mm (7/8″) |
STROKES PER MINUTE (SPM) | 800 – 3,000 |
SHANK TYPE | Saw blade: Bayonet Shank Jig Saw Blade |
BEVEL RANGE | 0 – 45° |
VIBRATION LEVEL | Cutting boards: 10.3 m/s² |
Cutting sheet metal: 9.0 m/s² | |
VIBRATION K FACTOR | Cutting boards: 1.7 m/s² |
Cutting sheet metal: 1.5 m/s² | |
SOUND PRESSURE LEVEL | 87 dB(A) |
SOUND POWER LEVEL | 95 dB(A) |
NOISE K FACTOR | 3 dB(A) |
DIMENSIONS (L X W X H) | w/o Battery: 244 x 77 x 183 mm (9-5/8 x 3 x 7-1/4″) |
w/ BL1860B: 259 x 77 x 183 mm (10-1/4 x 3 x 7-1/4″) | |
NET WEIGHT | 2.0 – 2.3 kg (4.4 – 5.1 lbs.) |
Inclusions: (may vary depending on batch)
Dust nozzle 413F05-1(1), Dust cover 458191-5(1), JIGSAW BLADE. B10 A-85628(1), JIGSAW BLADE NO. BR13 A-85793(1), Cover plate 457867-1(1), Hex wrench 3 783201-2(1), JIGSAW BLADE NO.B22 A-85737(1)
Lifetime Service Warranty
