It's what's INSIDE that counts.

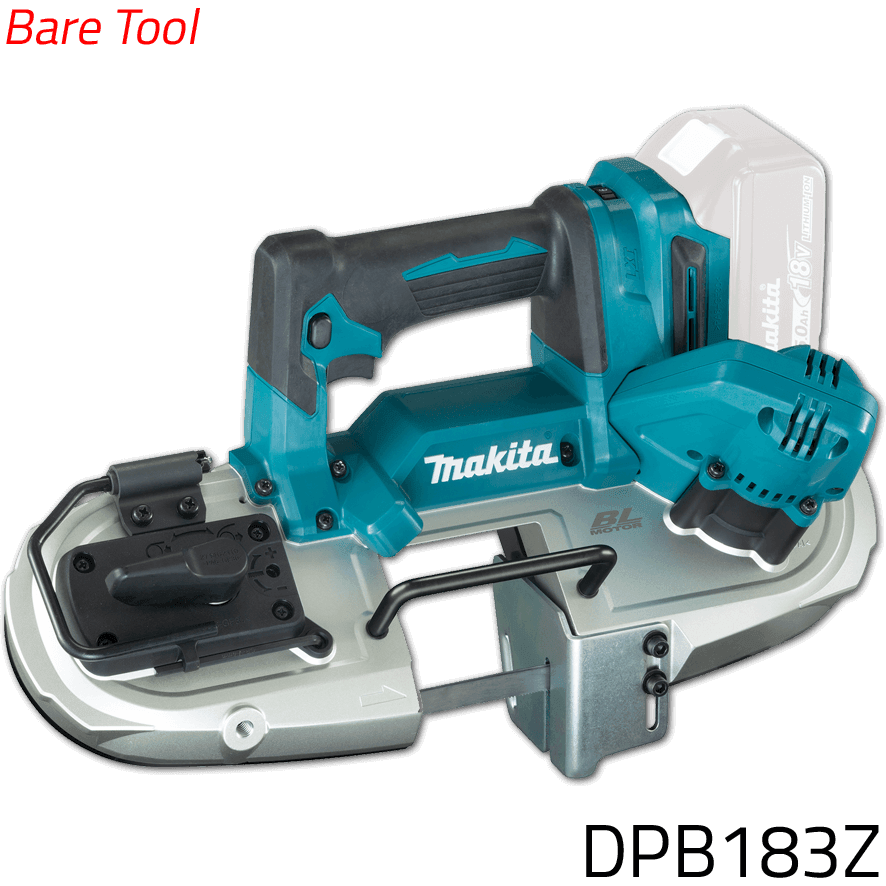

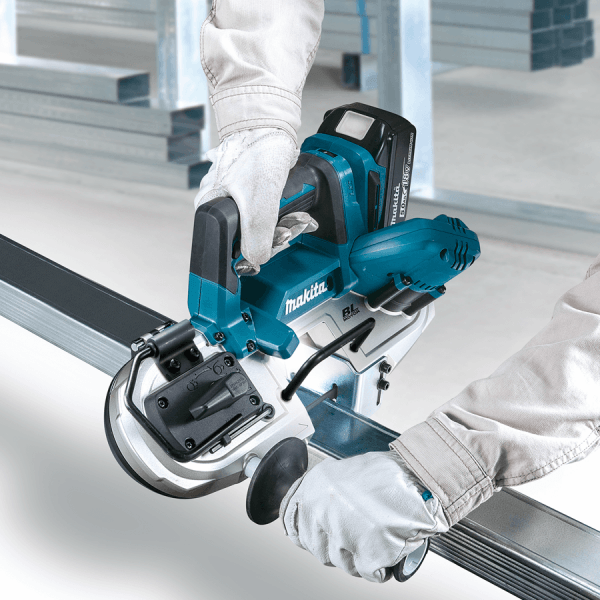

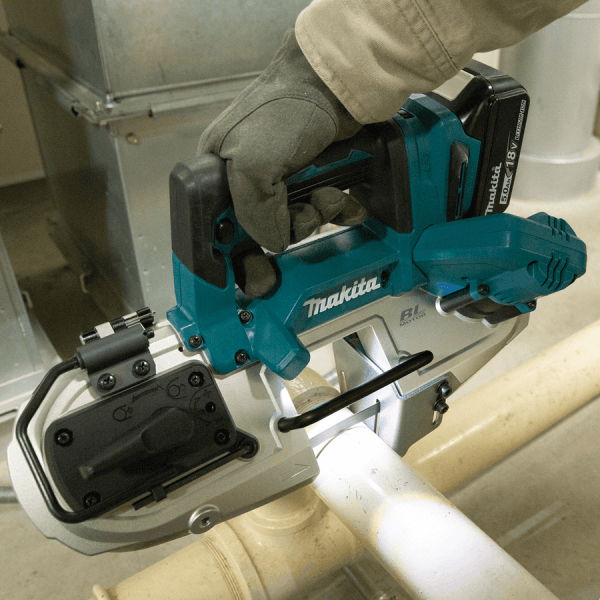

DPB183Z – 64mm (2-1/2″) Cordless Portable Band Saw 18V LXT® Li-Ion [Bare Tool]- BL motor delivers 3.2 m/s (630 ft./min.) blade speed for faster cutting
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- BL motor is electronically controlled to optimize battery energy use for longer run time per charge
- BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
- Stable cutting with highly rigid aluminum structure; Rigid aluminum die-cast frame and gear housing minimizes the blade from sliding off the wheel; The rigidity also allows for increasing the tension on the blade to minimize the blade from slipping on the wheel
- 66 mm cutting capacity; Large cutting capacity allows for single-pass cutting of 65 mm x 45 mm light gauge steel stud
- Constant speed control minimizes the reduction in blade speed to provide stable cutting
- Variable speed control by dial; An optimum cutting speed can be selected to suit application
- Catch bracket protects the tool body from damage by hitting against workpiece
- Electric brake for maximum productivity and increased operator safety
- Aluminum diecast frame and gear housing for increased durability
- Drastically reduced size has been achieved by relocating the handle for easier operation even in tight spaces
- Easy blade track adjustment simply by turning the screw
- Redesigned structure of wheel cover and frame (lowered aluminum portion than wheel) for easy installation/removal of blade when the wheel cover is open
- Twin LED job light with pre-glow and afterglow functions illuminates the work area
- Adjustable stopper plate convenient to cut pipes near walls, floors and ceilings
- Tool hook secures the tool when not in use
- Easy-to-grip handle with elastomer surface for anti-slip
- Wheel cover encloses the blade outside the cutting area making the saw suitable for one-handed operation. Lock-off button minimizes accidental startup. On-tool storage for hex wrench. Battery protection circuit protects against overloading, over-discharging and over-heating.
Specifications
Capacity | Round: 66 mm (2-5/8″) |
Square: 66 x 66 mm (2-5/8 x 2-5/8″) | |
Blade Speed | 0 – 3.2 m/s (0 – 630 ft/min.) |
Blade Size | Length: 835 mm (32-7/8″) |
Width: 13 mm (1/2″) | |
Thickness: 0.5 mm (0.02″) | |
Max Output | 490 W |
Vibration Level | Cutting Metal: 2.5 m/s² or less |
Vibration K Factor | Cutting Metal: 1.5 m/s² |
Sound Pressure Level | 80 dB(A) |
Noise K Factor | 3 dB(A) |
Dimensions (L x W x H) | 392 x 174 x 242 mm (15-1/2 x 6-7/8 x 9-1/2″) |
Net weight | 3.6 – 3.9 kg (7.9 – 8.6 lbs.) |
Inclusion:
Band Saw Blade, Hex Wrench
Lifetime Service Warranty
