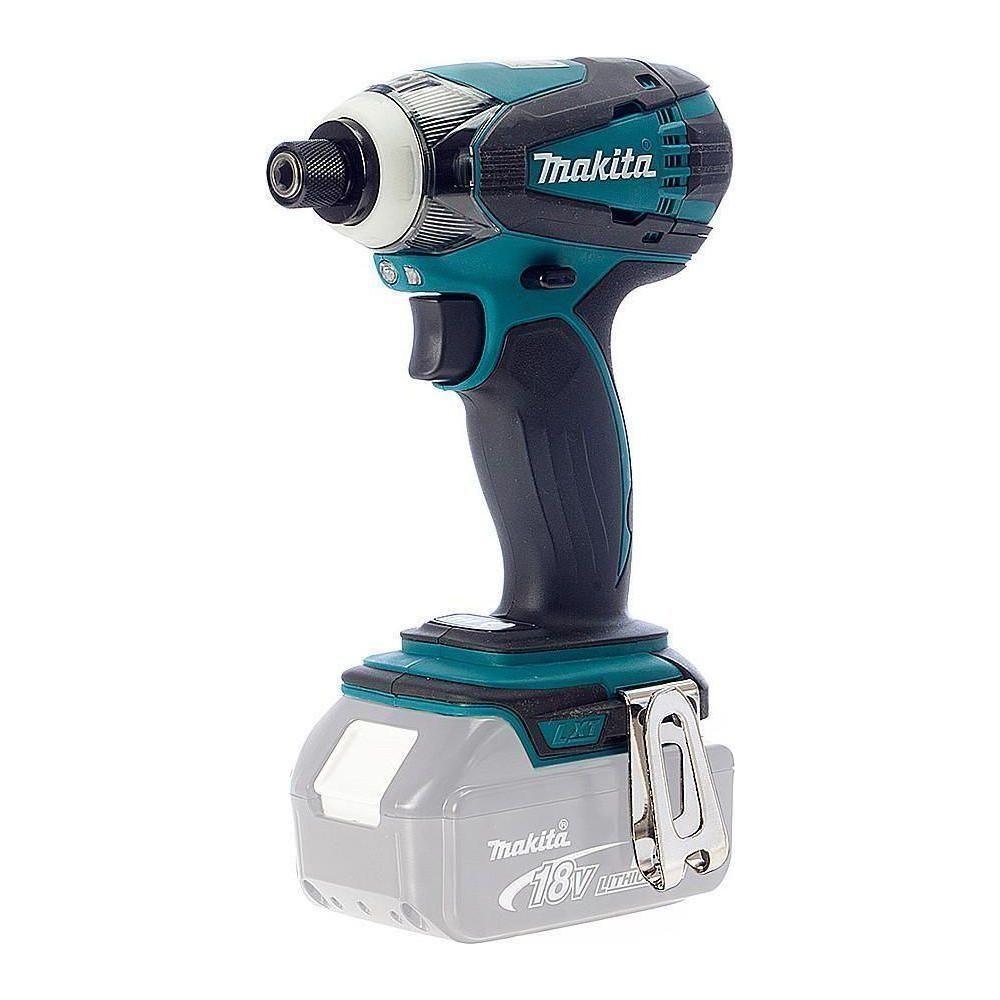

Makita DTD146Z 18V Cordless Impact Driver [LXT-Series] (Bare)

by Makita
₱5,250.00
-

 It's what's INSIDE that counts.


HIGHLIGHTS:

  • Capacity with Machine screws : M4 - M8 (5/32" - 5/16")
  • Capacity with Standard bolt : M5 - M14 (3/16" - 9/16")
  • Capacity with High tensile bolt : M5 - M12 (3/16" - 1/2")
  • Length capacity with Coarse thread : 22 - 125 mm (7/8" - 4-7/8")
  • Impacts per minute : 0 - 3,200 ipm
  • No load speed : 0 - 2,300 rpm
  • Maximum fastening torque : 160 N.m (1,420 in.lbs)



DESCRIPTION:

  • The Makita DTD146 Cordless Impact Driver features ergonomically designed handle and 4-pole motor, plus compact design, enhanced dust and drip-proof performance and battery fuel gauge.



FEATURES

  • Very compact with overall length of only 138mm
  • Weighs only 1.5kg
  • One touch bit installation
  • Phosphorescent bumper
  • Enhanced dust and drip-proof performance
  • Battery level indicator
  • Compact and lightweight, 4-pole motor
  • LED Job light with afterglow
  • Forward/reverse rotation
  • Variable speed trigger
  • Electronic brake



SPECIFICATION

  • Voltage: 18v
  • Max Torque (Nm): 160
  • Brake Type: Electric
  • LED Job Light: Yes / Pre-glow & After-glow
  • Battery Capacity Indicator: Yes
  • Battery Compatibility: 18v Lithium-Ion (LXT)
  • Rotation: Forward & Reverse
  • Variable Speed Control Trigger: Yes
  • No Load Speed (RPM): 0-2300
  • Machine Screw Capacity: M4-M8
  • Standard Bolt Capacity: M5-M14
  • High Tensile Bolt Capacity: M5-M12
  • Coarse Thread Length Capacity (mm): 22-125
  • Max. Impacts Per Minute (ipm): 0-3200
  • Driving Shank: 1/4" Hex
  • Overall Length (mm): 138
  • Net Weight (Kg with 1.5/2Ah Battery): 1.3
  • Net Weight (Kg with 3/4/5Ah Battery): 1.5

NOISE & VIBRATION

  • Sound Pressure Level (LpA): 93 dB (A)
  • Sound Power Level (LWA): 104 dB (A)
  • Sound Uncertainty (K): 3 dB (A)
  • Vibration Emission (ah) (Using Max Capacity of Tool): 15.5 m/s²
  • Vibration Uncertainty (K): 2.0 m/s²



Lifetime Service Warranty
