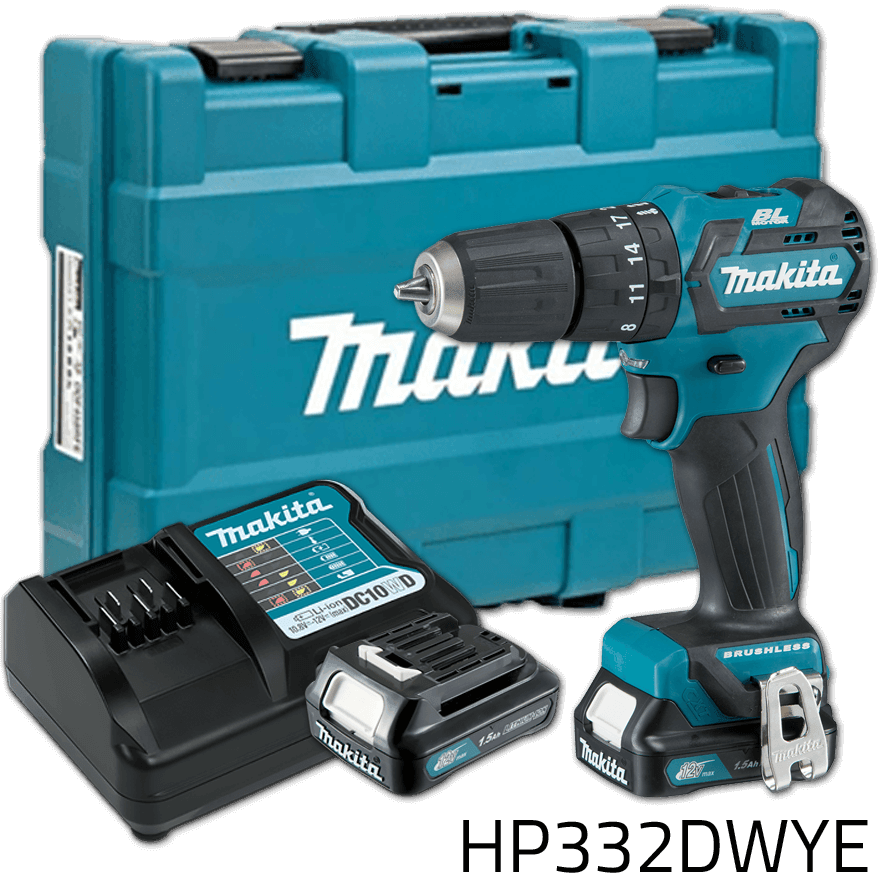

- Makita HP332DWYE 12V Cordless Hammer Drill (CXT-Series) Makita HP332DWYE 12V Cordless Hammer Drill (CXT-Series)
- Description
- Reviews
It's what's INSIDE that counts.
Makita HP332DWYE 12V Cordless Hammer Drill (CXT-Series)- Ultra-compact design and more work amount thanks to the newly developed BL motor and newly developed 12V max slide Lithium-Ion battery
- BL motor delivers 35 N·m of max torque
- BL motor is electronically controlled to optimize battery energy use for longer run time per charge
- BL motor with high power to weight and size ratio
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
- 0-22,500 IPM for fast hammer drilling in masonry materials
- Compact and ergonomic design at only 168 mm long
- Lightweight for reduced operator fatigue
- 12V max slide battery design enables the tool to stand on its own for user convenience
- Multi-contact terminals ensure stable contact with battery even under extreme vibration
- Ergonomically designed handle with soft grip provides increased comfort
- Built-in LED light with pre-glow and afterglow functions illuminates the work area
- Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size
- Variable 2-speed (0-450 & 0-1,500 RPM) for a wide range of drilling, fastening and hammer drilling applications
- Best possible ergonomic handle for drilling applications
- Convenient 10 mm keyless chuck for quick bit changes
- Battery protection circuit protects against overloading, over-discharging and over-heating
- 20 Clutch settings and drill mode for added fastening control.
- Reversing switch is conveniently located. Mechanical 2-speed gearing;
- High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque.
- Electric brake for maximum productivity and increased operator safety.
- Ideal for work in tight spaces.
- Durable, reversible belt clip convenient for temporary tool hanging.
- eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Specifications
Capacity | Steel / Wood / Masonry: 10 / 28 / 8 mm (3/8″ / 1-1/8″ / 5/16″) |
Chuck Capacity | 0.8 – 10 mm (1/32″ – 3/8″) |
Impacts Per Minute (IPM) | High / Low: 0 – 22,500 / 0 – 6,750 |
No Load Speed (RPM) | High / Low: 0 – 1,500 / 0 – 450 |
Max Fastening Torque | Hard / Soft: 35 / 21 N·m (310 / 190 in.lbs.) |
Max Lock Torque | 32 N·m (280 in.lbs.) |
Vibration Level | Hammer Drilling into Concrete: 12.5 m/s² |
Vibration K Factor | Hammer Drilling into Concrete: 1.5 m/s² |
Vibration Level | Drilling into Metal: 2.5 m/s² or less |
Vibration K Factor | Drilling into Metal: 1.5 m/s² |
Sound Pressure Level | 82 dB(A) |
Sound Power Level | 93 dB(A) |
Noise K Factor | 3 dB(A) |
Dimensions (L x W x H) | 168x66x217 mm (6-5/8″x2-5/8″x8-1/2″) |
Net weight | 1.1 – 1.3 kg (2.4 – 2.8 lbs.) |
Inclusions:
Phillips Bit, Belt Clip, Battery, Charger
Lifetime Service Warranty
