It's what's INSIDE that counts.

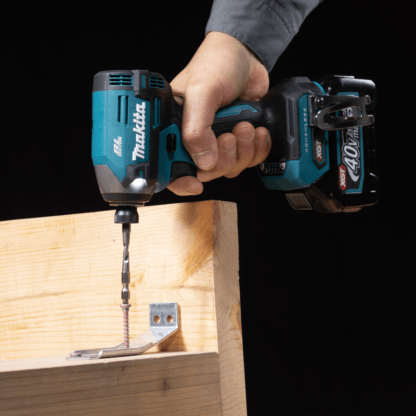

Makita TD003GA201 40V Cordless Impact Driver 210Nm (XGT) [Kit]
Cordless Impact Driver 40Vmax XGT™ Li-ion [KIT]
-
40Vmax XGT BL Cordless T-Mode 210 N·m (1,860 in.lbs.) Impact Driver
-
Combination of sufficient fastening performance and high cost-competitiveness achieved by carefully selecting the functions
-
Aluminum hammer case + Black bumper
-
Simple impact power selection:
∙ 4 modes (Max/ Hard/ Medium/ Soft for bolt)
∙ 1 T-mode (for thin metal only)”
“Max fastening torque: 210 N·m
-
Despite increased cost-competitiveness, the max fastening torque is close to that of TD001G, the flagship model of our XGT Impact drivers
-
Extended overall length ensures sufficient performance of hammer, enabling to outperform TD001G in heavy-duty operation”
“Light mode
-
To turn on the light, set F/R change lever in the neutral position, then pull the switch trigger. To turn off the light, pull the switch trigger again
-
The light turns off automatically one hour after turned on”
-
One LED job light each on both sides with pre-glow and after-glow functions
-
Excellent performance in continuous heavy-duty operation
-
High power 40Vmax XGT Li-Ion battery reduces the current load on the controller, allowing for continuous heavy-duty operation
-
Constant speed control allows to operate the tool at the same speed as that at which you operate the tool on a full charged battery, even when the remaining battery capacity becomes low
“One-touch bit installation
-
Smoother installation of the bit has been achieved by reducing the resistance against insertion of the bit
-
By increasing the load of sleeve holding spring, we have reduced the chance of unexpected falling off of the bit”
-
Anti-bit wobbling structure
-
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
-
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
-
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
-
Variable speed control by trigger for precise fastening in a wide variety of applications
-
Ergonomically designed handle with rubberized soft grip for increased comfort
-
Reversing switch is conveniently located
-
Durable, reversible belt clip convenient for temporary tool hanging
-
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
-
Electric brake for maximum productivity
-Trigger lock function
-Anti-restart function
-Overload protection (fuse)
-A-mode (Assist mode)
-Tool-less bit change
-Automatic impact stop system (Available in T-mode which is for driving self-drilling screw in thin metal only)
-Battery protection circuit protects against overloading, over-discharging and over-heating”
Specifications:
CAPACITY | Machine screw: M4 – M8 (5/32 – 5/16″) |
Standard bolt: M5 – M16 (3/16 – 5/8″) | |
High strength bolt: M5 – M14 (3/16 – 9/16″) | |
Coarse thread (in length): 22 – 125 mm (7/8 – 4-7/8″) | |
Steel: 22 mm (7/8″) | |
Wood (Auger bit): 24 mm (15/16″) | |
Wood (Self-feed bit): N/A mm (N/A”) | |
MASONRY DRILL DIAMETER | N/A mm (N/A”) |
HOLE SAW DIAMETER | 38 mm (1-1/2″) |
SHANK/DRIVE | Hex Shank 6.35 mm (1/4″) |
NO LOAD SPEED (RPM) | Max / Hard / Med. / Soft / T mode: 0 – 3,700 / 0 – 3,200 / 0 – 2,100 / 0 – 1,100 / 0 – 2,400 |
IMPACTS PER MINUTE (IPM) | Max / Hard / Med. / Soft / T mode: 0 – 4,100 / 0 – 3,600 / 0 – 2,600 / 0 – 1,400 / N/A |
FASTENING TORQUE | Hard / Med. / Soft: 170 / 50 / 20 N·m (1,510 / 440 / 180 in.lbs.) |
MAX FASTENING TORQUE | 210 N·m (1,860 in.lbs.) |
MAX OUTPUT | 520 W |
VIBRATION LEVEL | Impact tightening of fasteners of the maximum capacity of the tool: 11.9 m/s² |
VIBRATION K FACTOR | Impact tightening of fasteners of the maximum capacity of the tool: 1.5 m/s² |
SOUND PRESSURE LEVEL | 95 dB(A) |
SOUND POWER LEVEL | 106 dB(A) |
NOISE K FACTOR | 3 dB(A) |
DIMENSIONS (L X W X H) | w/o Battery: 121 x 86 x 195 mm (4-3/4 x 3-3/8 x 7-5/8″) |
w/ BL4020 / BL4025: 121 x 86 x 245 mm (4-3/4 x 3-3/8 x 9-5/8″) | |
w/ BL4040: 121 x 86 x 252 mm (4-3/4 x 3-3/8 x 9-7/8″) | |
w/ BL4050F: 121 x 86 x 274 mm (4-3/4 x 3-3/8 x 10-3/4″) | |
w/ BL4080F: 121 x 86 x 293 mm (4-3/4 x 3-3/8 x 11-1/2″) | |
NET WEIGHT | 1.7 – 2.9 kg (3.7 – 6.4 lbs.) |
Accessories (may vary)
Hook, Connector plastic case, Battery (2), Phillips bit, Inner tray
Lifetime Service Warranty
