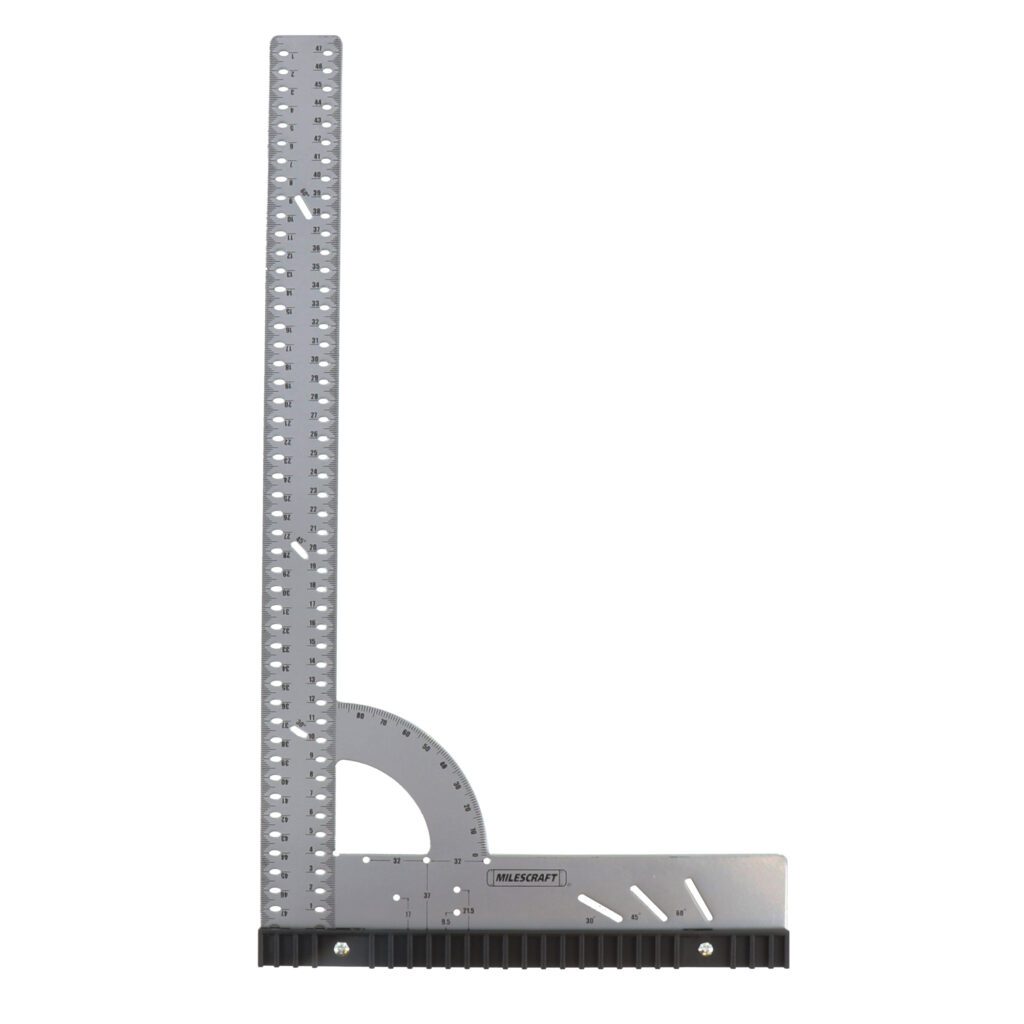

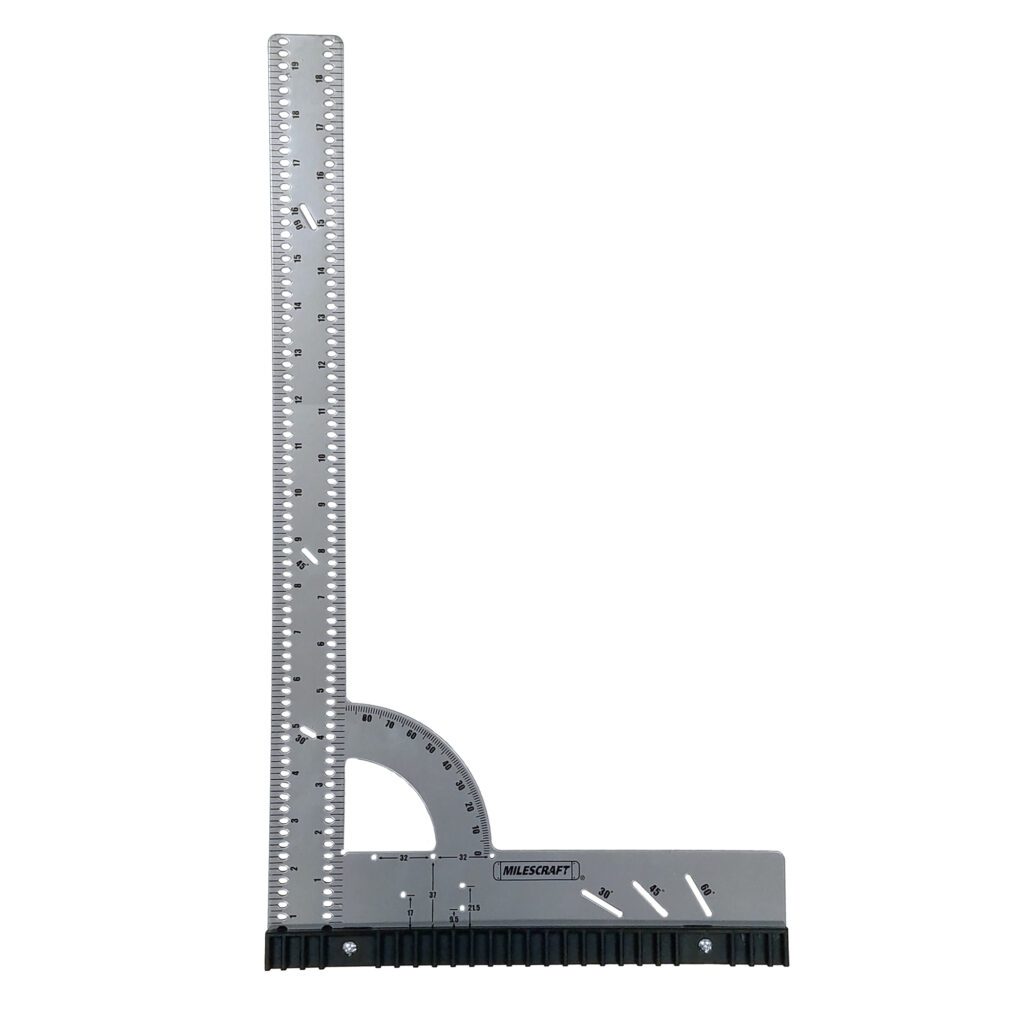

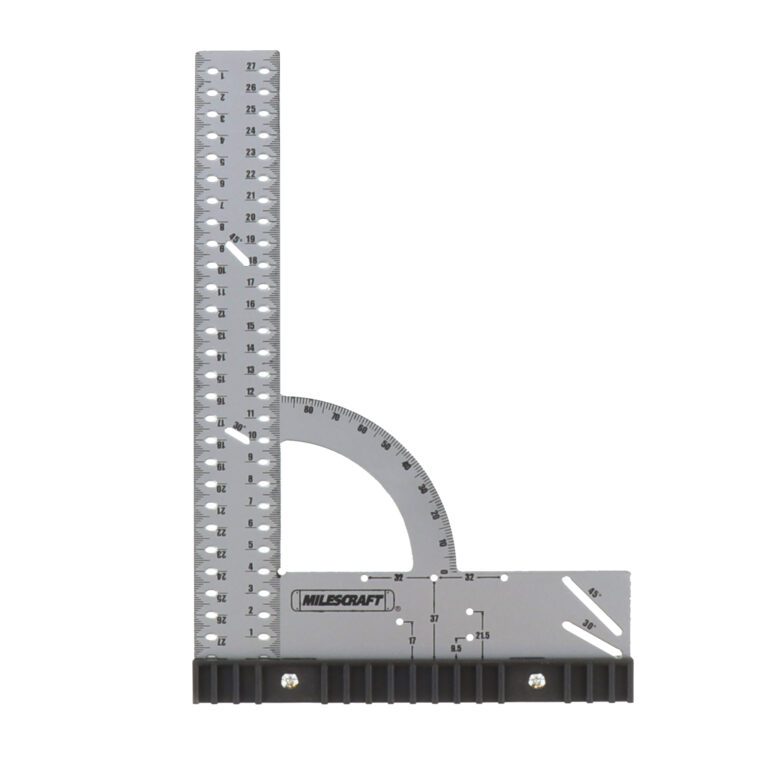

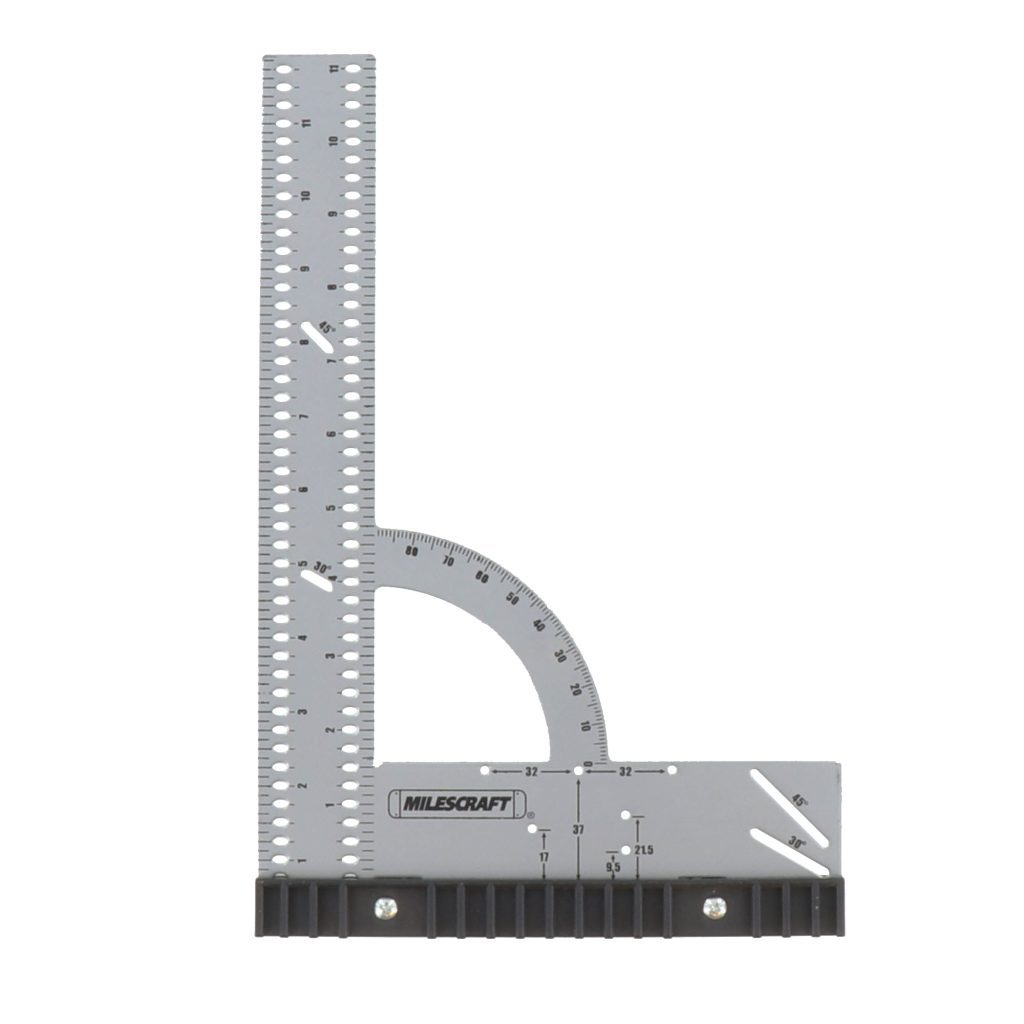

Milescraft FramingSquare Layout Square

The Milescraft FramingSquare Layout Square is a versatile measuring and layout tool designed for precision woodworking, cabinetry, and construction applications. Available in multiple sizes and metric/imperial versions, this multi-functional square helps ensure accurate marking, alignment, and angle measurement for a wide range of projects.

Key Benefits

• Multi-functional design for layout, measurement, and angle marking
• Built-in retractable edge guide ensures consistent alignment
• Integrated quick angle finders for fast and accurate angle setup

Product Overview

The Milescraft FramingSquare is engineered to improve accuracy and efficiency in layout and marking tasks. It features clearly marked reference measurements, allowing precise positioning for shelf pins, rafix connectors, and other joinery applications.

The built-in retractable edge guide helps maintain consistent positioning along edges, while the included euro-style hinge mounting holes simplify cabinet hardware installation. Integrated quick angle finders enable fast marking of common angles such as 30°, 45°, and 60°, depending on the model.

Available in both 300mm and 500mm sizes, and in standard or metric variants, this tool is suitable for both professional and DIY woodworking environments.

Ideal Applications

• Layout and marking for cabinetry and furniture
• Installing shelf pins and rafix connectors
• Measuring and marking common angles

Technical Specifications

What’s Included

• 1 pc Milescraft FramingSquare Layout Square (selected model)

Learn more about our Warranty Policy or contact us for professional assistance.
