Mitutoyo Blade Micrometers, Series 422, 122 (Non-Rotating Spindle Type)

₱15,400.00
-
 Precision is our Profession

Mitutoyo Blade Micrometers, Series 422, 122 (Non-Rotating Spindle Type)

  • The anvil and the spindle have a blade for measuring the groove diameter of shafts, keyways and other hard-to-reach areas.
  • With ratchet stop for constant force.
  • Non-slip grip finish (digital models).
  • Speedy spindle feed of .4”/10mm /rev.
    (Quickmike type).
  • With a standard bar except 0 - 1” and 0 -25mm model.
  • Supplied in fitted plastic case.

      Technical Data

      Accuracy: Refer to the list of specifications
      Resolution*: .00005"/0.001mm or 0.001mm
      Graduation**: .0001" or 0.01mm
      Parallelism: .00012” / 3μm for models up to 3” / 75mm
      (3+R/100)μm for models over 75mm,
      R=max. range (mm) .00016” for 4” models
      Display*: LCD
      Battery*: SR44 (1 pc.), 938882
      Battery life*: Approx. 2.4 years under normal use
      *Digital models **Analog models

      Function of Digital Model

      Origin-set, Zero / ABS, Data hold, Data output,
      inch/mm conversion (on inch/metric models only)
      Function lock
      Alarm: Low voltage, Counting value composition error

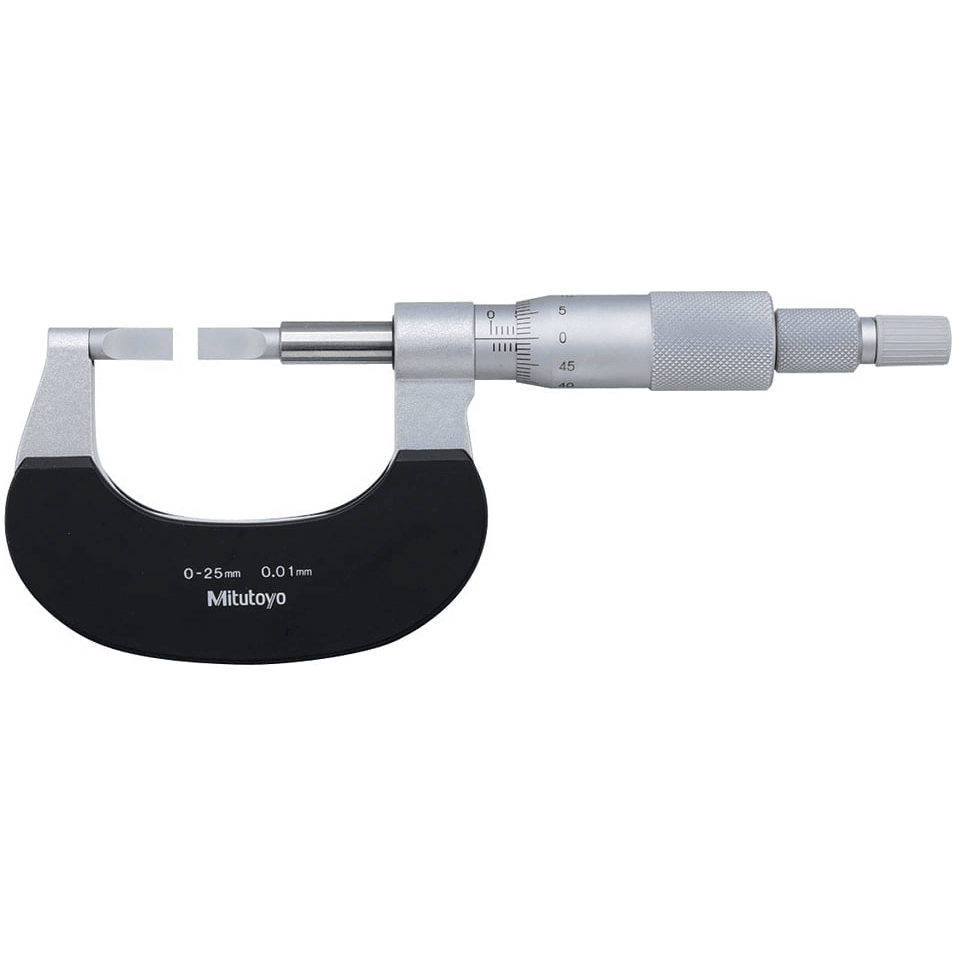

      Blade Micrometers, Series 122 (Non-Rotating Spindle Type)
      Code Remarks Range Graduation Price
      Metric
      122-101 Type A 0-25mm 0.01mm 12,000.00
      Digimatic Blade Micrometers, Series 422 (Non-Rotating Spindle Type)
      Code Remarks Range Graduation Price
      Metric
      422-233-30 Type A 75-100mm 0.001mm 41,400.00
