Mitutoyo Combination Square Set, Series 180

₱30,400.00
-
 Precision is our Profession

Mitutoyo Combination Square Set, Series 180

  • Measuring heads are attached to the graduated steel rule (blade), allowing versatile measurements on various types of workpieces.
  • The measuring heads come hardened or cast iron-not hardened.
  • Economy sets without a protractor head are
    available.

Technical Data

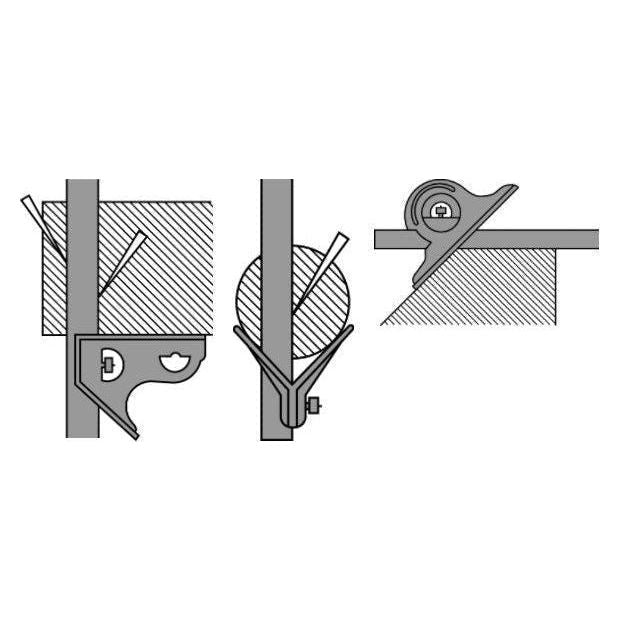

Square head: Used to set the rule at 90 degrees or 45
degrees to an edge of a workpiece.
Center head: Used to locate centers of round
workpieces.
Protractor head: Used to set the rule at a desired angle
to an edge of a workpiece. Also used
for measuring angles.

Combination Square Set, Series 180
Code Reading Range Graduation Price
Metric
180-910B CMST2-30E 300mm 1mm, 0.5mm 30,400.00
Inches/Metric
180-907B CMST2-12C 12"/300mm 1/32", 1/64"/ 1mm,0.5mm 32,000.00
Inches
180-905B (Complete) CMST2-12A 12" 1/8", 1/16", 1/32", 1/64" 32,000.00
180-903B (Semi-Complete) CMST1-12A 12" 1/8", 1/16", 1/32", 1/64" 19,100.00
180-906B CMST2-12B 12" 1/32", 1/64", 1/50", 1/100" 32,000.00
