Mitutoyo Thickness Gage, Series 547, 7

₱5,600.00
-
 Precision is our Profession

Mitutoyo Thickness Gage, Series 547, 7

Thickness Gages offer a quick and efficient means of inspection with a convenient grip handle, thumb trigger and spring-loaded spindle. The various models cover a range of applications.

  • Wide range of applications with various types of measuring faces (on the spindle and anvil).
  • Digital models incorporate Mitutoyo's popular ID-C and ID-S Series Digimatic
    Indicators to provide error-free LCD readings, as well as data output for SPC analysis.

    Technical Data
    Function of Digital Models
    IDS Types
    • ON/OFF
    • Inch / mm Conversion
    • Origin
    • ±Direction Changeover
    • SPC Output
    • Battery Life: 20,000 hrs
    • Power Supply: Silver Oxide Cell (SR-44 1pc.)

    IDC Types
    • ON/OFF
    • Inch / mm Conversion
    • Zero / ABS
    • ±Direction Changeover
    • SPC Output
    • Battery Life: 5,000 hrs
    • Power Supply: Silver Oxide Cell (SR-44 1pc.)
    • Preset
    • Provides go/no-go judgment
    • Face Rotates 330˚

    Dial Thickness Gage, Series 7
    Code Base Range Graduation Price
    Metric

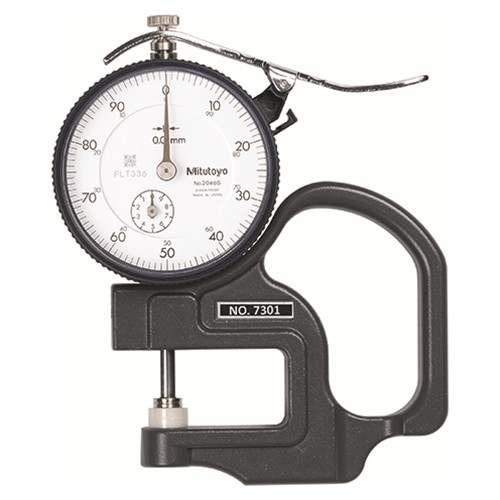

    7301 30mm throat 10mm 0.01mm
    std.,ceramic spindle&anvil
    5,600.00

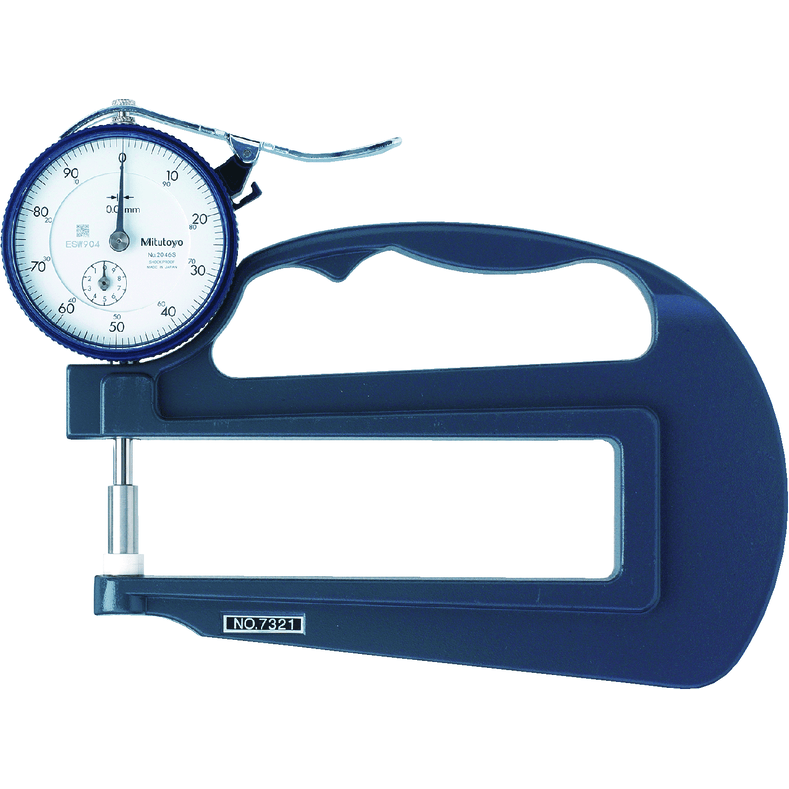

    7321 120mm throat 10mm 0.01mm
    deep throat,ceramic spindle&anvil
    8,200.00

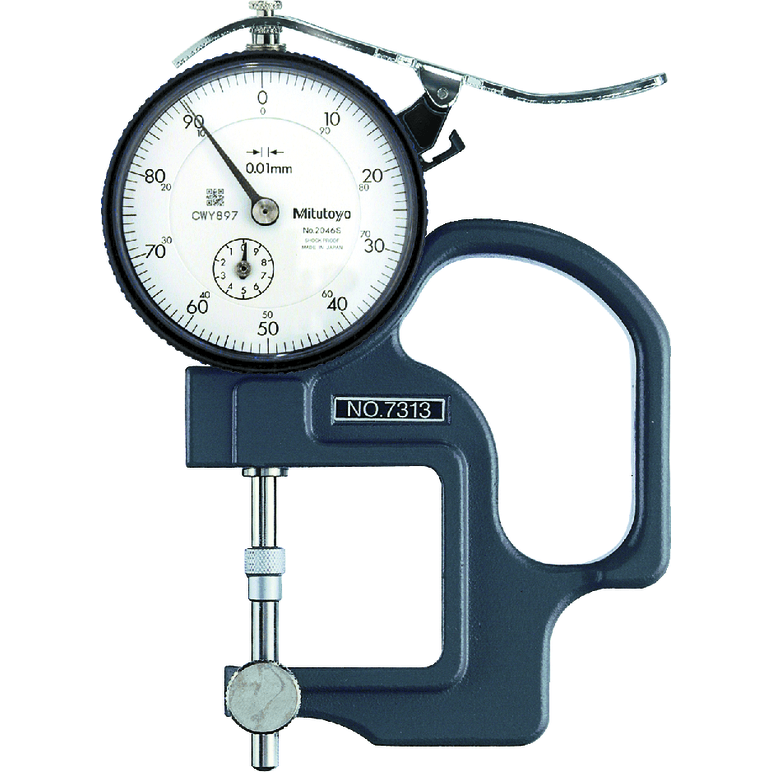

    7313 30mm throat 10mm 0.01mm
    lens thickness
    7,700.00

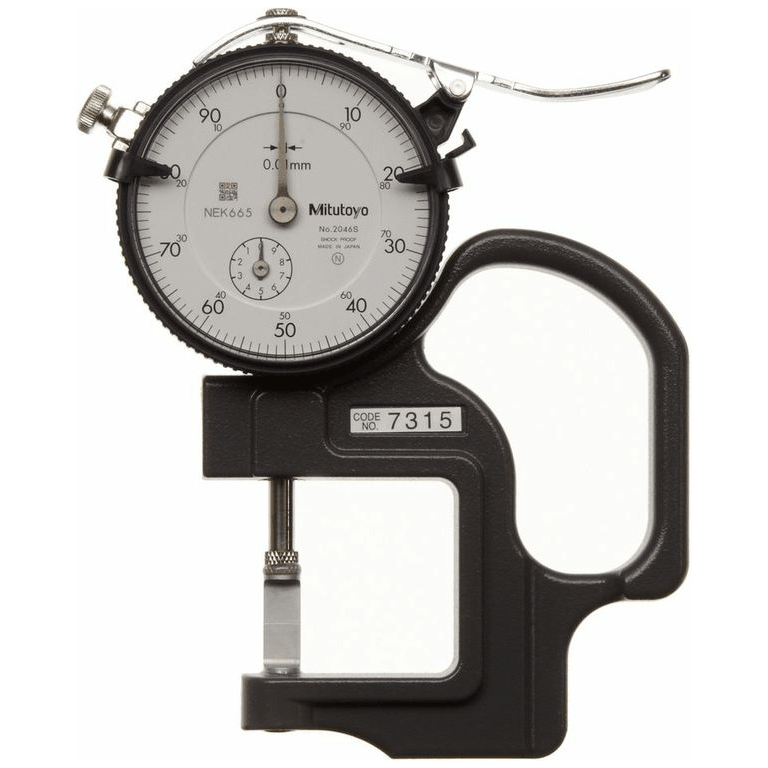

    7315 30mm throat 10mm 0.01mm
    groove thickness
    8,400.00

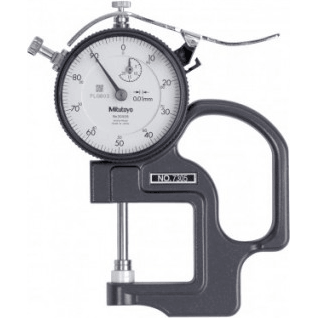

    7305 30mm throat 20mm 0.01mm
    std.,ceramic spindle&anvil
    8,000.00
    Inches

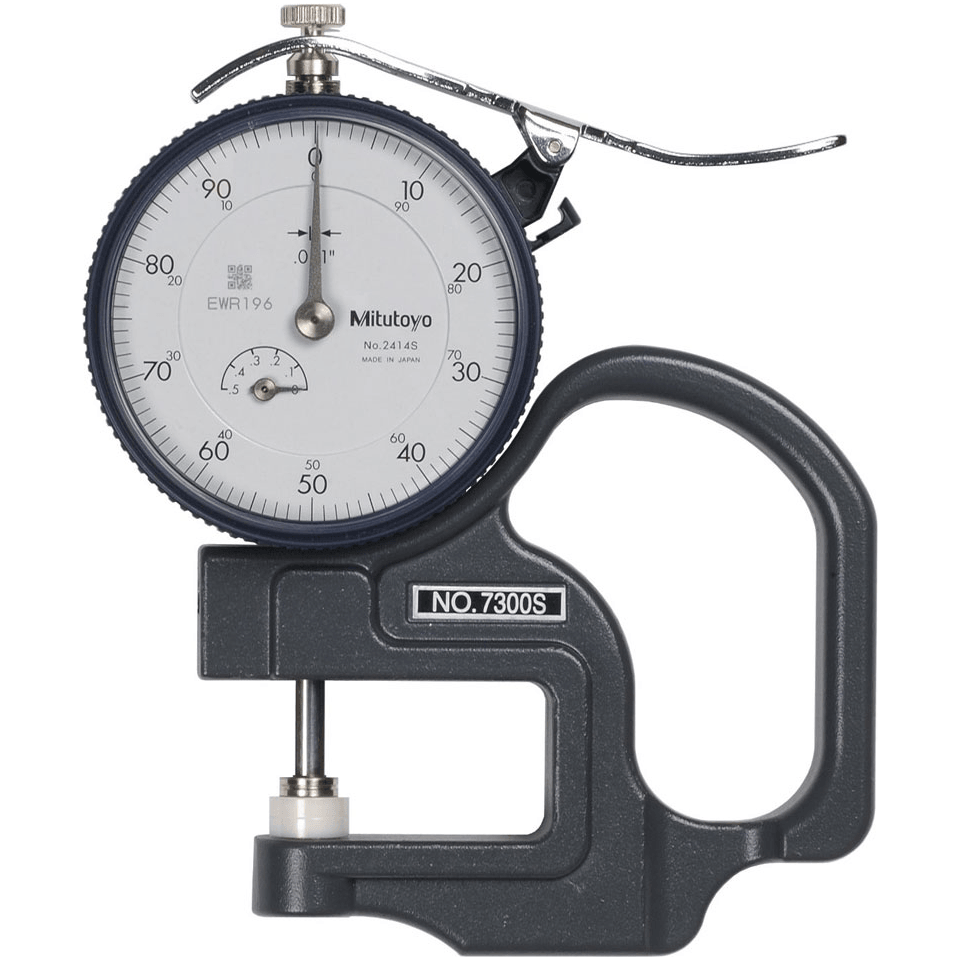

    7300S 1.2" throat 0-0.5" 0.001"
    std.,ceramic spindle&anvil
    9,800.00

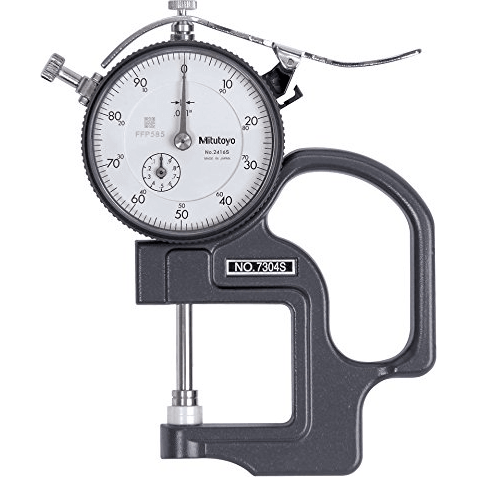

    7304S 1.2" throat 0-1" 0.001"
    std.,ceramic spindle&anvil
    10,000.00

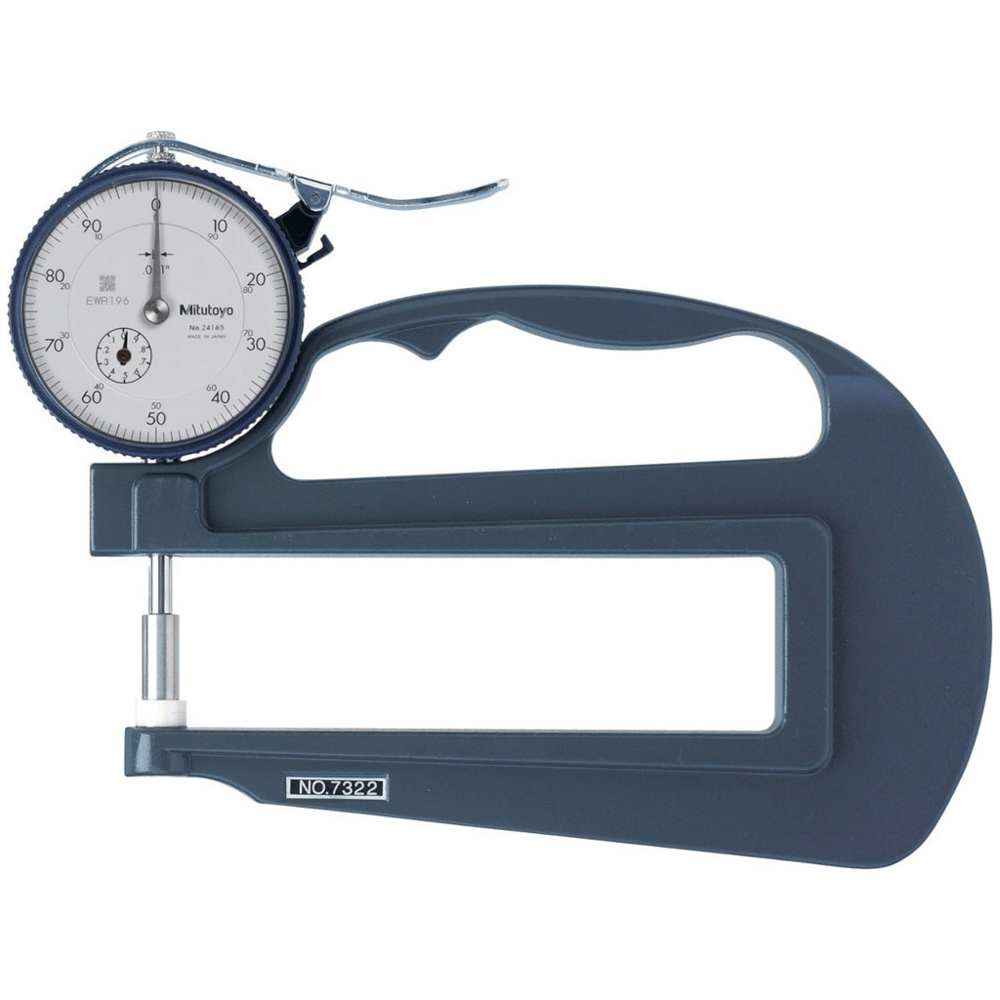

    7322S 4.72" throat 0-1" 0.001"
    deep throat,ceramic spindle&anvil
    11,900.00
    Digimatic Thickness Gage, Series 547
    Code Remarks Range Graduation Price
    Metric

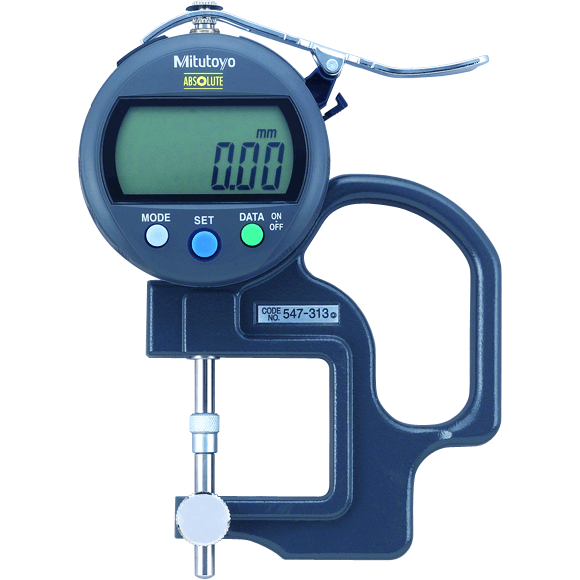

    547-313 Lens thickness 0-10mm 0.01mm 23,700.00

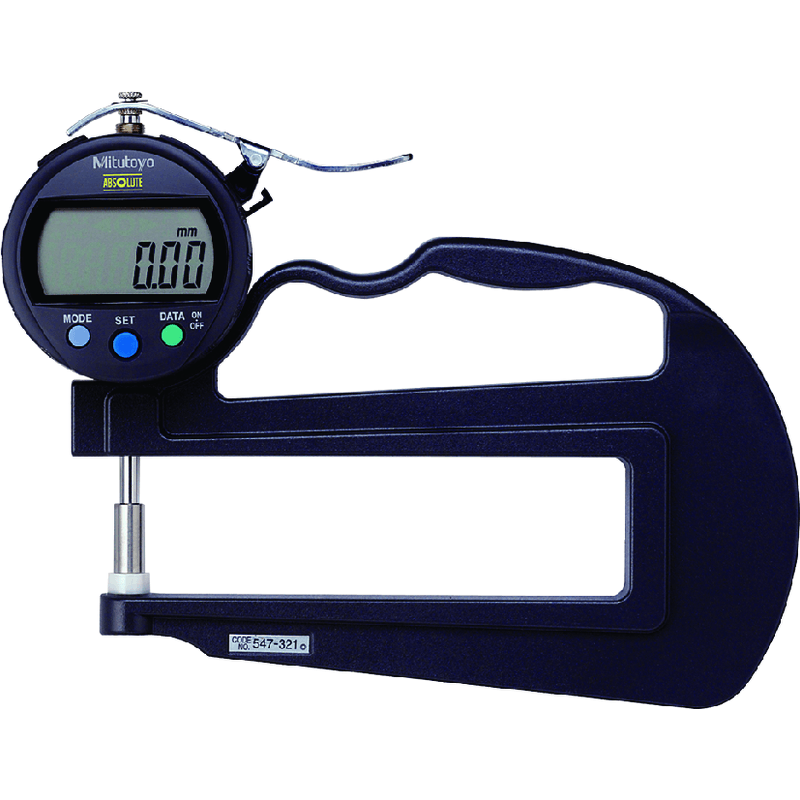

    547-321 Deep throat
    ceramic spindle&anvil
    0-10mm 0.01mm 24,400.00
