Mitutoyo Digimatic Height Gage, Series 192

₱58,100.00
-
 Precision is our Profession

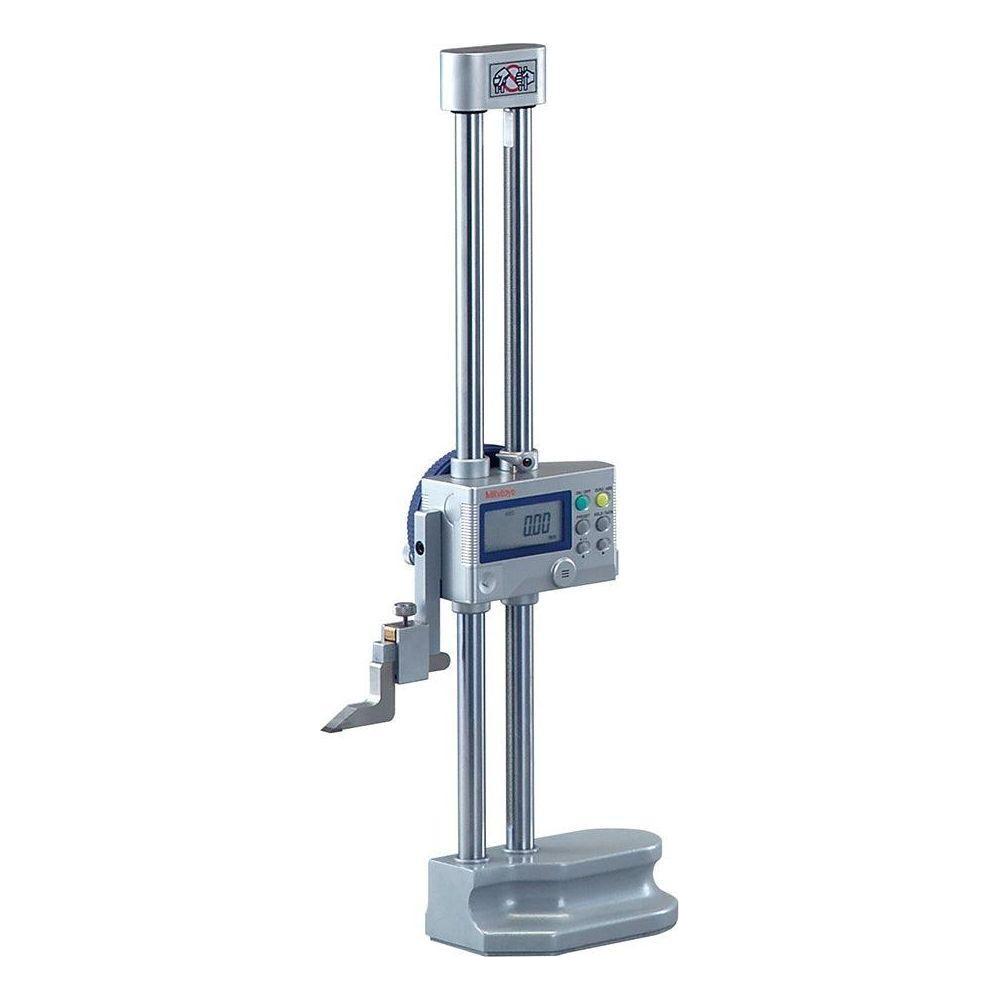

Mitutoyo Digimatic Height Gage, Series 192
Standard Type with SPC Data Output

  • Switchable resolution (.0002”/0.005mm or
    .0005”/0.01mm)
  • Easy-to-use standard type.
  • Carbide-tipped scriber is provided.
  • Double-column structure ensures high
    measuring accuracy.
  • Coarse/fine feed switching.
  • Two preset reference heights.

Technical Data

  • Accuracy: Refer to the list of specifications
  • Resolution: .0005”(0.01mm) [.0002”(0.005mm)] or 0.01mm and 0.005mm

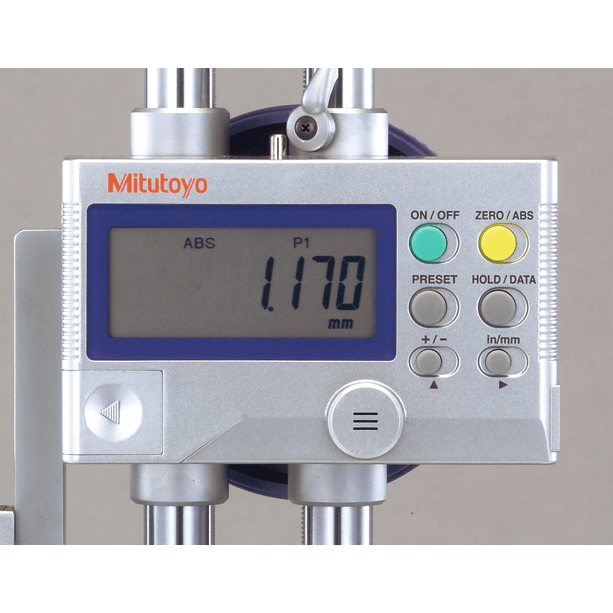

  • Display: LCD, 7-digit, character height 11mm
  • Max. response speed: 500mm/s
  • Battery: SR44 (1 pc.), 938882
  • Battery life: Approx. 2000 hours under normal use

Function

  • Zero-setting, ABS/INC switching, Two presets, Probe tip diameter compensation, -/+ switching, Power ON/OFF, Data hold, With Output, inch/mm conversion (on inch/metric models only)
  • Alarm: Low voltage, Counting value composition error

Standard Scriber Provided

  • Metric models: Carbide-tipped scriber (07GZA000) andscriber clamp (05GZA033)
  • Inch/Metric models: Carbide-tipped scriber (900258) and scriber clamp (901385)
Code Model Range Resolution Price
Metric
192-613 HD30A 300mm 0.01mm 58,100.00
192-663 HDM-20A 300mm 0.01mm 90,100.00
192-614 HD-60A 600mm 0.01mm 79,500.00
192-664 600mm 0.01mm 104,800.00
Inches/Metric
192-630-10 HD-12B 12"/300mm 0.0005"/0.01mm 71,300.00
192-631-10 18"/450mm 0.0005"/0.01mm 96,900.00
192-632-10 HD-24B 24"/600mm 0.0005"/0.01mm 96,900.00
