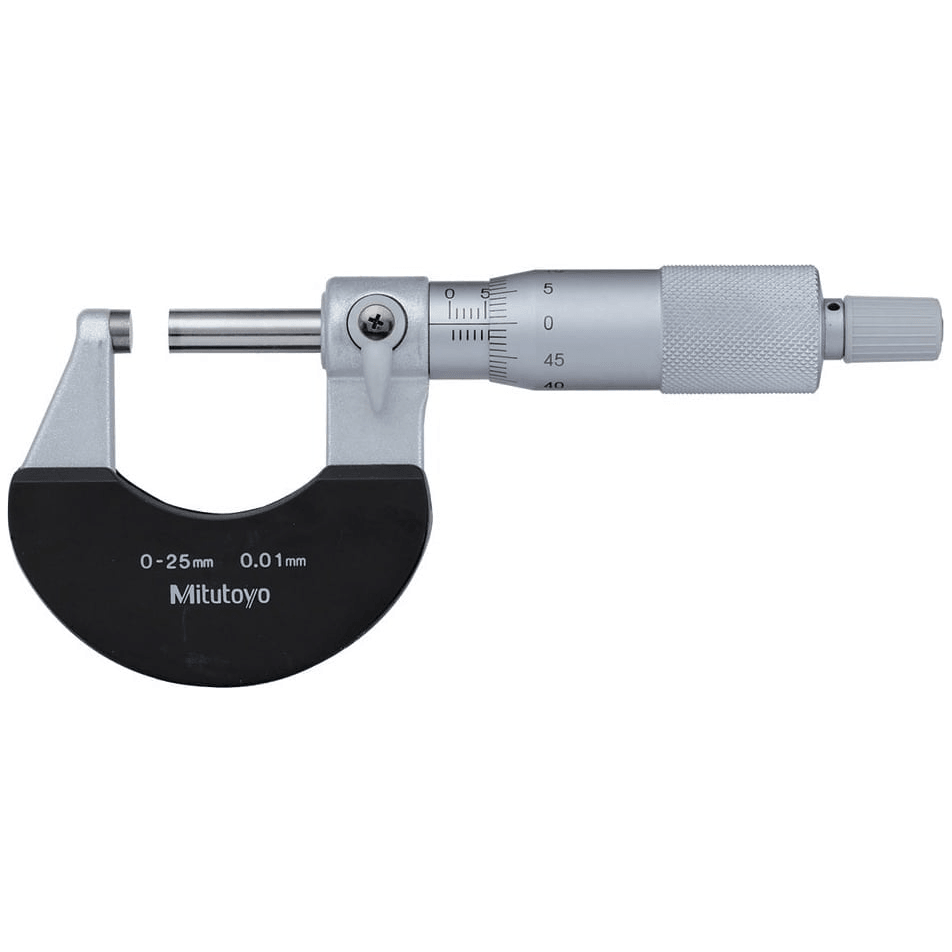

Mitutoyo Outside Micrometer, Series 102
With ratchet stop
- Heat-insulated frame, tapered (on the anvil side) for hard-to-reach places.
- With a standard bar except for 0 - 25mm model.
- A ratchet stop for a constant measuring force.
- Supplied in a fitted plastic case.
Technical Data
- Graduation: 0.01mm
- Flatness: 0.3μm
- Parallelism: 1μm for 25mm model
- 3μm for models up to 100mm
- Measuring faces: Carbide tipped
Outside Micrometer, Series 102 | ||||
Code | Remarks | Range | Graduation | Price |
Metric | ||||
102-301 | w/ Ratchet Stop | 0-25mm | 0.001mm | 3,900.00 |
