Mitutoyo Outside Micrometer, Series 104 (with interchangeable anvils)

₱9,700.00
-
 Precision is our Profession

Mitutoyo Outside Micrometer, Series 104 (with interchangeable anvils)

  • IP65 water/dust protection (Series 340*).
    *Models with a range up to 300mm.

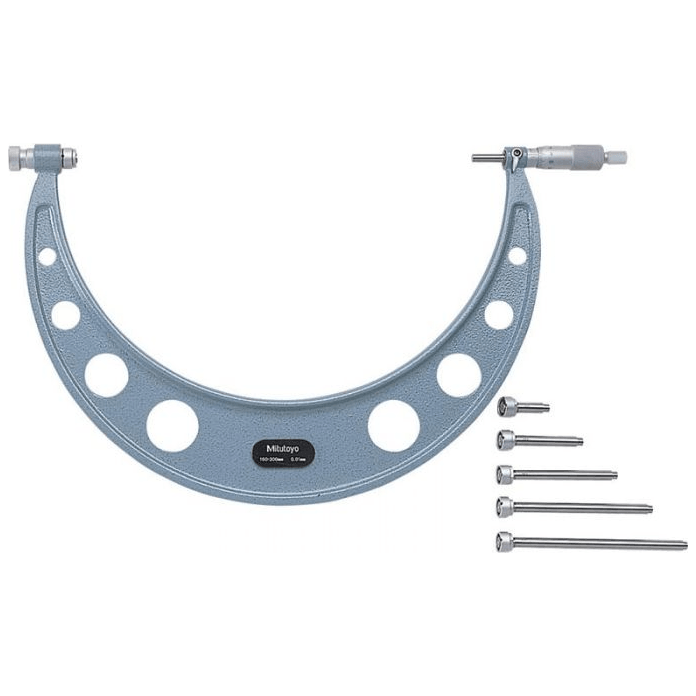

  • Wide measuring range with interchangeable anvils.
  • With a ratchet stop for constant force.

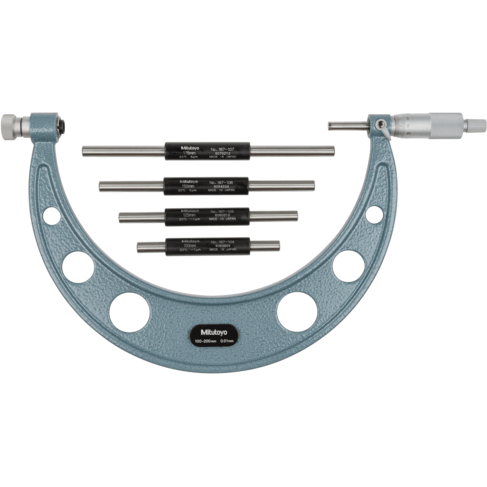

  • Supplied with zero-setting standards bar for each range.
  • With SPC output (Series 340).

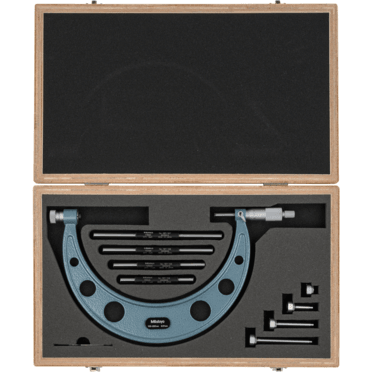

  • Supplied in fitted wooden case.

Technical Data

  • Accuracy: ±(4+R/75)μm, R=max. range (mm)
  • Resolution*: 0.001mm
  • Graduation**: 0.01mm
  • Flatness: 0.6μm for models up to 300mm
  • 1μm for models over 300mm
  • Parallelism: 2μm for models up to 75mm
  • 3μm for models up to 150mm
  • (2+R/100)μm for models over 150mm, R=max.
  • range (mm)
  • Measuring faces: Carbide tipped (spindle only)
  • Display*: LCD
  • Battery*: SR44 (1 pc.), 938882
  • Battery life*: Approx. 2.4 years (1.8 years for models over
  • 300mm) years under normal use
  • Dust/Water protection level*: IP65 (up to 300mm)
  • *Digital models **Analog modelsnnl

Function of Digital Model

  • Zero / ABS, Data hold, Preset, Data output,
  • inch/mm conversion (on inch/metric models only)
  • Function Lock, 2 Presets
  • Alarm: Low voltage, Counting value composition error
Outside Micrometer, Series 104 (with interchangeable anvils)
Code Model Range Graduation Price
Metric
104-171 0-50mm 0.01mm 9,700.00
104-139-A 0-100mm 0.01mm 15,600.00
104-135-A OMC-150 0-150mm 0.01mm 20,000.00
104-140-A OMC100-200 100-200mm 0.01mm 19,300.00
104-136-A OMC-300 150-300mm 0.01mm 29,100.00
104-141-A 200-300mm 0.01mm 22,700.00
104-142-A OMC-400 300-400mmm 0.01mm 30,800.00
104-143-A OMC-500 400-500mm 0.01mm 36,300.00
104-144-A OMC-600 500-600mm 0.01mm 43,500.00
104-145-A OMC-700 600-700mm 0.01mm 50,700.00
104-146-A OMC-800 700-800mm 0.01mm 63,000.00
104-147-A 800-900mm 0.01mm 74,100.00
104-148-A 900-1000mm 0.01mm 86,200.00
Inches
104-137 0-6" 0.001" 21,000.00
104-138 6-12" 0.001" 30,800.00
104-152 OMC-16 12-16" 0.001" 35,100.00
104-153 OMC-16-20 16-20" 0.001" 40,800.00
104-154 OMC-24 20-24" 0.001" 48,400.00
