Precision is our Profession
Mitutoyo Pocket Type Dial Test Indicators, Series 513
- Jeweled bearings ensure high sensitivity and accuracy.
- Reversible measuring direction.

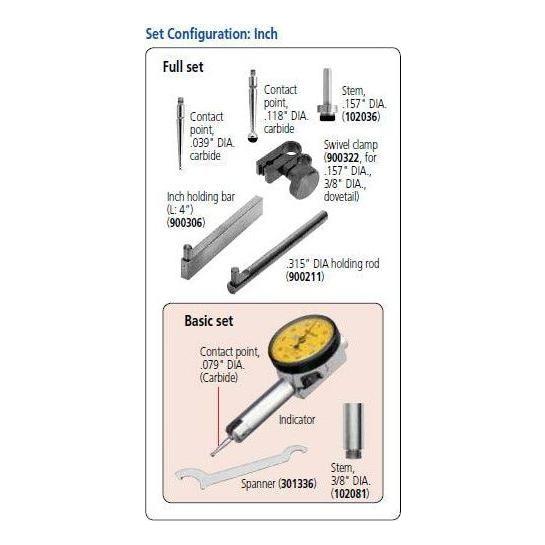

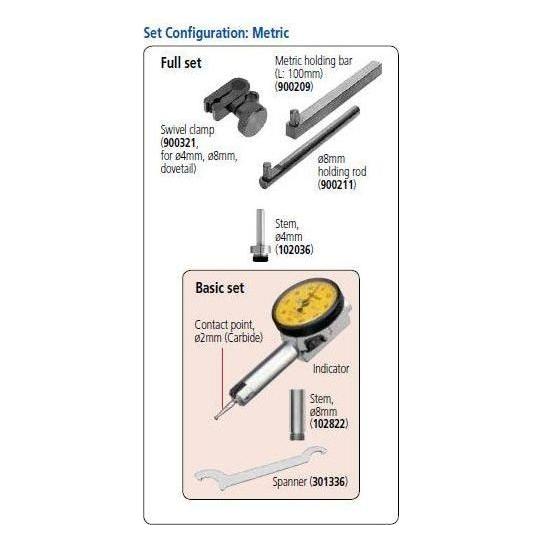

- Two holding bars are supplied. (Full sets only.)
- Fully adjustable bezel/dial face.
- Contact point is adjustable within 220°.
- Bezel is sealed with on O-ring to keep out water / oil.
Pocket Type Dial Test Indicators, Series 513 | ||||
Code | Reading | Range | Graduation | Price |
Metric | ||||
513-501T | 0-70-0 (Full Set) | 0.14mm | 0.001mm | 11,500.00 |
513-503T | 0-100-0 (Full Set) | 0.2mm | 0.002mm | 11,100.00 |
513-503E | 0-100-0 (Basic Set) | 0.2mm | 0.002mm | 9,700.00 |
513-517T | 0-40-0 (Full Set) | 0.8mm | 0.01mm | 8,500.00 |
Inches | ||||
513-504 | 0-5-0 (Basic Set) | 0.01" | 0.0001" | 9,800.00 |
