Mitutoyo Spline Micrometer, Series 111

₱8,900.00
-
 Precision is our Profession

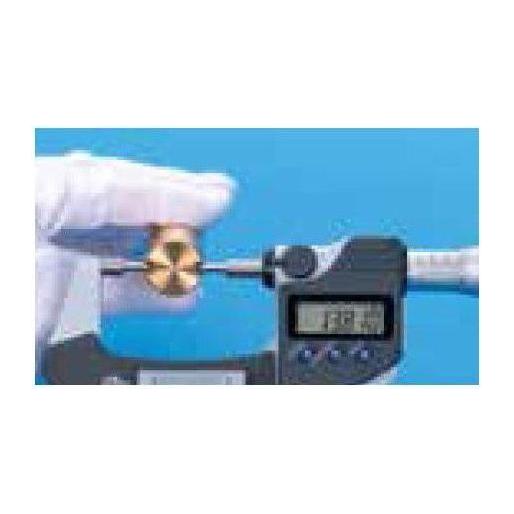

Mitutoyo Spline Micrometer, Series 111

  • The anvil and spindle have a small diameter for measuring splined shafts, slots, and keyways.
  • With ratchet stop for constant force.
  • With a standard bar except 0-1” and
    0-25mm model.
  • Supplied in fitted plastic case.

Technical Data

  • Accuracy: Refer to the list of specifications
  • Resolution*: .00005”/0.001mm or 0.001mm
  • Graduation**: .0001” or 0.01mm, .001"
  • Flatness: .000012” / 0.3μm
  • Parallelism: (2+R/100)μm, R=max. range (mm)
  • [.00008” + .00004” (L/4”)]
  • L = max. range (inch)
  • Measuring faces: Carbide tipped
  • Display*: LCD
  • Battery*: SR44 (1 pc.), 938882
  • Battery life*: Approx. 2.4 years under normal use
  • Dust/Water protection level*: IP65
  • *Digital models **Analog models

            Function of Digital Model

            • Origin-set, Zero-setting, Data hold, Data output,
            • inch/mm conversion (on inch/metric models only)
            • Function lock
            • Alarm: Low voltage, Counting value composition error
            Spline Micrometer, Series 111
            Code Model Range Graduation Price
            Metric
            111-115 SPM-25 0-25mm 0-01mm 8,900.00
            111-116 SPM-50 25-50mm 0.01mm 10,200.00
            111-117 SPM-75 50-75mm 0.01mm 11,100.00
