Mitutoyo V-Blocks & Clamps, Series 181

₱20,600.00
-
 Precision is our Profession

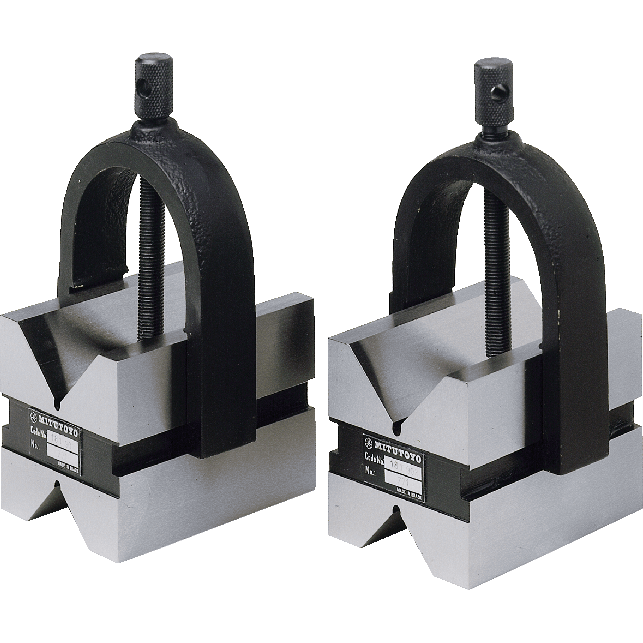

Mitutoyo V-Blocks & Clamps, Series 181

These Hardened Steel V-Blocks have clamp brackets and offer you the following benefits:
  • There are two V-blocks per set.
  • The feature V-angle 90° clamping brackets.
  • Contact faces are ground and lapped.

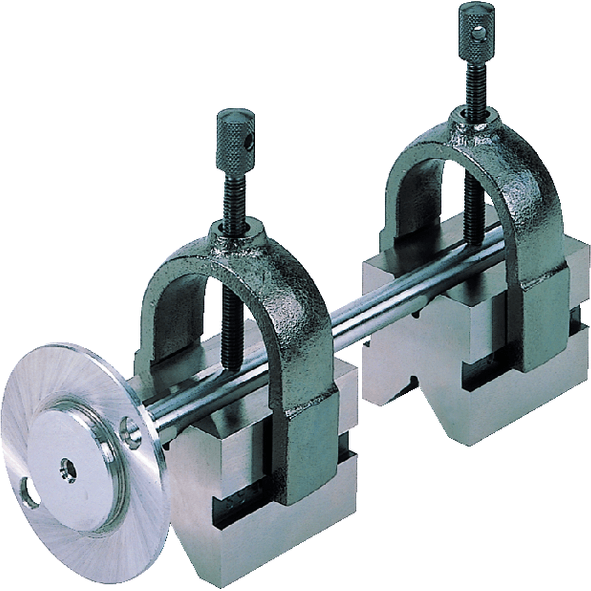

  • Designed as a fixture to enable you to check cylindrical precision machined parts.

Features

Length [mm]:
41
Width:
31.8 mm
Max. receiver for workpiece V-groove 1 Ø:
25
Max. receiver for workpiece V-groove 2 Ø:
16
Height:
31.8 mm
Mass:
0.65 kg
Hardness:
58-63 HRC
Parallelism between V-groove and all side surfaces:
6 µm
Perpendicularity between V-grooves and back surface:
9 µm
Difference of the height of the pair:
12 μm
Symmetry of the V-grooves:
6 µm
Inch-Metric:
Metric
Delivered:
In pairs

V-Blocks & Clamps, Series 181
Code Model Range Price
Metric
181-902-10 VBST-25 25mm 20,600.00
