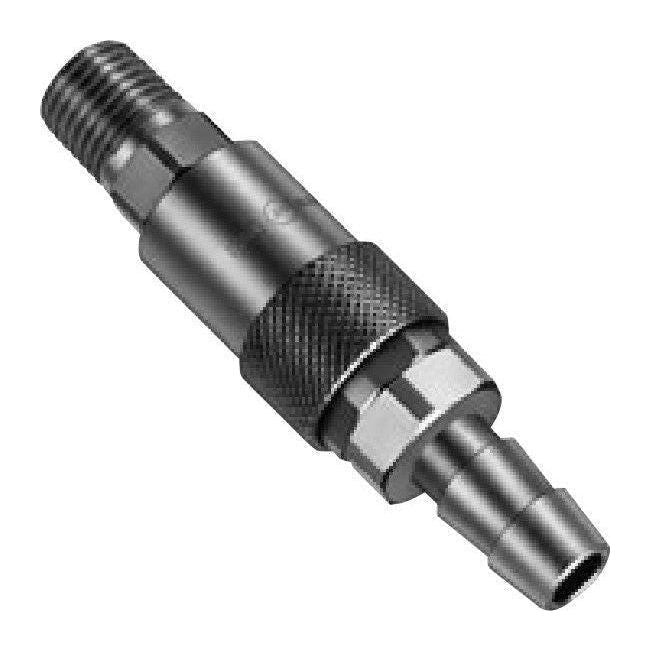

Nitto Kohki Mold Cupla Quick Coupler / Connect Coupling (Molding)
General purpose and mold coolant port coupling
Designed for quick replacement for die and mold ! Rust resistant models having many variations.
- Space saving design for molds with closely spaced coolant ports.
- Long sleeve socket facilitates connection/disconnection with plug embedded in mold.
- Various sizes and end configurations to suit a wide variety of mold applications.
- Can be connected with Super Cuplas, excluding K3 and K4 types.
- Push-to-connect design. (Built-in automatic shut-off valve)
Also available is Cupla without valve. (please specify the basic model).
- Body Material: Brass
- Packing Material: NBR Nitrite Butadiene Rubber
Applications
- For mold/ die water port coupling, for mold/die cooling water piping
Interchangeability
- Designed for single replacement of mold and die.
- Mold and die coolant lines connect easily.
- Wide variety of sizes provides best choice according to dimensions or flow rate of coolant proof.
| Applicable Fluids: | Water / Heated Oil |
| Working Pressure: | 10 bar |
| Valve Structure: | One-way shut-off / Straight through |
| Body Material: | Brass |
| Seal Material: | NBR, FKM |
| Size: | 1/8 " / 1/4 " / 3/8 " |
| PLUG (P) | ||

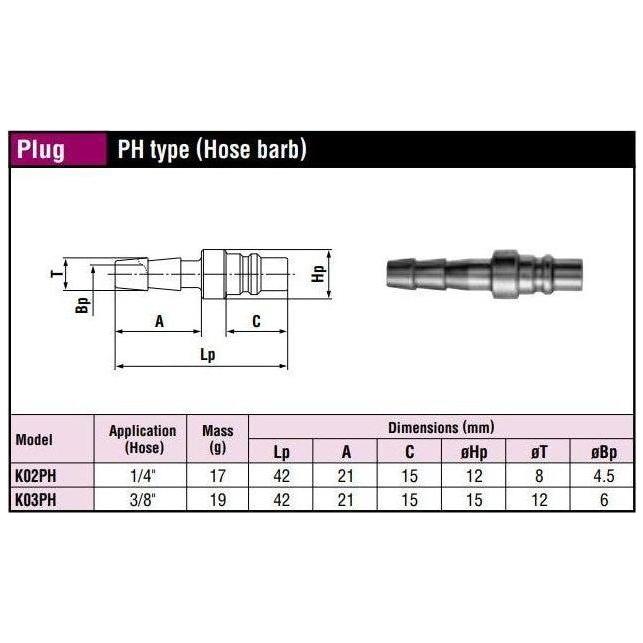

| For Hose Connection (PH) | ||
| Model | Application | Price |
| K02 PH | 1/4" Hose | 130.00 |
| K03 PH | 3/8" Hose | 140.00 |

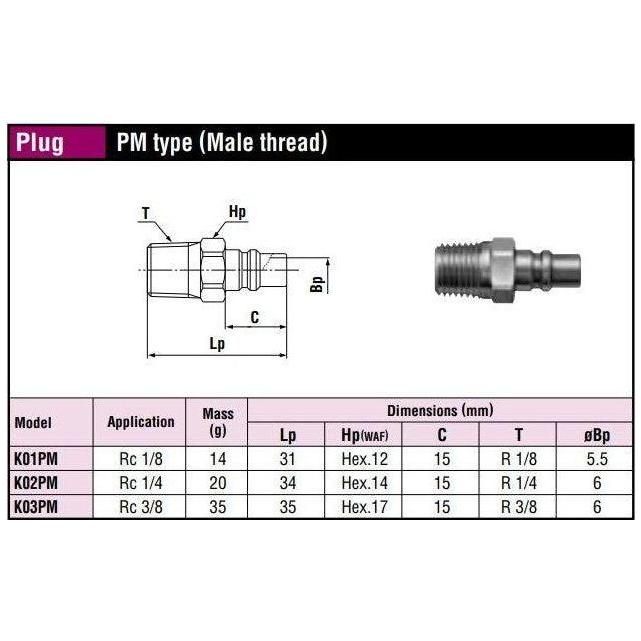

| For Female Thread Connection (PM) | ||
| Model | Application | Price |
| K01 PM | PT 1/8" | 110.00 |
| K02 PM | PT 1/4" | 130.00 |
| K03 PM | PT 3/8" | 190.00 |

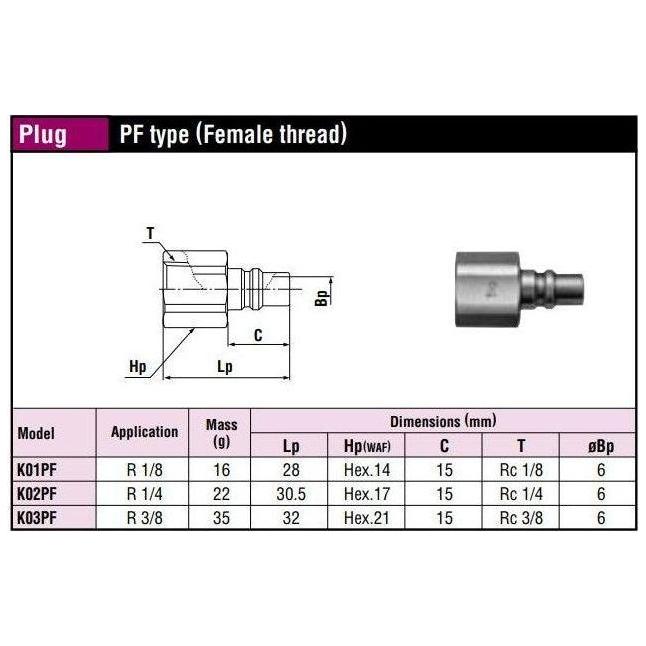

| For Male Thread Connection (PF) | ||
| Model | Application | Price |
| K01 PF | PT 1/8" | 140.00 |
| K02 PF | PT 1/4" | 170.00 |
| K03 PF | PT 3/8" | 240.00 |

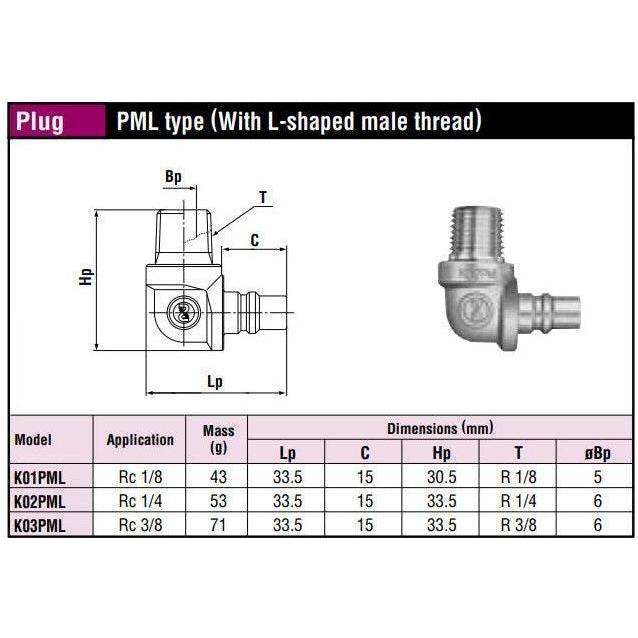

| For Male Thread Connection (L Type) | ||
| Model | Application | Price |
| K01 PML | PT 1/8" | 410.00 |
| K02 PML | PT 1/4" | 430.00 |
| K03 PML | PT 3/8" | 500.00 |
| SOCKET (S) | ||

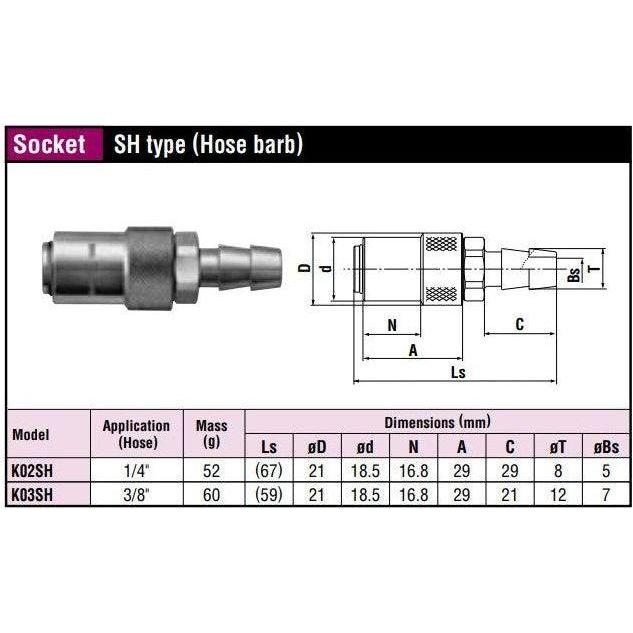

| For Hose Connection (SH) | ||
| Model | Application | Price |
| K02 SH | 1/4" Hose | 870.00 |
| K03 SH | 3/8" Hose | 880.00 |

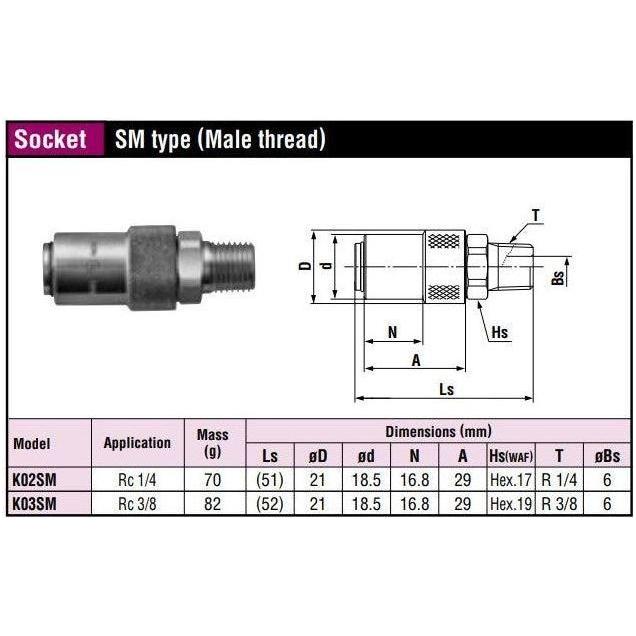

| For Female Thread Connection (PM) | ||
| Model | Application | Price |
| K02 SN | PT 1/4" | 760.00 |
| K03 SM | PT 3/8" | 880.00 |

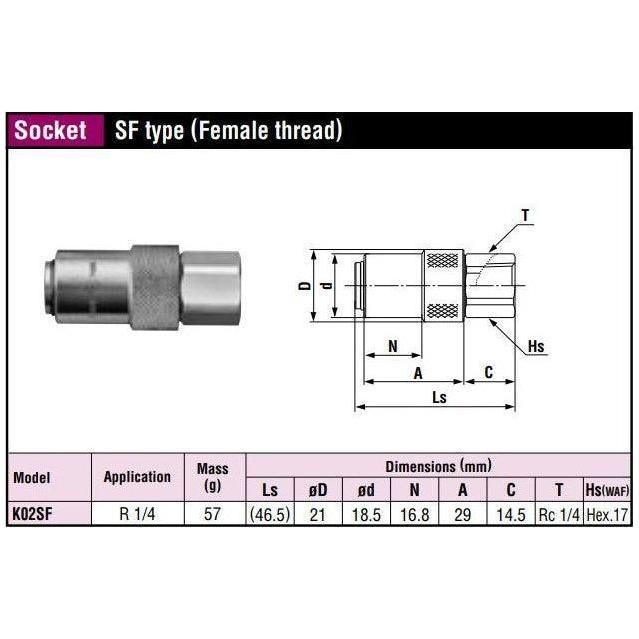

| For Male Thread Connection (PF) | ||
| Model | Application | Price |
| K02 SF | PT 1/4" | 840.00 |

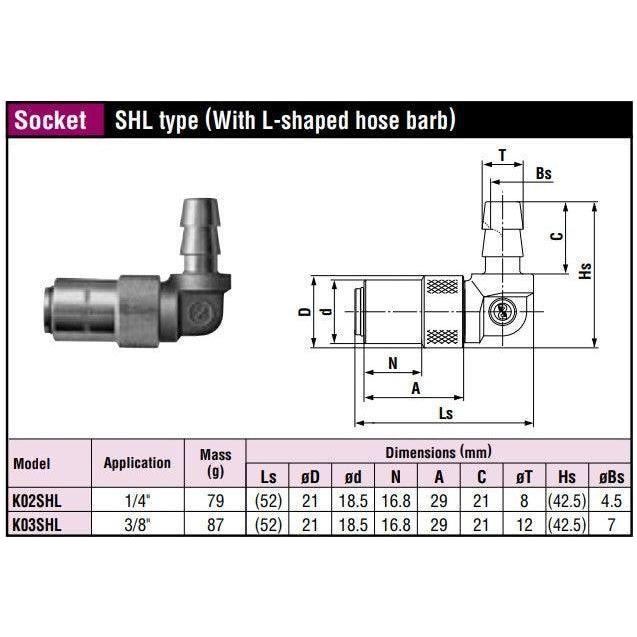

| For Hose Connection (SHL Type) | ||
| Model | Application | Price |
| K02 SHL | PT 1/4" | 1,300.00 |
| K03 SHL | PT 3/8" | 1,320.00 |
| Body Material | Brass | ||||
| Size | Thread | 1/8″ , 1/4″ , 3/8″ | |||
| Hose barb | Hose: 1/4″ , 3/8″ / Braided hose: ø9mm × ø15mm | ||||
| Pressure Unit | MPa | kgf/cm2 | bar | PSI | |
| Working pressure | 1 | 10 | 10 | 145 | |
|
Seal material Working temperature range *1 |
Seal material | Mark | Working temperature range | Remarks | |
| Nitrile rubber | NBR | -20°C to +80°C | Standard material | ||
| Fluoro rubber | FKM | -20°C to + 180°C | Available on request | ||
– Maximum working pressure and working temperature range of CUPLA for braided hoses depend upon the specifications of braided hoses to be used.
*1: The operable temperature range depends on the operating conditions.
