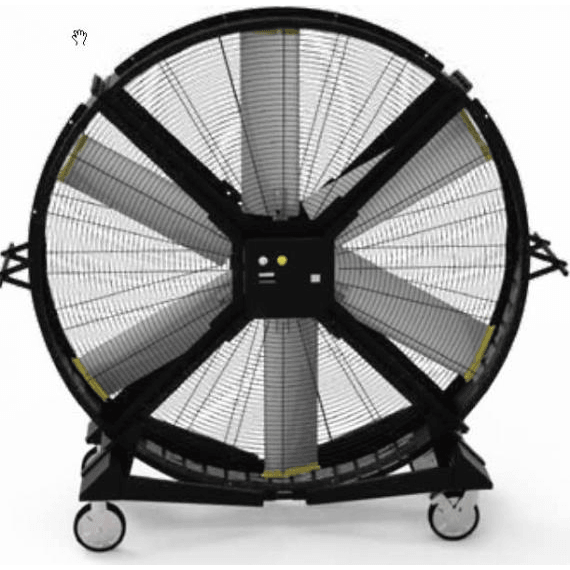

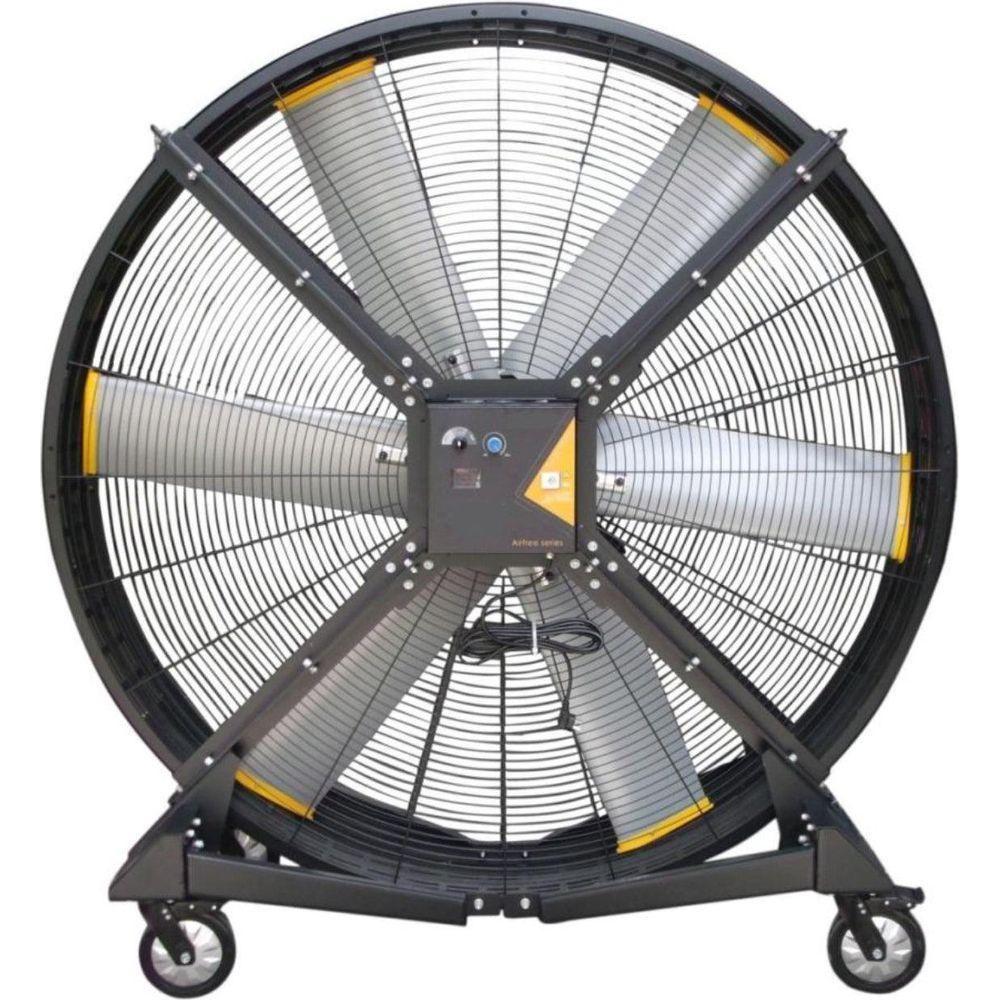

Pioneer SHVL-Y8BAA20 Airfree Vast Fan
- Indoor/outdoor breezy air
- Move easily
- Energy saving / DC Inverter Motor
- Quiet & Low Noise
- Waterproof/Dustproof
- Super Large Air Volume
- Modular Design

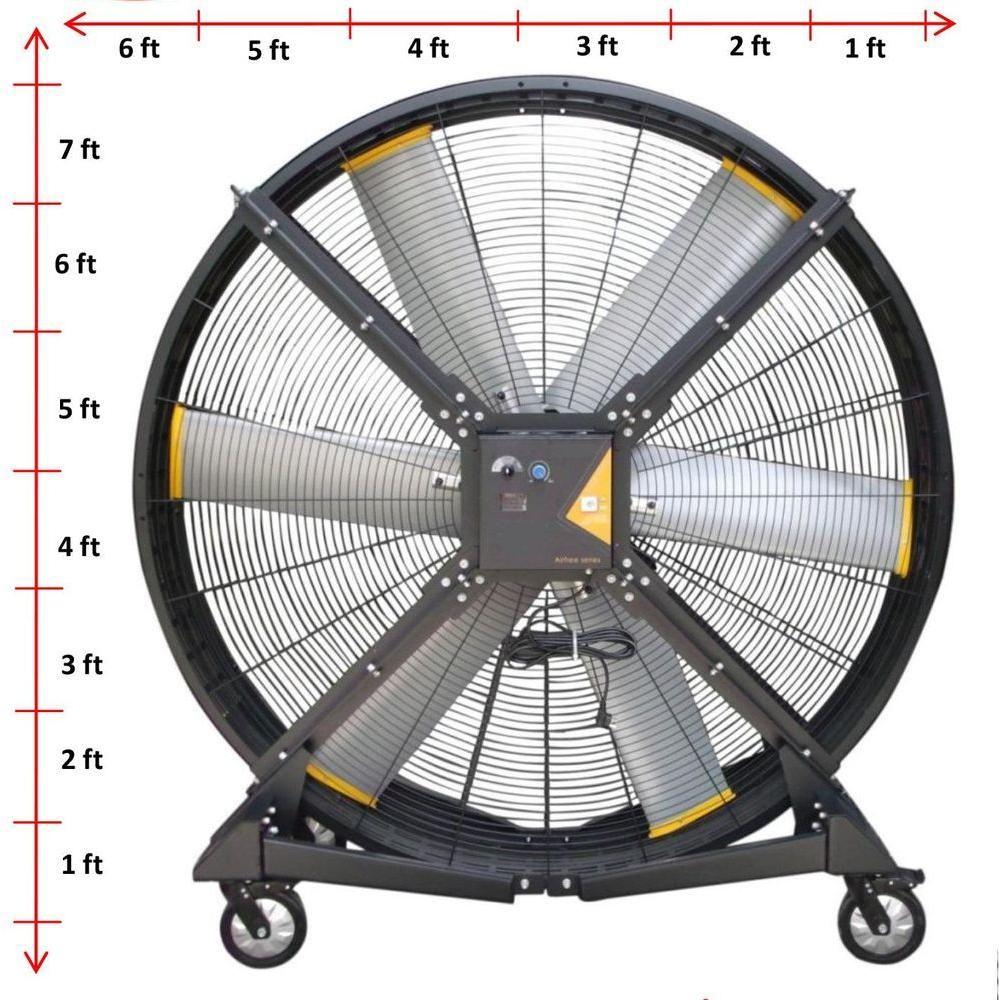

The fan 7 feet (2m) in diameter and can be moved easily indoors and outdoors due to the 4 installed wheels. The fan utilizes a Permanent Magnet Synchronous Motor (PMSM) motor to drive the fan blades which can produce large and continuous airflow. In hot and humid weather, the cooling effect of the fan is comparable to the effect of more than 20 industrial fans. The extremely rugged and durable steel frame of the fan allows it to be used in even the harshest environments. With its high volume and low speed operation coupled with its IP55 rating, the fan is your perfect all-weather solution for providing comfortable and cost efficient cooling anytime, anywhere.
| Model | SHVL-Y8BAA20 |
| Dimension | 2190mm x 2000mm x 748mm |
| Max speed | 220r/min |
| Range of wind speeds | 0-36m (7m/s-0.9m/s) |
| Full load air volume | 1068m3/min |
| Motor type | BLDC motor |
| Motor Power | 0.4KW |
| Supply Power | 220V/1P |
| Full load current | 1.8A |
| Sound Level (maximum speed) | 43d8A |
| Protection levels | IP55 |
| Weight | 150KG |
