Pioneer Portable Super Speed Ventilator Fan

by Pioneer
₱3,360.00
-

Mostly used in mining, farming, jobsite works, welding, etc.
Note: Color of unit may vary

Operating Environment:

  • The max relative humidity is 90% (in 25C°)
  • Below 1000 meters altitude
  • Do not use under flammable and explosive environment

Operation and Maintenance

  • Make sure the ventilation fan's voltage is in accordance with local voltage before use.
  • Ventilation fan need to be serviced after 1000 hours to ensure long life.
  • If the supply cord is damaged, replace as soon as possible and with the right requirements.
  • The ventilation fan must be properly earthed.
  • Cut off the power before any cleaning and maintenance.
Portable Super Speed Ventilator only
Size Price
200mm (10")  3,360.00
250mm (10") - 320 Watts 3,700.00
300mm (12") - 520 Watts 4,100.00
350mm (14") - 1000 Watts 6,100.00
400mm (16") - 1100 Watts 11,540.00
600mm (24") - 3000 Watts 24,250.00
Spiral non-flammable flexible duct
Connecting with the portable ventilators. It can be extended simply by connecting the extension over the ring on the end of the duct with tying the cord.
Size Price
200mm (8") x 5m 1,120.00
250mm (10") x 5m 1,350.00
300mm (12") x 5m 1,450.00
350mm (14") x 5m 1,550.00
400mm (16") x 5m 2,600.00
600mm (24") x 5m 3,900.00

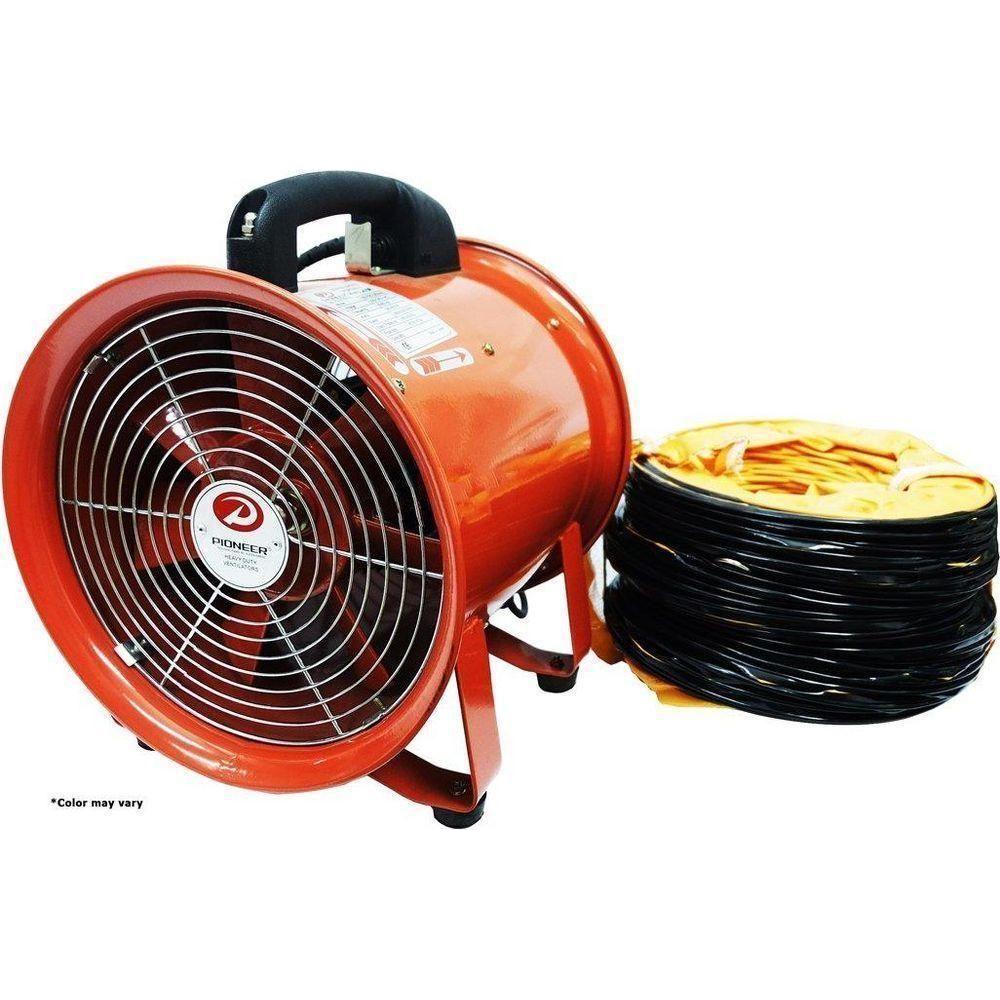

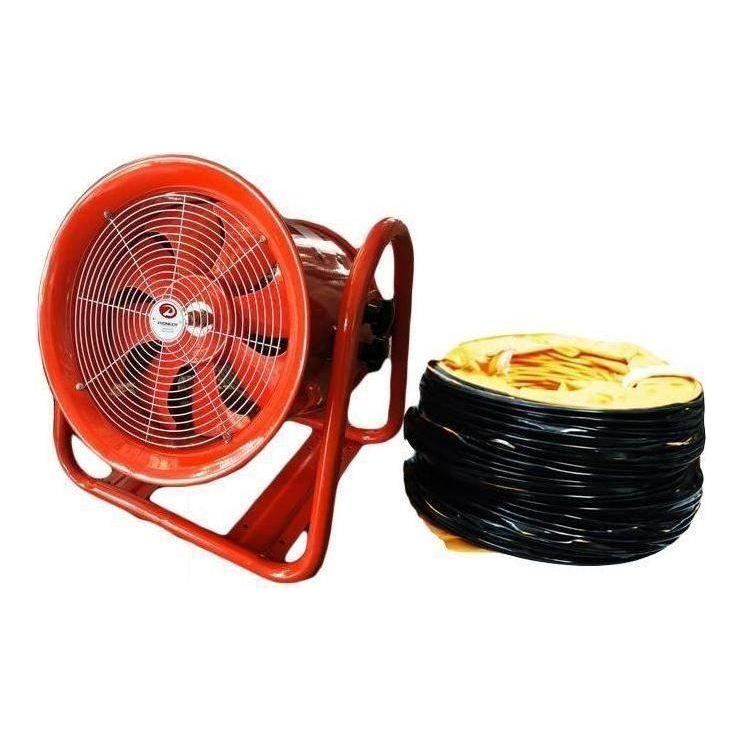

Ventilator with Hose Combo
Size Price
200mm (8") x 5m 4,200.00
250mm (10") x 5m 4,900.00
300mm (12") x 5m 5,435.00
350mm (14") x 5m 7,435.00
400mm (16") x 5m 13,835.00
600mm (24") x 5m 27,720.00

Manufacturer Supplied Specifications
(*May change without prior notice)

Size Power (Watts) RPM Air Flow
(m³/min)
Static
(Pa)
Noise
Db (A)
10" 320
2,800/3300 rpm
43 294 68
12" 520 65 373 71
14" 750 82 598 76
16" 1000
1400/1720 rpm
95 780 79
24" 3000 240 540 77

3 Months Service Warranty
