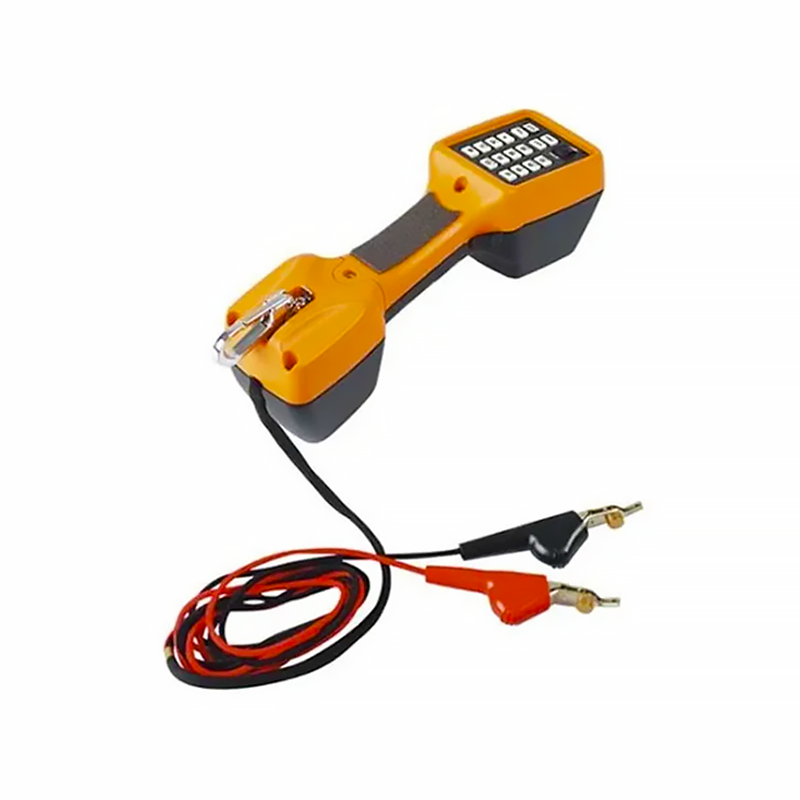

Pro'sKit MT-8001 Telephone Line Tester Butt Set is a professional diagnostic tool designed for testing, monitoring, and troubleshooting telephone lines and communication systems. It provides reliable performance for line verification, signal monitoring, and maintenance work in telecom and network environments.
Key Benefits
- Supports talk and monitor modes for efficient line testing and troubleshooting.
- DTMF and rotary dialing functions for compatibility with various systems.
- Built-in memory dialing and speakerphone features for convenience in field operations.
Product Overview
The Pro'sKit MT-8001 Butt Set is engineered for telecom technicians and maintenance professionals who require a dependable tool for line testing and diagnostics. It allows users to connect directly to telephone lines for testing continuity, dialing, and monitoring signals.
With features such as memory dialing, adjustable speaker levels, and automatic power shut-off, this tester enhances efficiency during fieldwork. It operates using both shared line power and a 9V battery, ensuring flexibility across different working conditions.
Ideal Applications
- Telephone line testing and troubleshooting
- Telecom installation and maintenance
- Network diagnostics and field service work
Technical Specifications
| Brand | Pro'sKit |
| Model | MT-8001 |
| Type | Telephone Line Tester Butt Set |
| Loop Limit | 2 kΩ max at 48 VDC (nominal 20 mA loop current) |
| DC Resistance |
Talk Mode: 300Ω typical Monitor Impedance: 39kΩ nominal at 1 kHz |
| Dial Output |
Pulsing Rate: 10 pps ±0.8 pps Percent Break: 61% ±2% Interdigit Interval: 1000 ms typical Leakage During Break: >50 kΩ |
| DTMF Output |
Tone Frequency Error: ±1.2% max Tone Level: -8±2 dBm combined High vs Low Tone Difference: 4 dB max |
| Memory Dialing |
12 memories + last number redial 16 digits per memory PBX pause: 4 seconds |
| Power Source |
Shared line power 9V (6F22) battery |
| Battery Life | Approx. 25 hours continuous use |
| Audio Features |
Speaker Levels: Low, Medium, High Speakerphone Levels: Low, Medium, High Auto Power Off: After 5 minutes (no audio) |
| Dimensions |
Length: 10-1/4 in (26.0 cm) Width: 2-3/4 in (7.0 cm) Height: 3-1/2 in (8.9 cm) |
| Weight | 560 g (typical) |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -40 to 66°C |
| Humidity / Altitude | Up to 10,000 ft & 5–95% RH |
What’s Included
- 1 pc Pro'sKit MT-8001 Telephone Line Tester Butt Set
