Ridgid 918 Hydraulic Power Roll Groover

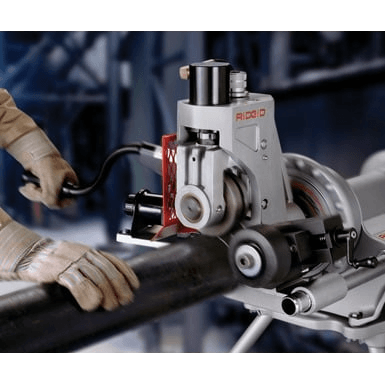

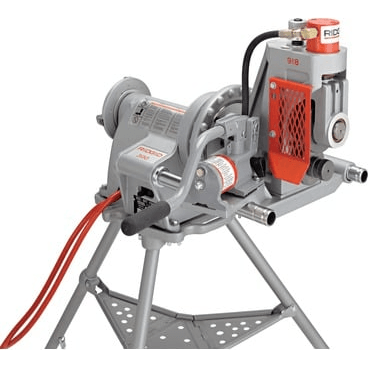

The RIDGID® Model 918 Hydraulic Roll Groover features a powerful 15-ton hydraulic ram in a compact, easy to transport unit. With one man set-up and operation, the 918 is the ideal groover for job site requirements. The 918 mounts quickly to RIDGID 300 power drive, 535, 1822, or 1224 Threading Machines. Designed to provide maximum efficiency, the 918 is capable of grooving up to 12" Schedule 10 and 8" Schedule 40 standard wall pipes.
- Compact lightweight design allows for easy transport.
- Extensive grooving capacity for a wide range of applications.
- Rugged, durable housing enables unit to withstand harsh use.
- Two-stage pump plus 15 ton ram permit quick and smooth operation.
- Quick easy set-up. Easy rollset changeout.
- Specifically designed groove and drive rolls product consistent, accurate grooves throughout the capacity range.
Specifications
| Capacity | 1" - 12" Sch. 10 Steel, Stainless Steel |
| 1" - 8" Sch 40 Steel, PVC | |
| 1" - 2" Sch 40 Stainless Steel | |
| 2" - 6" Copper (Type K, L, M, & DWV) | |
| 2 1/2"-4" Sch 80 PVC |
|
CATALOG NUMBER
|
Price
|
| 48297 | 294,400.00 |
| 48377 | 294,400.00 |
| 48382 | 294,400.00 |
| 48387 | 294,400.00 |
| 48402 | 39,450.00 |
|
CATALOG NUMBER
|
MODEL NO.
|
DESCRIPTION
|
WEIGHT | |
| LB. | KG | |||
| 48297 | 918-1 | 918 Roll Groover w/300 Power Drive Mount Kit | 104 | 47.2 |
| 48377 | 918-2 | 918 Roll Groover w/1822 Power Drive Mount Kit | 134 | 60.9 |
| 48382 | 918-4 | 918 Roll Groover w/1224 Carriage Mount Kit | 131 | 59.5 |
| 48387 | 918-5 | 918 Roll Groover w/535 Carriage Mount Kit | 117 | 53.1 |
| 48402 | 915 | 535 Carriage Mount Kit Only | 22 | 10 |

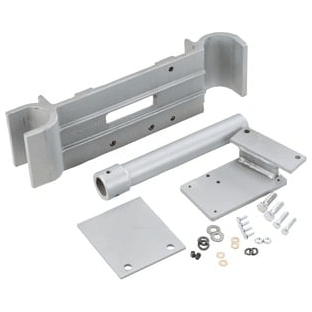

Mounting Kit Only
|
CATALOG NUMBER
|
Description
|
Price
|
| 48292 | KIT, 300 Mounting Base | 39,450.00 |
| 48392 | Base, Mounting 1822 F/918 | 39,450.00 |
| 48397 | KIT, Mounting 1224 F/918 | 39,450.00 |
| 48402 | KIT, 535 Mounting F/918 | 39,450.00 |
Accessories
|
CATALOG NUMBER
|
DESCRIPTION
|
Price
|
| 48405 | Roll Set for 8"-12" Sch 10 (8" Sch 40) With Carry Case | 52,550.00 |
| 48407 | Roll Set for 1 1/4"-1 1/2" Sch 10/40 With Carry Case | 64,150.00 |
| 48412 | Roll Set for 1" Sch 10/40 and 1 1/4"-1 1/2" Sch 10/40 with Carry Case | 109,550.00 |
| 48417 | Roll Set for 2"-6" Copper | 54,800.00 |
| 59992 | 2 1/2''- 12'' Stabilizer for Grooving Nipples | 46,700.00 |
| 49662 | Tool Box | 12,100.00 |
| 76822 | 918 Roll Grover Inch Diameter Tape | 2,500.00 |
| 76827 | 918 Roll Grover Metric Diameter Tape | 2,500.00 |
Note: Do not use to groove 8" schedule 40 steel pipe harder than 150 Brinnel.
