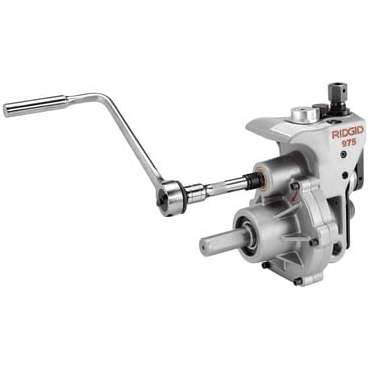

Ridgid 975 Combo Roll Groover

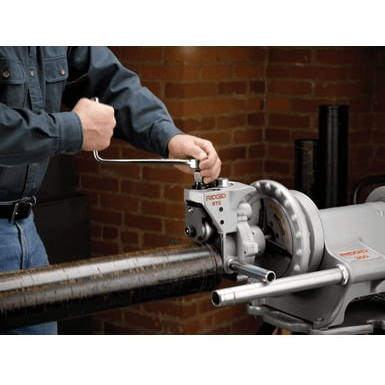

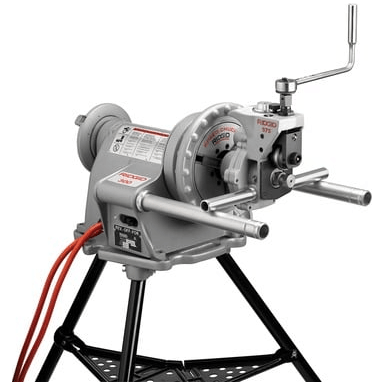

The Model 975 Combo Roll Groover is two tools in one. Like other RIDGID® roll groovers, the 975 mounts on the RIDGID 300 Power Drive for machine-powered roll grooving jobs. It also designed to manually roll groove in-place pipe.
- Auto Tracking & Depth Setting Gauge Means Easier Use - The 975 Combo Groover includes new, patented auto tracking technology for significantly easier grooving. Whether you're doing machine-powered or manual grooving, the AutoTracking gauge keeps the pipe automatically engaged to the groover throughout the grooving process. The 975 also includes a permanently depth setting gauge for quicker, repeatable set-up.
- Less Hand Force Required - When manually roll grooving, the 975's 55% higher gear reduction means less hand force required versus competitive manual roll groovers. This is especially helpful for over-head roll grooving.
- Durability And Portability - A tough, ductile iron construction means the 975 can absorb jobsite abuse and provide accurate grooves time after time. A cast-in handle makes the 975 easily portable to and from the jobsite.
Specifications
| Capacity | 1 ¼” – 6” Schedule 10 and Schedule 40 steel, aluminum, and PVC pipe. |
| 1 1/4" – 6" Schedule 10, 1 1/4" – 2" Schedule 40 stainless steel pipe, 11/2" – 3" Schedule 80 PVC pipe. | |
| With roll change, 2" – 8" copper tube (Type K, L, M, and DWV). | |
| Depth Adjustment | Adjusting screw and integral, index depth gauge. |
| Actuation | Feed screw with 1/2" ratchet wrench (included), or any 15/16" hex wrench. |
| Power Drive Mounting | RIDGID 300 Power Drive 38/57 RPM (reverse direction only). |
|
CATALOG NUMBER
|
MODEL NO.
|
DESCRIPTION
|
Price
|
| 25638 | 975 | 975 Combo Roll Groover | 74,300.00 |
| 32828 | 975 | 975 Combo Roll Groover for Use with Copper Tube | 78,450.00 |
Accessories
|
CATALOG NUMBER
|
MODEL NO.
|
DESCRIPTION
|
Price
|
| 32833 | 975 | 975 Roll Set Kit for 2" - 8" Copper Tube | 31,900.00 |
| 41855 | 300 | 300PD, Tool Only, 115V 25-60Hz 38RPM | 149,550.00 |
| 75075 | 300 | 300 Power Drive Only | 200,000.00 |
| 42360 | 1206 | 1206 DOM/EXP | 29,250.00 |
| 36273 | 460-6 | Tristand Chain | 33,150.00 |
| 36276 | 460-12 | Tristand Chain | 51,100.00 |
| 16703 | 425 | 425 1/8" - 2-1/2" Portable TRISTAND Chain Vise | 24,200.00 |
| 56662 | VJ-99 | VJ-99 28" - 52" V-Head High Pipe Stand | 5,750.00 |
| 22166 | VF-99 | VF-99 Folding (High) | 7,100.00 |
| 76822 | - | 918 Roll Grover Inch Diameter Tape | 2,500.00 |
| 76827 | - | 918 Roll Grover Metric Diameter Tape | 2,500.00 |
| 92202 | - | Ratchet. 1/2 Drive 90 Degress | 5,350.00 |
| 30708 | - | Extension, Ratchet, 1/2 Locking | 1,850.00 |
