Ridgid B-500 Transportable Pipe Beveller

by Ridgid
₱253,050.00
-

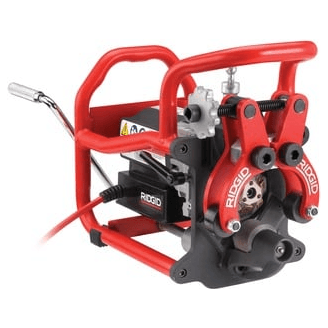

Ridgid B-500 Transportable Pipe Beveller

The B-500 Transportable Pipe Beveller produces high quality bevels in 45 seconds* without flames or sparks. The compact design quickly mounts to pipe 4” and up with a maximum wall thickness of 1/2”, and creates consistent bevels in a single pass.
*Timed on a 10” Schedule 40 Pipe.

Speed

  • Set-up and bevel 10" diameter schedule 40 pipe in 45 seconds!
  • Pipe is cool to touch immediately following bevelling.

Consistency

  • Accurate bevel angle around diameter of the pipe allows for optimal number of cover passes.
  • Adjustable land width from 0" to 3/16" to fit welders’ requirements.

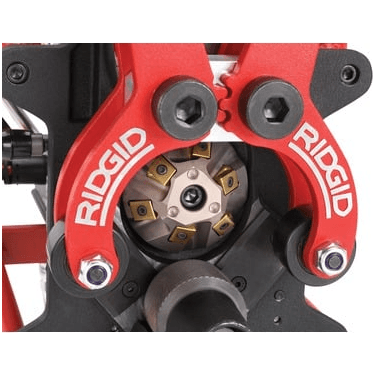

  • Produces a machined finish due to 6 replaceable cutter inserts working simultaneously.

Simplicity

  • Fast to set-up and operate.
  • Patent-pending clamp system firmly secures tool to the pipe.
  • Speed monitoring with led indicators for optimal cutter performance.
  • Grinding spark free operation.
  • Adjustable at 1/32" increments

Specifications

Capacity 4” pipe and larger, flat plate.
Pipe Wall/ Plate Thickness Min 0.188" (4.8 mm)/Max 0.50" (12.7 mm).
Models Equipped with – 37.5°; 30° or 45° (with Optional Cutter Heads).
Cutter Head Rated for most steel & stainless steel*.
Size 15.8 in. (401 mm) L x 11.5 in. (292 mm) W x 13.3 in. (338 mm) H.
Land Width 0" - 3/16" (4.8 mm) in approximately 1/32" (0.8 mm) increments.
Motor Type Universal single-phase.
Motor RPM 950 (no load).
Body Steel frame
* Beveller cutting head and inserts are optimized for standard A53 mild steel pipe. Reduced insert life can be expected on other materials.

CATALOG NUMBER MODEL NO. DESCRIPTION WEIGHT
LB. KG
49303  B-500 Portable Pipe Beveller w/37,5⁰ Cutter Head, 230V  56 1/2  24.00



Accessories

CATALOG NUMBER DESCRIPTION WEIGHT
LB. KG
48863 37-1/2° Cutter Head with Inserts  2 1/2  1.10
48858 30° Cutter Head with Inserts  2 1/2  1.10
48868 45° Cutter Head with Inserts  2 1/2  1.10
48873 Pack of 6 Inserts, 1 Anti-Seize Grease, 2 Screws, Case  2 1/2  1.10
48883 Anti-Seize Grease – 1 Tube
48888 Torx Wrench T15/S7  1/20  0.02
