Ridgid CS65 Digital Reporting Monitor

by Ridgid
₱352,750.00
-

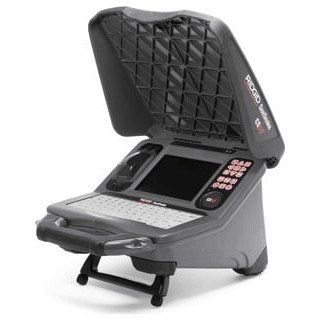

    Ridgid CS65 Digital Reporting Monitor
    Digital Interface

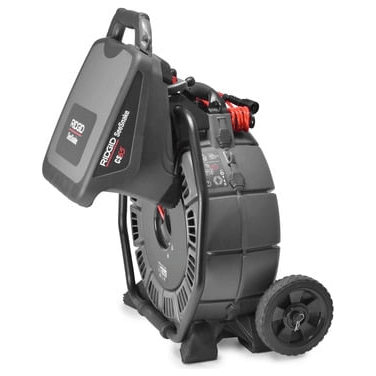

    One-touch image and video capture directly to one or two USB drives and the built-in 1 TB hard drive. The CS65 mounts to the SeeSnake Max rM200 for easy transport and storage. Easily add on-screen titles and annotate captured media with the built-in keyboard and automatically generate high quality multimedia reports.

      • One-touch recording for fast, efficient documentation of inspections.
      • 1 TB internal hard drive provides ample storage for multiple jobs.
      • PhotoTalk™ pairs audio commentary with an image, in an email-ready file.
      • Daylight viewable display for a crisp, clear, in-pipe image.
      • Water-resistant keyboard makes it easy to add onscreen titles and annotate reports.
      • HQ Software to edit, archive, and deliver reports via print, DVD or online.

            Specifications

            Weight (without battery) 9.8 lbs. (4.4 kg)
            Length 15.9" (403 mm)
            Width 12.3" (312 mm)
            Height 9.9" (251 mm)

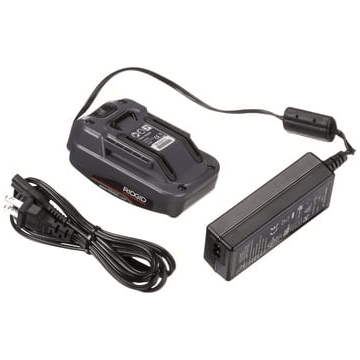

            Power Source 18V Advanced Lithium battery or AC adapter
            Power Rating 16 to 25 VDC, 30W
            Operating Temperature 14°F to 122°F (-10°C to 50°C)
            Storage Temperature -4°F to 140°F (-20°C to 60°C)
            Relative Humidity 5% to 95%
            Altitude 13,120' (4,000 m)
            Display 6.5" (165 mm) Color LCD
            Resolution 640 x 480 VGA
            Video Format MPEG4 (H.264) 30 FPS
            Autolog Format MPEG4 (H.264) low, variable frame rate decreased file size
            Image Format JPEG
            Audio Integrated microphone and speakers
            Transfer USB drive


            CATALOG NUMBER
            DESCRIPTION
            Price
            48123 CS65 115V Monitor with Adapter 352,750.00
            48133 CS65 kit 115V with Battery and Charger + LIO 357,100.00
            48138 CS65 Kit 230V with Bat & Chargerer Lio 350,150.00
