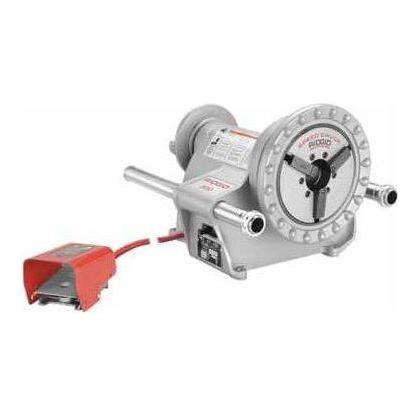

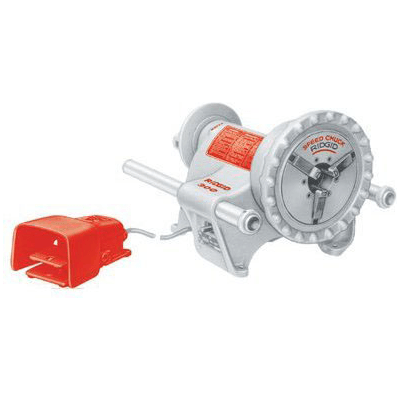

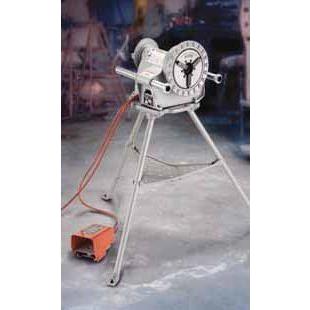

Ridgid 300 Power Drive Threader / Electric Pipe Threading Machine
Features
- RIDGID® speed chuck.
- Reversible 1/2 HP universal motor.Recessed On/Off/Reverse switch.
- Convert a 300 Power Drive to a portable threading machine.
- Ideal for use with RIDGID roll groovers.
Specifications
| Capacity | 1/8" - 2" (6mm - 50mm) Pipe, 2 1/2" - 4" (65mm - 100mm) with 141, and 4" - 6" (100mm-150mm) with 161 Geared Threaders, 1/4" - 2" (6mm - 52mm) Rod |
| Switch | Heavy-duty forward/off/reverse and integral foot switch. |
| Chuck | RIDGID speed chuck with replaceable rocker-action jaws. |
| Rear Centering Device | Cam-action turns with chuck. |
| Support Bars | Two heavy-duty. |
| Catalog Number | Model | Description | Rpm | Voltage / Hertz | Amp | Power | Weight (kg) | Price |
| 41860 | 300 | Power Drive only | 38 | 230V / 50/60Hz | 8 | 1/2 HP | 43 | 183,750.00 |
| 75435 | 300 | Power Drive only | 38 | 230V / 50/60Hz | 8 | 1/2 HP | 43 | 152,050.00 |
| 97415 | 300 Complete | Complete | 38 | 230V / 50/60Hz | 8 | 1/2 HP | - | 362,100.00 |

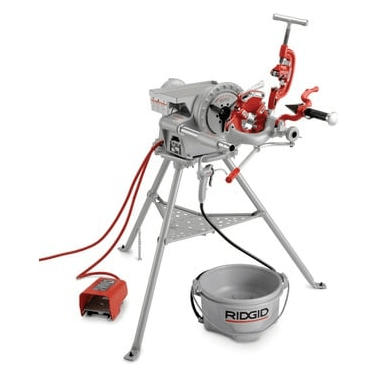

97415 (300 Complete) Inclusions
| Catalog Number | Description |
| 97065 |
NPT Die Head Quick-Open R.H.
|
| 47745 |
1⁄2" - 3⁄4" Universal Alloy Die Set
|
| 47750 |
1" - 2" Universal Alloy Die Set
|
| 42370 |
Model 360 1⁄8"-2" Full Floating, Self Centering Cutter
|
| 42365 | REAMER, 341 |
| 42360 | STAND 1206 |
| 96945 |
Model 311A Carriage With Lever
|
| 97245 |
Model 330 Oil Pan (300A Power Drive)
|
Accessories
|
CATALOG NUMBER |
Description | Price |
| 10883 | Oiler with One Gallon Premium Thread Cutting Oil | 24,400.00 |
| 51005 | Nipple Chuck Complete, ½" - 2" NPT | 32,300.00 |
| 97065 | NPT Die Head Quick-Open R.H. | 32,150.00 |
| 97075 | 815A 1⁄8" - 2" NPT Die Head, Self-Opening, RH | 41,150.00 |
| 97060 | Die head, 532 w/post | 19,250.00 |
| 97070 | 815A 1⁄8"- 2” NPT Die Head, Self-Opening, RH | 32,150.00 |
| 42370 | Model 360 1⁄8"-2" Full Floating, Self Centering Cutter | 17,800.00 |
| 42385 | Lever Carriage Feed Kit | 6,700.00 |
| 42575 | #32 Transport Cart | 13,600.00 |
| 46660 | Reamer Cone (L.H. & R.H.) | 10,950.00 |
| 68815 | Carriage with Lever | 28,550.00 |
| 97365 | Insert Set f/Plas. Coated Pipe | 11,600.00 |

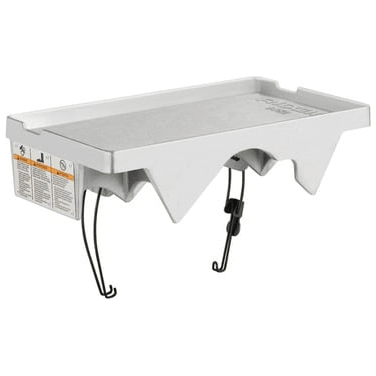

| 22638 | Clip-On Tool Tray | 9,250.00 |
| 68160 | NippleChuck½"-2"BSPT | 32,250.00 |
| 97070 | 815A 1⁄8"- 2” NPT Die Head, Self-Opening, RH | 32,150.00 |
| 97080 | 815A 1⁄8"-2" BSPT Self-Opening Die Head | 43,000.00 |
Unit only - 6 Months Service Warranty
