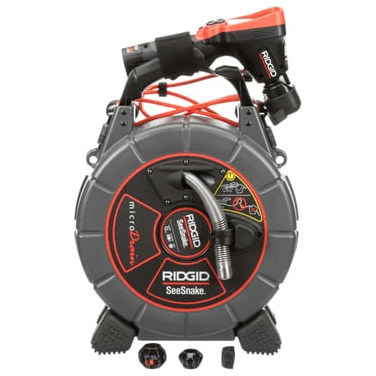

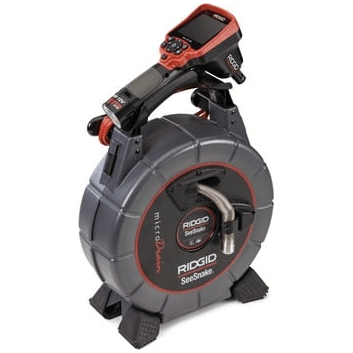

Ridgid SeeSnake® microDRAIN® Video Inspection System / Camera Reel
1¼" to 3 / 4" (32 - 75 to 100 mm)* lines up to 65' (20 m). Passes multiple 90° bends in most 1.5" (40 mm) drain lines.
microDRAIN® video inspection system provides small size and maneuverability for small diameter and tight-turn radius inspections.
* 3" (75 mm) when used with a micro CA-350 inspection camera. 4" (100 mm) when used with a SeeSnake® monitor.
- Lightweight and compact design is one-half the size of popular inspection systems, easily stowed in a truck and carried onto the jobsite.
- Multi-monitor compatibility with existing SeeSnake monitors, or the micro CA-350 digital inspection camera.
- Durable and reliable construction with hardened stainless steel camera head spring assembly for a long service life as well as long lasting high-intensity lights for exceptional viewing.

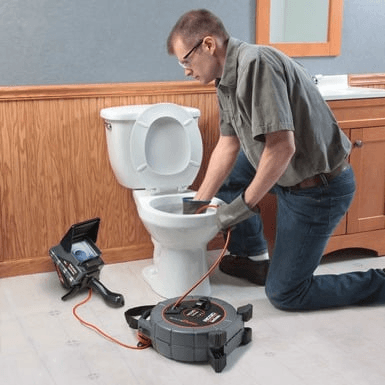

- Ideal for inspections with tight turns such as toilet traps and P-traps.
- L100/L100C - 1 1⁄2" to 5" (40 - 125 mm) lines with a stiffer push cable allowing you to inspect lines up to 100' (30 m)
- D30 and D65S - Small diameter with tight turns, 1 1⁄2" to 4" (40 - 100 mm) P-traps, toilet traps, pool lines up to 65' (20 m)
- N85S - Ultra small diameter lines 1" to 2" (25 - 50 mm) with tight turns for specialized applications
Specifications
| Camera Head | 0.86" (22 mm) |
| Cable Length | 65' (20 m) |
| Cable Diameter | 0.33" (8,3 mm) |
| Line Capacity | 1¼" to 3 / 4" (32 - 75 or 100 mm) |
| Weight | 8.6 lbs. (3,9 kg) or 9.8 lbs. (4,4 kg) |
| Size | Length 13.25" (33.7 cm), Width 6.6" (16.8 cm), Height 14.2" (36.1 cm) |
| Resolution | 656 x 492 NTSC |
| Ball Guide | 2 included |
| Sonde | Standard with 65" (20m) microDrain, 512 Hz |
| Counter | Counter available when paired with the SeeSnake® CS or CSx Series monitors, but does not display counter when paired with the CA-350. |
| CATALOG NUMBER | DESCRIPTION | Price |
| 33103 | Reel, MicroDrain Reel (MEXP) | 146,450.00 |
| 37468 | Reel, MicroDrain D65S SS 115V | 200,300.00 |
| 40788 | System, Mdrain D65S/CA300 115V | 248,750.00 |
|
CATALOG NUMBER
|
MODEL NO.
|
DESCRIPTION
|
LENGTH |
Price
|
|
| FT. | M | ||||
| 33108 | Interconnect Cable for SeeSnake® Monitor | 10 | 3 | 17,850.00 | |
| 33113 | Interconnect Cable for CA-350 Monitor | 5.5 | 1.7 | 23,800.00 | |
| 37483 | D65S | microDRAIN® D65S Drum Only NTSC | - | - | 173,150.00 |
| 34318 | 42 mm Pipe Guide, 22 mm Camera, Pkg of 2 | - | - | 2,900.00 | |
| 40593 | 36 mm Pipe Guide, 22 mm Camera, Pkg of 2 | - | - | 1,300.00 | |
| 37473 | microDRAIN® D65S Reel (CA-350) (NTSC) 115V | - | - | 198,450.00 | |
| 37889 | System, MReel L100C/CA300 115V | - | - | 37,100.00 | |
