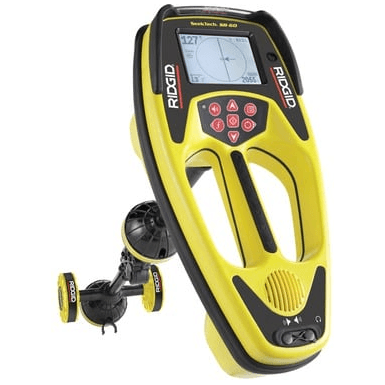

Ridgid SeekTech SR-60 Utility Locator
For the fastest, easiest, most versatile receiver available.
Choose the SR-60 locator for fast confident locates even under tough locate conditions (poor conductors, poor soil conditions, poor grounding, etc.).
- Trace any frequency from 10 Hz to 490 kHz.
- Trace energized lines and sondes (beacons) simultaneously.
- Has all the ease of use and accuracy of the SR-20 but with ALL locatable frequencies.
Specifications
| Active Line Trace Frequencies* | 128 Hz, 1 kHz, 8 kHz, 33 kHz, 51 kHz, 93 kHz, 200 kHz, 262 kHz.** |
| Passive Power Trace | 50 Hz, 60 Hz, <4 kHz Broadband. |
| Passive Radio Trace | 4 kHz-15 kHz, 15 kHz-36 kHz. |
| Sonde Frequencies * | 16 Hz, 512 Hz, 640 Hz, 850 Hz, 8 kHz, 16 kHz, 33 kHz. |
| Power Source | 4 C-Cell batteries (included). |
| Battery Life | Approximately 16 hours. |
| Weight | 5.1 lbs. (2.3 kg). |
| Meets FCC Class A and EN 55022 Class A requirements. | |
| *30 user definable frequencies can be set from 10 Hz to 490 kHz. | |
| ** Up to 93 kHz for devices sold in Europe. |
|
CATALOG NUMBER
|
DESCRIPTION
|
Price
|
| 22163 | SeekTech SR-60 Utility Locator | 251,900.00 |
Accessories
|
CATALOG NUMBER
|
DESCRIPTION
|
Price
|
| 20973 | SeekTech 4” (100 mm) Inductive Signal Clamp | 40,400.00 |
| 21898 | SeekTech ST-305 Transmitter | 72,350.00 |
